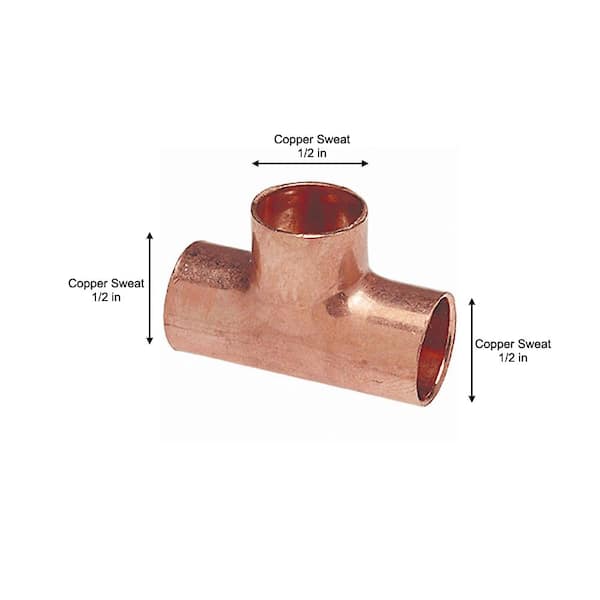

1/2 in. Copper Pressure All Cup Tee Fitting

(166)Questions & Answers (11)
$1.53
  • Features solder cups and a maximum working pressure of 722 PSI
  • Supplies branch line from main line in aboveground water supply
  • Ideal for potable water, A/C and refrigeration or medical gas
  • View More Details
Store
0 in stock
caret

Product Details

This 1/2 in. lead-free copper pressure tee provides a branch line from a main line in aboveground water connections. It is ideal for securing copper pipe in residential and commercial systems, such as potable water, air conditioning and refrigeration. It features solder cups and a maximum working pressure of 722 psi. This pressure tee's durable copper construction is low-maintenance and dezincification-resistant. It is reusable, ideal for sustainable projects.
  • 1/2 in. Inside Diameter and 0.625 in. Outside Diameter
  • Low maintenance, durable and reusable copper construction
  • For use in aboveground water lines
  • Provides a branch line from a main line
  • For use with copper piping
  • Features solder connections
  • Offers a 722 psi maximum working pressure
  • Dezincification resistant
  • Meets specifications ASME/ANSI B16.22 and MSS SP-104 or MSS SP-109; certified to NSF/ANSI 61
  • Note: Product may vary by store.
  • Return Policy
caret

Specifications

caret

Questions & Answers

11Questions
caret
Q:WHY HASN'T SOMEONE CORRECTED THE PRODUCT DETAILS FOR THIS "T" FITTING? IT SAYS THAT THE INSIDE DIAMETER IS 1/2 INCH WHICH IT IS NOT!!! THE ACTUAL INSIDE DIAMETER IS 5/8 INCH. I KNOW BECAUSE I BOUGHT SOME 1/2 INCH T FITTINGS AND A 5/8 DRILL BIT GOES IN.
by|Feb 5, 2023
1 Answer
Answer This Question

A:  Thank you for your inquiry on the Everbilt 1/2 in. Copper Pressure All Cup Tee Fitting. Copper fittings are sized by the Nominal pipe that they will accept, not on the inside diameter of the fitting itself. This ½” fitting accepts 1/2 in. Nominal pipe, which has an outside diameter of 5/8 in. If you have additional questions, you can reach a NIBCO Technical Services Advisor, M-F 8am - 5pm EST, by phone at (888) 446-4226.

by|Feb 7, 2023
    caret
    Q:What is the SKU number for three-quarter inch copper tees
    by|Jun 8, 2021
    3 Answers
    Answer This Question

    A:  Dear Valued Home Depot Customer, to better answer your question, please contact our HD.com customer service department at 1-800-466-3337 call any day between 6 a.m. and 2 a.m. EST, or call your local store, they can either answer your question or transfer you to your local store to answer your specific question.

    by|Jun 12, 2021

      A:  Store SKU #1002835579

      by|Jun 8, 2021

      A:  Fits and Sweats like it should.

      by|Oct 3, 2022
      caret
      Q:Will 1/2" thin walled conduit fit inside this tee? Using for a gardening project.
      by|Oct 31, 2020
      1 Answer
      Answer This Question

      A:  Thank you for your inquiry on the Everbilt 1/2 in. Copper Pressure Cup x Cup x Cup Tee Fitting. This fitting is only designed to be used with K, L, or M copper tube. If you have additional questions, you can reach a NIBCO Technical Services Advisor, M-F 8am - 5pm EST, by phone at (888) 446-4226.

      by|Nov 6, 2020
        caret
        Q:3/4 x 3/4x3, does this mean that all the sides are 3/4 or only two sides and one is 3 inches ? I am confused
        by|Apr 6, 2020
        4 Answers
        Answer This Question

        A:  Thank you for your inquiry on the Everbilt 3/4 in. Copper Pressure Cup x Cup x Cup Tee Fitting. We appreciate you for bringing it to our attention that there is a conflicting information and we are working to get it updated. This is tee is 3/4 in on all sides. If you have additional questions, you can reach a NIBCO Technical Services Advisor, M-F 8am - 5pm EST, by phone at (888) 446-4226.

        by|Jan 26, 2021
          1 found this answer helpful

          A:  Hi Tee, i purchased this copper tee and it's 3/4" on all sides. The description maybe was meant to read 3/4 x 3/4 x 3/4 as per photo The other posibility is that a 3" length of the tee end to end which is about right. If you're looking for a 3/4" copper tee this is it. Hope that answers your question

          by|Apr 7, 2020

            A:  All sides are 3/4".

            by|Jan 26, 2021
            1 found this answer helpful

            A:  All 3/4,.confusing because of error.

            by|Jan 26, 2021
              1 found this answer helpful
              Showing 1-4 of 11
              caret

              Customer Reviews

              4.7 out of 5
              (166)
              • 4.7
                out of 166 reviews
              • 89%recommend this product
              Filter by:
              Showing 1-10 of 166 reviews
              Sep 13, 2018
              This worked well for me, although when I began to fit it to my 1/2” pipe, it was a VERY snug fit,...
              This worked well for me, although when I began to fit it to my 1/2” pipe, it was a VERY snug fit, and I was wondering whether I would be able to mate the parts. There is not much tolerance for error, so if your companion fitting is not completely smooth and perfectly round or you lack sufficient space for a good trajectory to mate the parts, you could have some difficulty completing this installation. Fortunately it did work fine for me and it was easy to solder when properly cleaned and fluxed (see pictures).
              by
              • Recommended
              1 found this review helpful
              Oct 22, 2012
              Fits Well
              Installation was easy with Silver Solder. Fit's 1/2" Copper tubing well.
              by
              • DIY
              6 found this review helpful
              Feb 22, 2023
              by
              • Verified Purchase
              Feb 2, 2023
              Copper fitting seam to keep getting thinner & thinner....
              Copper fitting seam to keep getting thinner & thinner.
              by
              • Verified Purchase
              Jan 27, 2023
              by
              • Verified Purchase
              Jan 25, 2023
              We needed to make some sign holders for my daughter...
              We needed to make some sign holders for my daughter wedding out of copper pipe. She gave us the instructions and we headed for Home Depot in SLO where we were assisted by Michael Padilla in the copper pipe section. When I explained we are here from Montana and I have no tools to cut the copper pipe. He took the dimensions and cut every piece for us, about 14. My daughter loved them and they worked perfectly. Matt spent a lot of time doing this for us and was very cordial and polite while he worked. I don’t usually send comments, but in this case I felt like you should know.
              by
              • Verified Purchase
              Jan 25, 2023
              Sold individually is a plus. Did now want to purchase a bottle of these..
              Fitting at a reasonable price.
              by
              • Verified Purchase
              • Recommended
              Jan 25, 2023
              by
              • Verified Purchase
              Jan 25, 2023
              solid well built easy to solder, everything you'll need for...
              solid well built easy to solder, everything you'll need for a soldered on t connection
              by
              • Verified Purchase
              Jan 19, 2023
              by
              • Verified Purchase
              Showing 1-10 of 166 reviews
