#1 Home Improvement Retailer

Internet #206458286

Model #C712LFHD12

Store SKU #718835

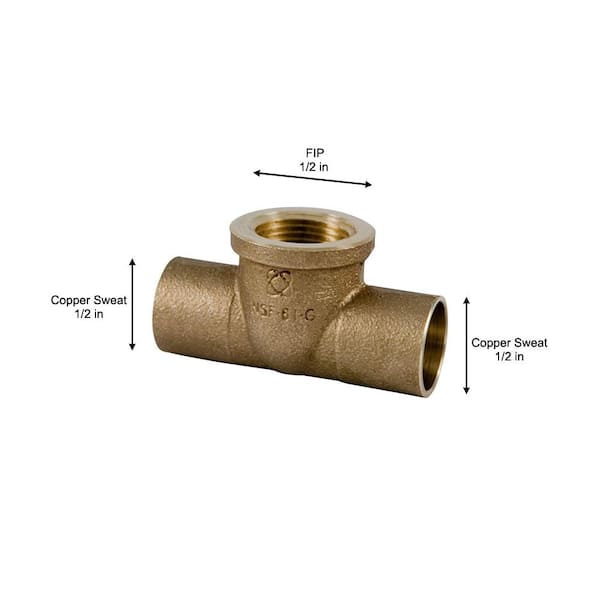

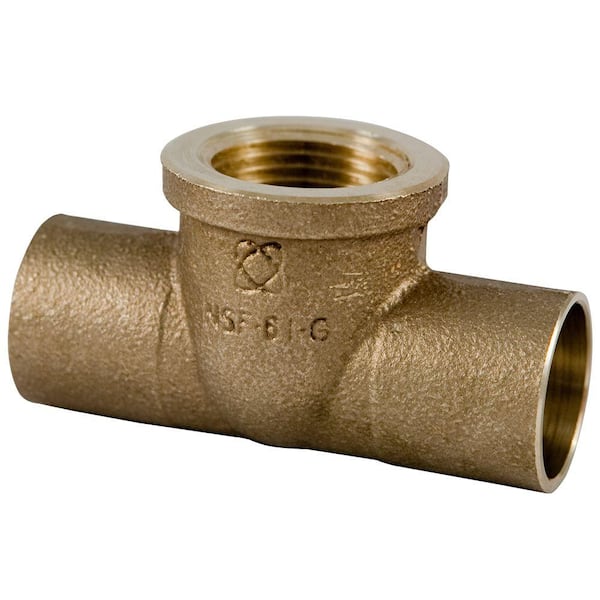

1/2 in. Forged Bronze Lead-Free Cup x Cup x FIP Tee Fitting

  • Idea for aboveground for water supply piping
  • Compatible with types L and M hard-temper copper tubing
  • Use to adapt from a solder connection to a threaded connection
  • See More Details

Frequently Bought Together

+
+
Price:

Product Overview

The NIBCO 1/2 in. lead-free bronze solder pressure tee is used in residential and commercial plumbing applications. The tee features solder cups on the run and female NPT threads on the branch. This fitting allows for a connection to be made in continuous pipeline and branch out to a different direction while adapting from a solder connection to a threaded connection.
  • For copper construction
  • Used with hard temper copper tubing, types L and M
  • Dezincification resistant
  • Features solder cups on the run and female NPT threads on the branch
  • Used in residential and commercial plumbing applications
  • Third-party certified to NSF/ANSI 61 annex G
  • 1/2 I.D. and 0.625 O.D.

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Bronze Fittings

current product
1/2 in. Forged Bronze Lead-Free Cup x Cup x FIP Tee Fitting
1/2 in. Bronze Silicon Alloy Lead-Free Pressure 90-Degree Drop Ear Cup X F Elbow3/4 in. x 1/8 in. x 3/4 in. Forged Bronze Lead-Free Cup x FIP x Cup Baseboard Tee Fitting3/4 in. Forged Bronze Lead-Free Cup x Cup x FIP Tee Fitting
BrandEverbiltEverbiltEverbiltEverbilt
Name1/2 in. Forged Bronze Lead-Free Cup x Cup x FIP Tee Fitting1/2 in. Bronze Silicon Alloy Lead-Free Pressure 90-Degree Drop Ear Cup X F Elbow3/4 in. x 1/8 in. x 3/4 in. Forged Bronze Lead-Free Cup x FIP x Cup Baseboard Tee Fitting3/4 in. Forged Bronze Lead-Free Cup x Cup x FIP Tee Fitting
Price
Ratings
(20)
(123)
(9)
(20)
Fitting 1 size1/2"1/2"3/4"3/4"
Fitting or Connector TypeTeeElbowTeeTee
ConnectivitySolderSolderSolderSolder
ApplicationNon-Potable Water,Potable WaterNon-Potable Water,Potable WaterNon-Potable Water,Potable WaterAir Conditioning,Non-Potable Water,Potable Water,Refrigeration
FeaturesCorrosion Resistant,Lead FreeCorrosion Resistant,Lead FreeCorrosion Resistant,Lead FreeCorrosion Resistant,Lead Free
Compatible Pipe MaterialCopperBronzeCopperCopper
View ProductView ProductView ProductView Product

Specifications

Dimensions

Fitting 1 size
1/2"
Fitting 2 size
1/2"
Fitting 3 size
1/2"
Product Height (in.)
0.778
Product Width (in.)
1.264
Triple Fitting Size
1/2" x 1/2" x 1/2"

Details

Application
Non-Potable Water,Potable Water
Color Family
Bronze
Color/Finish
Bronze
Compatible Pipe Material
Copper
Connection 1
Copper Sweat
Connection 2
Copper Sweat
Connection 3
FIP
Connectivity
Solder
Features
Corrosion Resistant,Lead Free
Fitting or Connector Type
Tee
Fitting/ Connector Collection
Copper
Material
Bronze
Maximum working pressure (psi)
400
Maximum Working Temperature (F)
400
Pack Size
1
Pipe or Fitting Product Type
Fittings & Connectors
Product Weight (lb.)
0.13
Reducing Fitting
No
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
The Manufacturer warrants to the Owner, for a period of 50 years from the date the warranty begins, that its properly installed Product will be free of failure as a result of defects in material or workmanship in manufacturing the Product.

Questions & Answers

3Questions4Answers

Please advise if both cups are 3/4" and the threaded tee is 1/2" NPT. Thank you.

Asked by Budman May 11, 2020
1
Answer

Thank you for your inquiry on the Everbilt 3/4 in. x 3/4 in. x 1/2 in. Forged Bronze Cup X Cup X FIP Tee Fitting. You are correct that the cups are 3/4 in. and the FPT is 1/2 in. If you have additional questions, you can reach a NIBCO Technical Services Advisor, M-F 8am - 5pm EST, by phone at (888) 446-4226.

What is the max pressure rating?

Asked by John January 27, 2019
1
Answer

Thank you for your inquiry on the max pressure rating for the 1/2 in. Forged Bronze C x C x F Tee. The answer is dependent on the water temperature range at which you will be using. To find the max pressure rating for the temperature range you will need, please refer to the "Rated Internal Working Pressure for Copper Fittings, PSI" table on page 42 of our Copper Fitting catalog located at http://www.nibco.com/Literature/. If you need further assistance, you can reach a NIBCO Technical Services Advisor, M-F 8am - 6pm EST, by phone at (888) 446-4226. Thank you!

what size is the threaded part is it 1/2 npt or 3/4 npt?

Asked by Augie July 5, 2016
2
Answers

1/2"
