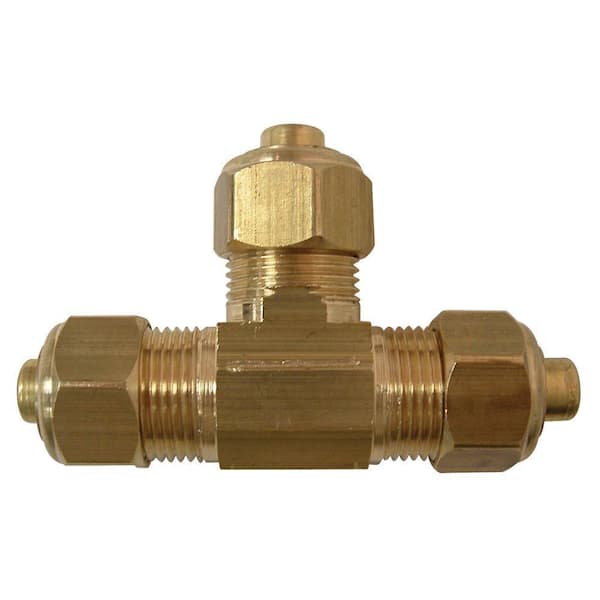

1/2 in. OD Compression Brass Tee Fitting

$1047
  • Designed for use in water, gas, or oil applications
  • Compatible with copper, brass, aluminum or plastic tubing
  • Overtightening can cause leaks
  • View More Details
Store
0 in stock
Text to Me

Product Overview

This compression tee is shaped like a "T" and allows for branch lines. It has 3 compression connections. Brass is durable, lead-free and corrosion resistant. This fitting conforms to NSF 61 and 372 and is registered in Mass.
  • 1-piece per package
  • LFA-214
  • Not for underground use
  • Do not overtighten
  • Use with copper, brass, aluminum or plastic tubing on gasoline, grease, oil, water
  • Not recommended for use with steel tubing
  • California residents

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Brass Fittings

Exclusive3/8 in. x 3/8 in. x 1/4 in. OD Compression Brass Tee Fitting
current product
Exclusive1/2 in. OD Compression Brass Tee Fitting
Exclusive3/4 in. FIP 90-Degree Brass Elbow FittingExclusive3/4 in. FIP Brass Tee Fitting
BrandEverbiltEverbiltEverbiltEverbilt
Name3/8 in. x 3/8 in. x 1/4 in. OD Compression Brass Tee Fitting1/2 in. OD Compression Brass Tee Fitting3/4 in. FIP 90-Degree Brass Elbow Fitting3/4 in. FIP Brass Tee Fitting
Price
$1017
$1047
$1105
$1205
Ratings
(120)
(120)
(106)
(110)
Fitting 1 size3/8"1/2"3/4"3/4"
Fitting or Connector TypeTeeTeeElbowTee
ConnectivityCompressionCompressionThreadedThreaded
ApplicationAir,Oil,Potable WaterAir,Oil,Potable WaterAir,Oil,Potable WaterAir,Oil,Potable Water
FeaturesCorrosion Resistant,Lead Free,ThreadedCorrosion Resistant,Lead Free,ThreadedCorrosion Resistant,Lead Free,ThreadedCorrosion Resistant,Lead Free,Threaded
Pack Size1111
Fitting/ Connector CollectionBrassBrassBrassBrass
Pipe or Fitting Product TypeFittings & ConnectorsFittings & ConnectorsFittings & ConnectorsFittings & Connectors
View ProductView ProductView ProductView Product

Specifications

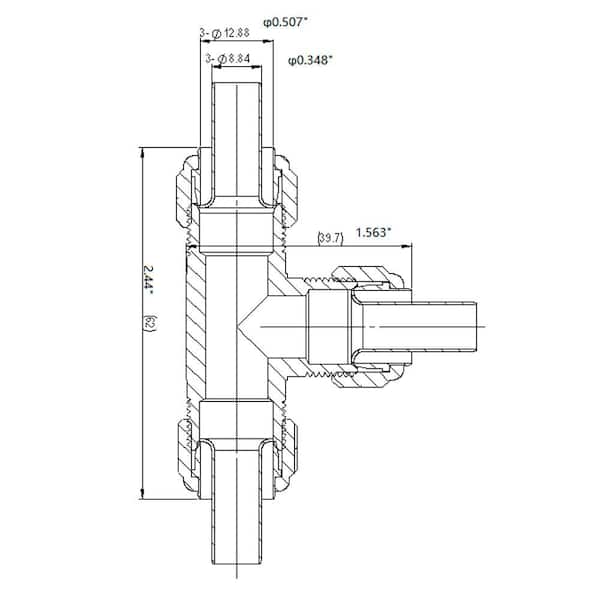

Dimensions

Assembled Depth (in.)
2.78 in
Assembled Height (in.)
1.78 in
Assembled Width (in.)
0.70 in
Fitting 1 size
1/2"
Fitting 2 size
1/2"
Fitting 3 size
1/2"
Product Height (in.)
.85
Product Width (in.)
2
Triple Fitting Size
1/2" x 1/2" x 1/2"

Details

Application
Air,Oil,Potable Water
Color Family
Brass
Color/Finish
Brass
Compatible Pipe Material
Multi-Purpose
Connection 1
Comp
Connection 2
Comp
Connection 3
Comp
Connectivity
Compression
Features
Corrosion Resistant,Lead Free,Threaded
Fitting or Connector Type
Tee
Fitting/ Connector Collection
Brass
Material
Brass
Maximum working pressure (psi)
400
Maximum Working Temperature (F)
250
Pack Size
1
Pipe or Fitting Product Type
Fittings & Connectors
Product Weight (lb.)
0.2248692
Reducing Fitting
No
Returnable
90-Day

Warranty / Certifications

Certifications and Listings
NSF Certified
Manufacturer Warranty
1 Year Limited

Questions & Answers

Typical questions asked about products:

  • Is the product durable?
  • Is the product easy to use?
  • What are the dimensions of the product?

Customer Reviews

  • 4.5
    out of 120 reviews
  • 76% recommend this product
Filter by:
Showing 1-10 of 120 reviews
Perfect for me and my wife's washer- dryer combo install near the kitchen sink.
Perfect for me and my wife's washer- dryer combo install near the kitchen sink.
by
  • Verified Purchase
  • Recommended
1 person found this helpful
I bought one of these for a kitchen sink project. I was installing an instant hot water dispense...
I bought one of these for a kitchen sink project. I was installing an instant hot water dispenser. I have done similar installations in 4 or 5 previous houses in 40 years of marriage. I had trouble with this part. The sleeve is designed differently from traditional implementations of this part. Instead of being the double angle shape, this sleeve has an angle on one side and a flat surface on the other side. The flat surface goes toward the nut. This part is labeled EVERBILT, with a product number LFA-113. I was unable to get the sleeve to go over the 1/4 OD copper tubing. I bought a second identical part in case the troubles were caused by a flaw in the first part. The second part also would not go over the tubing. So I went to a different retailer, bought a different brand part which had the sleeve with the angle on both sides. I had no trouble with the different brand, it was easy to install, and I had no leaks. Product managers change a product either to cut costs, or to create differentiation. This unusual shaped sleeve was probably an attempt to solve a basic problem. For a compression part with the traditional dual angle sleeve, it is easy for the sleeve to go missing. Changing the design like this makes the sleeve so it is semi-captive in the nut. It is less likely to go missing. For me, this new twist on the compression sleeve was not helpful.
by
    Exactly what I needed to run two refrigerators from one water/ice line in our company office. I ...
    Exactly what I needed to run two refrigerators from one water/ice line in our company office. I used 3 lines: one from the wall to this T, then one line for each refrigerator. My only unmet wish would be for a shorter water line: they seem to only come in 10-15 foot lengths. It doesn't hamper performance noticeably, it's just extra line that has to be coiled up behind the refrigerators. The Tee fitting went on well, no leaks the first time, nothing else needed (no teflon tape, no other fittings beyond what is provided). This part was recommended to me by a helpful Home Depot employee at my local store. The nuts and compression inserts provided in the bag are only needed for copper line - the icemaker lines you typically buy already have attachment nuts on them and do not need the little compression inserts.
    by
    • DIY
    • Verified Purchase
    • Recommended
    1 person found this helpful
    Rating provided by a verified purchaser...
    Rating provided by a verified purchaser
    by
      It did exactly what it was supposed to do and...
      It did exactly what it was supposed to do and there were no leaks.
      by
        by
          by
            by
              by
                What you display and what you stock are quite different....
                What you display and what you stock are quite different. The one I bought was a LFA-12. I had a captive ferrule with the nut. THEE FERRULE WOULD NOT SLIDE ONTO THE TUBING. I fideled with the thing for at least 2 hours and wound up damaging the ferrule.With another nut/ferrule combo i managed to get it on the tubing a small amount. After tightening the nut to wherein the tubing felt somewhat captive, i was able to pull the tubing straight out. Upon attempting to reseat the tubing again, I torqued the nut until it squeeked. Obviously much too tight. Once again the tubing came out easily. Went to the store and as usual, you were out of this type of fitting as well as the older version with a "loose" ferrule. My rating not poor , but terrible with a negative 10 star rating
