#1 Home Improvement Retailer

Internet #204620480

Model #CP607HD12

Store SKU #138641

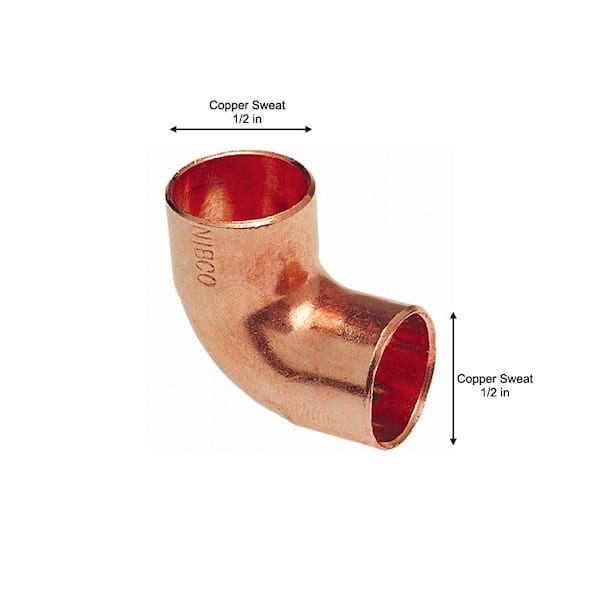

1/2 in. x 1/2 in. Copper 90-Degree Cup x Cup Elbow (10-Pack)

  • Made from a high quality copper
  • Turns pipes 90 degrees
  • For use in both residential and commercial environments
  • See More Details

Frequently Bought Together

+
+
Price:

Product Overview

The 1/2 in. x 1/2 in. lead-free wrot copper solder pressure 90° close rough elbow is used in residential and commercial systems such as potable water, air conditioning and refrigeration. The 90° elbow features solder cups and a close rough radius. The fitting provides a means of changing the pipeline direction 90°. It is used when velocity is not a problem.
  • High quality copper
  • Changes the direction of piping 90°
  • Solder connections
  • 1/2 in. x 1/2 in. lead-free wrot copper solder pressure elbow is durable and low maintenance
  • Third-party certified to NSF/ANSI 61 and 372
  • Third-party certified to NSF U.P.
  • 1/2 I.D. and 0.625 O.D.

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Copper Fittings

Exclusive1/2 in. Copper Pressure Cup x FIP Female Adapter Fitting
current product
1/2 in. x 1/2 in. Copper 90-Degree Cup x Cup Elbow (10-Pack)
1/2 in. Straight Copper Coupling Fitting with Rolled Tube Stop (5-Pack)3/4 in. Copper 90-Degree Cup x Cup Elbow (10-Pack)
BrandEverbiltEverbiltThe Plumber's ChoiceEverbilt
Name1/2 in. Copper Pressure Cup x FIP Female Adapter Fitting1/2 in. x 1/2 in. Copper 90-Degree Cup x Cup Elbow (10-Pack)1/2 in. Straight Copper Coupling Fitting with Rolled Tube Stop (5-Pack)3/4 in. Copper 90-Degree Cup x Cup Elbow (10-Pack)
Price
Ratings
(34)
(160)
(5)
(160)
Fitting 1 size1/2"1/2"1/2"3/4"
Fitting or Connector TypeAdapterElbowCouplingElbow
ConnectivitySolderCompressionSolderSolder
Pack Size110510
ApplicationNon-Potable Water,Potable WaterNon-Potable Water,Potable WaterAir Conditioning,Potable Water,RefrigerationAir Conditioning,Potable Water,Refrigeration
FeaturesUnderground RatedCorrosion Resistant,Lead FreeCorrosion ResistantCorrosion Resistant,Lead Free
MaterialCopperCopperCopperCopper
Fitting/ Connector CollectionCopperCopperCopperCopper
Bend Degree 90 Degree 90 Degree
View ProductView ProductView ProductView Product

Specifications

Dimensions

Double Fitting Size
1/2" x 1/2"
Fitting 1 size
1/2"
Fitting 2 size
1/2"
Product Depth (in.)
1.31
Product Height (in.)
0.75
Product Width (in.)
6.5

Details

Application
Non-Potable Water,Potable Water
Bend Degree
90 Degree
Color Family
Copper
Color/Finish
Copper
Compatible Pipe Material
Copper
Connection 1
Copper Sweat
Connection 2
Copper Sweat
Connectivity
Compression
Features
Corrosion Resistant,Lead Free
Fitting or Connector Type
Elbow
Fitting/ Connector Collection
Copper
Material
Copper
Maximum working pressure (psi)
722
Maximum Working Temperature (F)
250
Pack Size
10
Pipe or Fitting Product Type
Fittings & Connectors
Product Weight (lb.)
0.38
Reducing Fitting
No
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
The Manufacturer warrants to the Owner, for a period of 50 years from the date the warranty begins, that its properly installed Product will be free of failure as a result of defects in material or workmanship in manufacturing the Product.

Questions & Answers

21Questions11Answers

what's the difference between the colors

Asked by Michelle April 24, 2021
1
Answer

Thank you for your inquiry on the Everbilt 3/4 in. x 3/4 in. Copper Pressure 90-Degree Cup x Cup Elbow Fitting. There is no difference in the functionality of the product featured throughout the photos. A 360-spin image has been added that is a different piece that was not prepped with a solvent to provide the bright copper color as you see in the other images. If you have additional questions, you can reach a NIBCO Technical Services Advisor, M-F 8am - 5pm EST, by phone at (888) 446-4226.

Picture shows Nibco brand but HD says Everbilt??

Asked by CH April 23, 2021
1
Answer

Thank you for your inquiry on the Everbilt 3/4 in. Copper Pressure 45-Degree Cup x Cup Elbow Fitting. Everbilt is a private label of Home Depot of which NIBCO is proud to be a manufacturer. Depending on the market you are making your purchase, you may receive a different manufacturer of this piece. If you have additional questions, you can reach a NIBCO Technical Services Advisor, M-F 8am - 5pm EST, by phone at (888) 446-4226.

what's the difference between sweat x sweat and cup x cup?

Asked by AlexM May 18, 2020
1
Answer

Thank you for your inquiry on the Everbilt 1/2 in. x 1/2 in. Copper 90-Degree Sweat x Sweat Elbow (10-Pack). In this case The Home Depot has named their Everbilt product as sweat which is the application versus the fitting end itself. This is a cup x cup end connection. Thank you for bringing this to our attention and we will work with The Home Depot team to update for clarity. If you have additional questions, you can reach a NIBCO Technical Services Advisor, M-F 8am - 5pm EST, by phone at (888) 446-4226.

What's the difference between cup x cup and sweat x sweat?

Asked by AlexM May 18, 2020
1
Answer

Thank you for your inquiry on the Everbilt 1/2 in. x 1/2 in. Copper 90-Degree Sweat x Sweat Elbow (10-Pack). Sweat which is the application versus the fitting end itself. This is a cup x cup end connection. If you have additional questions, you can reach a NIBCO Technical Services Advisor, M-F 8am - 5pm EST, by phone at (888) 446-4226.

I purchased the NIBCO grand 3/4" x 3/4" 90 elbows in store, and was wondering if they are rated f...

Asked by PW June 24, 2019
1
Answer

Thank you for your inquiry on the 3/4 in. x 3/4 in. Copper 90-Degree Cup x Cup Pressure Elbow. NIBCO wrot copper fittings are suitable for use in underground (buried) applications where allowed by local code. You should check with your local code enforcement department before using them in that application. If you have additional questions, you can reach a NIBCO Technical Services Advisor, M-F 8am - 6pm EST, by phone at (888) 446-4226.

how do i instal this

Asked by steve May 13, 2019
1
Answer

Thank you for the inquiry on the 3/4 in. x 1/2 in. Copper Pressure 90-Degree C x C Reducing Elbow. This fitting should be should be soldered in with 3/4 in. tube and 1/2 in. tube. Prior to installation, or If you have additional questions, you can reach a NIBCO Technical Services Advisor, M-F 8am - 6pm EST, by phone at (888) 446-4226. Thank you!

what is the ID of the elbow?

Asked by mash March 23, 2019
1
Answer

Thank you for your inquiry on the 3/8 in. Copper 90-Degree C x C Elbow. The ID of this material is .502-.506. If you need further assistance, you can reach a NIBCO Technical Services Advisor, M-F 8am - 6pm EST, by phone at (888) 446-4226. Thank you!

is it lead free

Asked by Bernard March 18, 2019
2
Answers

It is copper so it may contain trace amounts of lead but it is a copper fitting

Is this coppor coated or pure copper metal. Or any other metal added?

Asked by Mohan January 6, 2019
1
Answer

Pure copper

Can it be used on refridgerant lines using 410 freon?

Asked by Tom December 8, 2018
1
Answer

For most applications, I’m sure the Freon should be no problem. NIBCO lab test copper fittings down to -20F. For additional information and more specific information regarding your application, please contact cs-technicalservices@nibco.com or call 888-446-4226 Monday thru Friday 6:00 AM- 7:00 PM.

1/2 in. x 1/2 in. Copper 90-Degree Cup x Cup Elbow (10-Pack) - page 2

Customer Reviews

  • 4.5
    out of 160 reviews
  • 82% recommend this product
Filter by:
Showing 1-10 of 160 reviews
Not much to worry about here, but there were no surprises --- quick trip to Home Depot, back home...
Not much to worry about here, but there were no surprises --- quick trip to Home Depot, back home, job done in 30 minutes. Perfect!
by Steve
These fittings require very little prep time, and are always my choice for simple and complex plu...
These fittings require very little prep time, and are always my choice for simple and complex plumbing projects!
by RVG
Copper Elbow
Fits ½” copper plumbing pipe well. No issues with fitment, leaks, etc… Makes a clean 90 degree turn.
by RednexToyz
4 people found this helpful
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by HomeDepotCustomer
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by HomeDepotCustomer
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by HomeDepotCustomer
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by HomeDepotCustomer
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by HomeDepotCustomer
These fittings are horrible. 9 out of 10 fittings fit way too tight (or don't even fit at all aft...
These fittings are horrible. 9 out of 10 fittings fit way too tight (or don't even fit at all after flux) on prepared pipe. Save yourself the headache and time and use a different brand!
by track0x5
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by HomeDepotCustomer
Showing 1-10 of 160 reviews
