#1 Home Improvement Retailer

Internet # 205821932

Model # 108-003EB

Store SKU # 641758

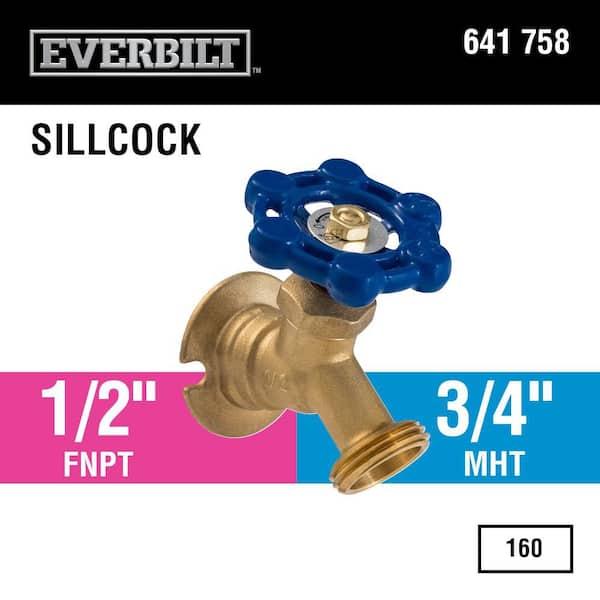

1/2 in. x 3/4 in. FIP x MHT Brass Flanged Threaded Sillcock Valve

$9.23
  • Sillcocks provide efficient flow control to outdoor locations
  • Multi-turn handle provides an easy way to operate valve flow
  • Ideal for applications in low-pressure water systems
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy
caret

Product Details

The Everbilt 1/2 in. x 3/4 in. FIP x MHT Brass Flanged Threaded Sillcock Valve is the ideal garden hose valve for commercial and residential outdoor water systems. Constructed from brass for strength and durability, the sillcock offers a notched flange for a secure wall connection and offers an easy operation mechanism with the multi-turn handle. The 3/4-in outlet fits most standard outdoor hoses allowing for maximum outdoor utility.
  • Maximum working pressure of 125 psi
  • Heavy construction for strength and durability
  • 6-point cast-iron handle
  • 3/4-in hose thread outlet complies with ANSI B.1.20.7
  • Oversized notched flange for stable installation
  • NSF 61 compliant
  • Threaded inlet complies with ANSI B1.20.1
  • Notched flange mounts flush to walls for stable installation
  • Return Policy
  • California residents

Additional Resources

From the Manufacturer

caret

Specifications

Dimensions: H 2.75 in, W 1.88 in, D 2.32 in

Dimensions

Inlet Diameter (In.)1/2Outlet Diameter (In.)3/4
Product Depth (in.)2.32 inProduct Height (in.)2.75 in
Product Length (in.)3.38 inProduct Width (in.)1.88 in

Details

ApplicationNon-Potable WaterCompatible Pipe MaterialCopper
ConnectionFIP x MHTFeaturesThreaded
Indoor/OutdoorIndoor, OutdoorMaterialBrass
Maximum Pressure (PSI)125Maximum Working Temperature (F)140
Pack Size1Product Weight (lb.)0.45 lb
Returnable90-DayThrough Wall Length (in.)2
Valve TypeSillcock

Warranty / Certifications

Manufacturer Warranty1 year
caret

Questions & Answers

16Questions
caret
Q:Can you replace the valve seat when it starts to leak?
by|Aug 31, 2023
1 Answer
Answer This Question

A:  Hello, unfortunately that component cannot be repaired when it begins to leak, and the best suggestion is to replace the entire valve. We hope this helps with your project.

by|Aug 31, 2023
    caret
    Q:When installing this, how can I keep a space to use a wrench on pipe I'm screwing the valve onto to keep that pipe from turning, without leaving a gap between the flange and the wall after it is installed?
    by|Aug 10, 2023
    1 Answer
    Answer This Question

    A:  Hello, we recommend checking with your local plumber on the best installation method. If the pipe is installed inside the wall, it should not turn while the valve is being installed. We hope this helps with your project.

    by|Aug 10, 2023
      caret
      Q:what's the normal R & R cost and who do i contact, a regular plumber?
      by|Apr 24, 2023
      1 Answer
      Answer This Question

      A:  Hello John, this depends on many factors that we are unable to account for. If your valve is needing repair, we recommend calling a local plumber to ensure a water-tight and long-lasting project. We hope this helps with your project.

      by|Apr 24, 2023
        caret
        Q:What size washer does this spigot take? I need to get some more replacements.
        by|Feb 7, 2023
        1 Answer
        Answer This Question

        A:  Hello Richie, this valve does not come with any external washers for valve installation. If the internal valve washers are worn down, then the best recommendation is to replace the valve as the process of disassembling the valve will likely cause the valve to break where it is installed. We hope this helps with your project.

        by|Feb 7, 2023
          Showing 1-4 of 16
          caret

          Customer Reviews

          4.6 out of 5
          (172)
          • 4.6
            out of 172 reviews
          • 96% recommend this product
          Filter by:
          Showing 1-10 of 172 reviews
          Works great and is repairable .
          I have replaced many water faucets over the years and have tried both styles that allow only a quarter turn ball valve type or the gate valve type and I like the gate valve one because I have had every one of the quarter turn ball valves eventually start to fail faster than the gate valve style and you can replace parts in it but you can't in the ball valve ones .
          by
          • Recommended
          Very well built and easy to operate. Old faucet was spraying more water than was going into the h...
          Very well built and easy to operate. Old faucet was spraying more water than was going into the hose. Quick inexpensive fix. I liked it so much I changed my second one.
          by
          • DIY
          • Verified Purchase
          • Recommended
          1 found this review helpful
          by
            by
              by
                by
                  by
                    Works like a charm no problems here slimmer profile than my old one
                    by
                      by
                        by
                          Showing 1-10 of 172 reviews

                          Compare Similar Items

                          current product

                          Connection

                          FIP x MHT

                          Sweat x MHT

                          Sweat x Sweat

                          FIP x MHT

                          Compatible Pipe Material

                          Copper

                          Copper

                          Copper

                          Copper

                          Application

                          Non-Potable Water

                          Non-Potable Water, Water Supply

                          Non-Potable Water

                          Non-Potable Water

                          Valve Type

                          Sillcock

                          Sillcock

                          Sillcock

                          Sillcock

                          Material

                          Brass

                          Brass

                          Brass

                          Brass
