#1 Home Improvement Retailer

Internet # 300096273

Model # 801979

Store SKU # 709660

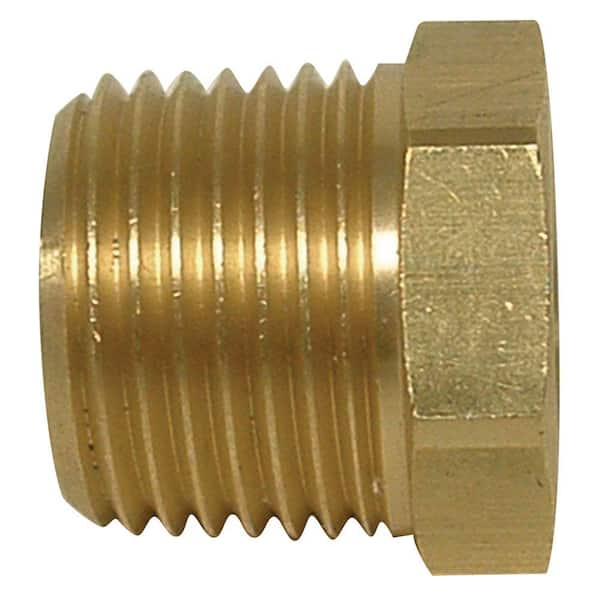

1/4 in. MIP x 1/8 in. FIP Brass Bushing Fitting

$3.97
  • Dual threaded male and female ends
  • Use with brass, copper and iron pipe
  • Applications include water, oil, natural gas and air lines
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy

Product Details

About This Product

The construction of this brass hex brushing is durable, corrosion resistant and lead-free. Use it to connect pipes of different sizes with different threaded ends. One end has male pipe threads and the other end has female pipe threads. The hex head makes the bushing easier to grip and turn with a wrench. This fitting conforms to NSF 61 and 372 and is registered in Mass.

Highlights

  • 1-piece per package
  • LFA-738
  • Use with brass, copper and iron pipe
  • Not for underground use
  • For applications involving water, oil, natural gas and air lines
  • Tapered pipe threads
  • Solid brass, corrosion resistant material
  • Return Policy
  • California residents
     see Prop 65 WARNINGS

Product Information

Internet # 300096273

Model # 801979

Store SKU # 709660

Additional Resources

Shop All Everbilt

Specifications

Dimensions

Double Fitting Size

1/4" x 1/8"

Fitting 1 size

1/4"

Fitting 2 size

1/8"

Fitting Size Dimensions

1/4" x 1/8"

Product Length (in.)

0.709 in

Single Fitting Size

1/4"

Details

Application

Air, Oil, Potable Water

Color Family

Brass

Color/Finish

Brass

Compatible Pipe Material

Multi-Purpose

Connection 1

MIP

Connection 2

FIP

Connectivity

Threaded

Features

Corrosion Resistant, Lead Free

Fitting or Connector Type

Bushing

Fitting/ Connector Collection

Brass

Material

Brass

Maximum working pressure (psi)

150

Maximum Working Temperature (F)

212

Pack Size

1

Pipe or Fitting Product Type

Fittings & Connectors

Product Weight (lb.)

0.03 lb

Reducing Fitting

Yes

Returnable

90-Day

Warranty / Certifications

Manufacturer Warranty

1 Year Limited

Questions & Answers

21Questions
caret
Q:Would this enable me to connect my 3/8" water hose to my 1/4" water supply outlet?
by|Jan 26, 2024
0 Answer
Answer This Question
caret
Q:Will this adapter cause my 3400 psi pressure washer to lose pressure? And will the adapter be able to handle the pressure generated by my 3400 pressure washer?
by|Oct 15, 2023
0 Answer
Answer This Question
caret
Q:I notice it says maximum working pressure 150 psi, would it be acceptable to use it at the end of my power washing wand to reduce to the size at the end of a ball valve ?
by|Jun 15, 2023
1 Answer
Answer This Question

A:  Yes. This Everbilt 3/8 in. MIP x 1/4 in. FIP Brass Bushing Fitting should meet that application.

by|Aug 9, 2023
    1 found this answer helpful
    caret
    Q:I am a home DIYer. What is the size and pitch for an NPT TAP that I would need to purchase to make a thread in a brass hole, and then thread in the 1/2? MIP Side of this fitting into this new thread. Whats the pitch for the 1/2? MIP and 1/4? FIP sides?
    by|Apr 22, 2023
    1 Answer
    Answer This Question

    A:  For the Everbilt 1/2 in. MIP x 1/4 in. FIP Brass Bushing Fitting, the NPT tap size should match the size thread you are attempting to create. ½ in. for ½ in and ¼ in. for 1/4 in as it relates to taps. For the drill bit, ¼ in. requires a 7/16 in. drill bit. ½ in. requires 23/32 drill bit. ¼ in. will have 18 threads per inch and a pitch of .05556. ½ in. will have 14 threads per inch and a pitch of .07143.

    by|Apr 25, 2023
      Showing 1-4 of 21

      Customer Reviews

      4.7 out of 5

      • 4.7 out of 428 reviews
      • 87% recommend this product
      Filter by:
      Showing 1-10 of 428 reviews
      Perfect for reducing from 3/8 ths to 1/4 inch
      I added a pressure regulator/dryer to my compressor setup & needed to adapt my hose connection to fit the regulator. This fit the bill perfectly
      by
      • Verified Purchase
      It was as described...
      It was as described
      by
      • Verified Purchase
      Junk: because of the parting lines and the way the threads are cut, this bushing will never seal:...
      Junk: because of the parting lines and the way the threads are cut, this bushing will never seal: not with teflon tape, not with more teflon tape, not with any pipe dope (teflon or otherwise), not at 20 psi water pressure...
      by
        6 found this review helpful
        by
        • Verified Purchase
        by
        • Verified Purchase
        Great price and selection.
        by
        • Verified Purchase
        by
        • Verified Purchase
        by
        • Verified Purchase
        by
        • Verified Purchase
        This product is a lot thinner then 2023 version and I damaged the first one I used.
        by
        • Verified Purchase
        Showing 1-10 of 428 reviews
