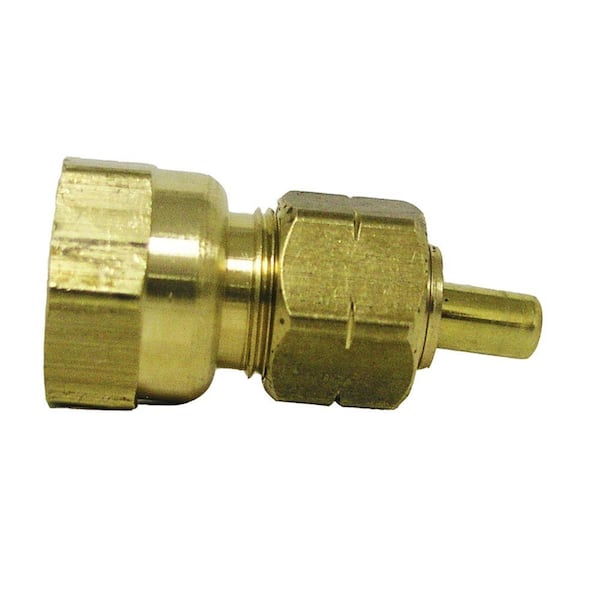

1/4 in. OD Compression x 1/4 in. FIP Brass Adapter Fitting

$5.75
  • Best for low to medium pressure installs for water, gas or oil
  • Use with copper, brass, aluminum, thermoplastic and plastic tube
  • Overtightening can cause leaks
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy
Product Details

About This Product

This plumbing pipe coupling is lead free and made of durable, corrosion resistant brass. It's used to connect 2 lengths of pipe either of the same size or from 1 size to reduce to another size. Couplings are best used in low to medium pressure installs and can be used for water, gas and oil. Easy to install for both the PRO and DIYer. Complies with NSF 61 and 372 and is registered in Mass.

Highlights

  • 1-piece per package
  • LFA-16
  • Use with copper, brass, aluminum, thermoplastic and plastic tubing
  • Do not use with steel tubing
  • Comes with insert
  • Overtightening can cause leaks
  • Return Policy
  • California residents
     see Prop 65 WARNINGS

Product Information

Internet # 207176825

Model # 801189

Store SKU # 584926

Additional Resources

Shop All Everbilt

Specifications

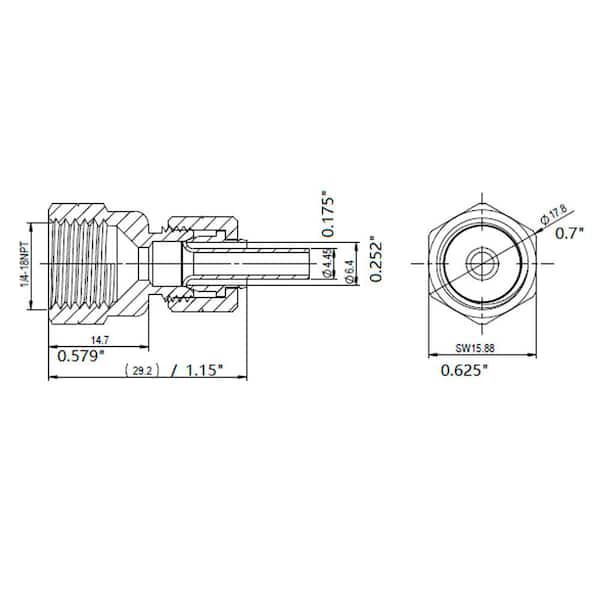

Dimensions

Double Fitting Size

1/4" x 1/4"

Fitting 1 size

1/4"

Fitting 2 size

1/4"

Fitting Size Dimensions

1/4" x 1/4"

Product Length (in.)

0.7 in

Single Fitting Size

1/4"

Details

Application

Air, Oil, Potable Water

Color Family

Brass

Color/Finish

Brass

Compatible Pipe Material

Multi-Purpose

Connection 1

Comp

Connection 2

FIP

Connectivity

Compression

Features

Corrosion Resistant, Lead Free, Threaded

Fitting or Connector Type

Coupling

Fitting/ Connector Collection

Brass

Material

Brass

Maximum working pressure (psi)

150

Maximum Working Temperature (F)

250

Pack Size

1

Pipe or Fitting Product Type

Fittings & Connectors

Product Weight (lb.)

0.0529104 lb

Reducing Fitting

No

Returnable

90-Day

Warranty / Certifications

Manufacturer Warranty

1 Year Limited

Questions & Answers

8Questions
caret
Q:Does the 1/2" FIP need a gasket for assembly onto sink basin
by|May 25, 2023
1 Answer
Answer This Question

A:  Without further information we would recommend the use of thread tape is sufficient for this application for the Everbilt 1/4 in. OD Compression x 1/2 in. FIP Brass Adapter Fitting.

by|Jan 14, 2024
    1 found this answer helpful
    caret
    Q:Which adapter should be used on steel piping (1/2" NPT to 1/2" Compression)?
    by|Jan 18, 2023
    1 Answer
    Answer This Question

    A:  This Everbilt 1/2 in. OD Compression x 1/2 in. FIP Brass Adapter Fitting will work if the ½” NPT you are referring to is male.

    by|Feb 3, 2023
      caret
      Q:Which way does the ferule go on the copper tubing
      by|Jan 14, 2022
      1 Answer
      Answer This Question

      A:  For the Everbilt 1/4 in. OD Compression x 1/4 in FIP Brass Adapter Fitting, please refer to the installation instructions as there is a difference between older and newer styles.

      by|Aug 13, 2023
        1 found this answer helpful
        caret
        Q:I know how the nut & insert works but which way does the compression fitting go .
        by|Jul 6, 2021
        1 Answer
        Answer This Question

        A:  The adapter fitting, which is the side that is 3/8” FIP, that should be installed first. Then on the compression side you would install the nut and ferrule on the tube with the threads facing towards the end of the tube where you are installing on the fitting. Then use the insert inside the tube if using a soft tube, such as vinyl. The tube should be inserted until it hits the stop inside the compression side. Then slide the nut and ferule down to the fitting and tighten per instructions. The compression is the threaded part and the nut with the ferule in between them.

        by|Aug 16, 2023
          1 found this answer helpful
