#1 Home Improvement Retailer

Internet #300534069

Model #SUP54-HD

Store SKU #1001092915

Store SO SKU #1002154909

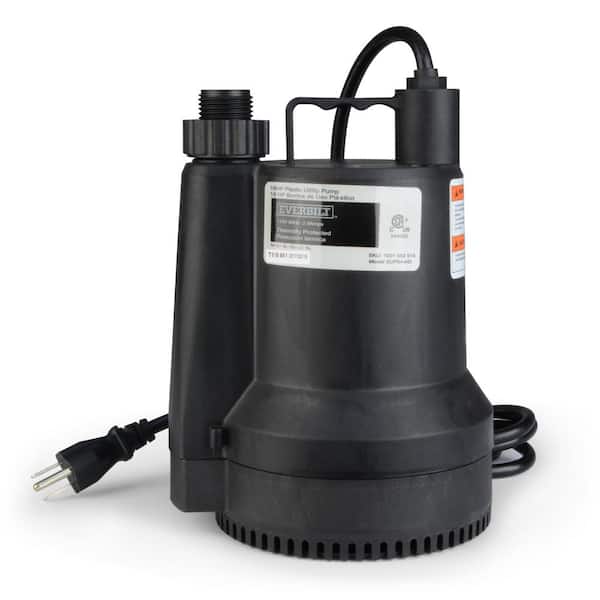

1/6 HP Plastic Submersible Utility Pump

  • Used to pump water from window wells, spas, tubs, ponds, etc.
  • Corrosion resistant thermoplastic, manual on/off operation
  • Oil cooled motor, high pumping capacity (1680 GPH)
  • See More Details

Frequently Bought Together

+
+
Price:

Product Overview

EVERBILT Brand Banner
This is a Submersible Utility pump.
This pump is made of Thermoplastic material.
This pumps dimensions are 6.3 in. Depth x 9.06 in. Height x 5.51 in. Width.
The discharge flow rate of this pump @ 0 ft. is 28 GPM.
This pump has a horsepower of 1/6 hp.
This pumps voltage is 115v.
This pump has a vertical lift of 20 feet.
The warranty on this pump is 1 Years. View more details by clicking on "Warranty" under info & guides.
Illustration may vary from actual product.
The Everbilt 1/6 HP submersible utility pump designed is ideal for use in most areas where unwanted water gathers. It can be totally submersed in water. The pump can pump down to 3/8 in. from flat surfaces.

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Submersible Utility Pumps

1/6 HP Submersible Utility Pump
current product
Best Seller1/6 HP Plastic Submersible Utility Pump
Top Rated1/4 HP Submersible Utility Pump KitTop Rated1/2 HP Cast Iron, Portable Transfer Utility Pump
BrandFlotecEverbiltEverbiltWayne
Name1/6 HP Submersible Utility Pump1/6 HP Plastic Submersible Utility Pump1/4 HP Submersible Utility Pump Kit1/2 HP Cast Iron, Portable Transfer Utility Pump
Price
Ratings
(122)
(571)
(46)
(239)
Discharge Flow @ 0 ft. (gallons/hour)1470168025201450
Housing MaterialThermoplasticThermoplasticThermoplasticCast-Iron
Voltage115v115v115v115v
View ProductView ProductView ProductView Product
EVERBILT Brand Banner
This is a Submersible Utility pump.
This pump is made of Thermoplastic material.
This pumps dimensions are 6.3 in. Depth x 9.06 in. Height x 5.51 in. Width.
The discharge flow rate of this pump @ 0 ft. is 28 GPM.
This pump has a horsepower of 1/6 hp.
This pumps voltage is 115v.
This pump has a vertical lift of 20 feet.
The warranty on this pump is 1 Years. View more details by clicking on "Warranty" under info & guides.
Illustration may vary from actual product.

Specifications

Dimensions

Product Depth (in.)
6.3 in
Product Height (in.)
9.06 in
Product Width (in.)
5.51 in

Details

Amperage (amps)
2.9
Cord Length (ft.)
8
Discharge Flow @ 0 ft. (gallons/hour)
1680
Discharge Flow @ 0 ft. (gallons/min)
28
Discharge Flow @ 10 ft. (gallons/hour)
1212
Discharge Flow @ 10 ft. (gallons/min)
20
Features
Corrosion Resistant,Submersible
Head Pressure (ft.)
25
Housing Material
Thermoplastic
Included
No Additional Items Included
Maximum Discharge Flow (gallons/hour)
1680
Maximum Horsepower (hp)
1/6
Maximum Horsepower (hp)
0.167
Maximum Pressure (psi)
8.66
Maximum Working Temperature (F)
104
Minimum working temperature (F)
33
Outlet Connection
Threaded male
Pack Size
1
Power Type Required
AC
Product Weight (lb.)
6.14 lb
Pump Switch Type
Switchless
Returnable
90-Day
Vertical Lift (ft.)
20
Voltage
115v

Warranty / Certifications

Manufacturer Warranty
1 year

Questions & Answers

67Questions22Answers

Can this pump be indefinitely left submerged in clean water when not in use?

Asked by Robert May 8, 2021
3
Answers

The thermoplastic construction will allow the pump to be submerged underwater with no issues. Thanks.

Can I get a replacement plastic housing?

Asked by PoolOwner March 23, 2021
2
Answers

Please contact our customer service team at 844-883-1872. Thanks.

does it have an automatic shut off

Asked by LittleJohn31 March 17, 2021
4
Answers

You have an option to purchase a float switch to make your pump automatically come on when water is detected at a readable level. The switch kit is available in the same area as the pumps. I recommend the switch kit for sump systems to keep the sump area empty. It can also be used to shut off a pump when water level in a tank or pool has reached a level too low to remove any more water without cavitating.

How do I keep it from clogging? I want to use in a window well. My previous "clog-resistant" pump...

Asked by willedchilled March 10, 2021
2
Answers

Make a screen circle out of screen wire. You can purchase this in our window department. Wrap it around the pump loosely leaving about two inches bigger than pump diameter. The pump can take small debris without damage but larger debris can clog or plug pump and cause damage. I also have screen under the pump made of chicken wire. I use the chicken wire section to hold the fine screen shape making a basket.

Does the ever built 1/6 JP sump pump have an automatic switch off? In other words if the water in...

Asked by Evan February 24, 2021
4
Answers

No. The motor will burn up if you leave it unattended and it runs out of water to pump. It works quite well but you need to monitor it's progress and turn it off when you hear it making sucking sounds because of low water.

Can this be used for descaling a tankless water heater?

Asked by LC December 7, 2020
1
Answer

Yes. We would recommend that once the descaling solution is ran through the pump for the process, then be sure to flush the pump out with just tap water to ensure no corrosive damage is done while it is stored away for the next task you see fit. Thanks.

How many gallons can it pump per minute

Asked by Dan November 27, 2020
1
Answer

Dan, This pump is rated to pump up to 28 gallons per minute. However, please note that this number varies depending on total lift, type of discharge hose used, and so on. Please contact our experts at 844-883-1872 for additional service or information. Thanks.

is there a float i can attach to this

Asked by dave November 9, 2020
1
Answer

Yes. A float can be attached for an "automatic" on/off application. Please contact our experts at 844-883-1872. Thanks.

What ki d of oil does this pump take

Asked by Randlu1204 September 27, 2020
1
Answer

This pump does not need any oil added to run properly. This pump is designed with oil to help keep the motor running cool, but nothing the customer will ever have to worry about. Please contact us at 844-883-1872 if you have further questions or concerns.

Is it ok to attach an inline filter to the discharge hose? I mean like an Aquacrest garden hose f...

Asked by JM August 26, 2020
3
Answers

JM, To quickly answer your question we would say that yes, a filter could be used. However this utility pump is not designed to pump/pass large solids through the intake and discharge. With that being said, We aren't understanding the use for the filter on the discharge. Please contact our customer service team at 844-883-1872 so we can gain additional knowledge into your situation and we can help find a solution. Thanks.

1/6 HP Plastic Submersible Utility Pump - page 2

Customer Reviews

  • 4.2
    out of 571 reviews
  • 77% recommend this product
Filter by:
Showing 1-10 of 571 reviews
Very easy setup. Only wish it had a built in...
Very easy setup. Only wish it had a built in sensor to turn itself on/off based on water level. You need to monitor its operation otherwise the motor may overheat.
by Desmo
Response from Everbilt Customer ServiceAug 4, 2020
Thanks for the feedback and review.
1 person found this helpful
This pump is excellent to use it like a temporary...
This pump is excellent to use it like a temporary shower. Good product, I recomended it.
by DAHO21
Response from Everbilt Customer ServiceJul 14, 2020
Awesome. Thanks for the feedback and details on your application.
1 person found this helpful
Drained the entire 10,000 gallon pool without any problems!...
Drained the entire 10,000 gallon pool without any problems!
by HomeDepotCustomer
Response from Everbilt Customer ServiceJun 11, 2020
Great. Thanks for letting us know about your experience with this pump.
2 people found this helpful
Wonderful, very handy to use, & efficient for heavy duty work.
Wonderful, very handy to use, & efficient for heavy duty work.
by Dnice
Response from Everbilt Customer ServiceDec 19, 2019
Thank you for taking the time to leave your review and comments. We appreciate all information from customers.
2 people found this helpful
I was very impressed with this product.
I was very impressed with this product.
by Papi
Response from Everbilt Customer ServiceSep 12, 2019
Papi,
Thank you for your review and comment.
Cost is fairly priced. Worked great for a flooded portion of a backyard. Did not clog up and pump...
Cost is fairly priced. Worked great for a flooded portion of a backyard. Did not clog up and pumped water out effectively...
by HomeDepotCustomer
Response from Everbilt Customer ServiceMay 9, 2019
Awesome! Thank you, Everbilt Customer Service
1 person found this helpful
Already have one of these pumps. Bought a second one because of the amount of water on my pool co...
Already have one of these pumps. Bought a second one because of the amount of water on my pool cover. The first one worked so well, it was a no brainer to purchase a second one.
by Me
Response from Everbilt Customer ServiceMar 23, 2019
Me,
Thanks for leaving your comments. We are glad you appreciate these pumps!
Everbilt Customer Service
1 person found this helpful
I needed a new pump for my pool and this...
I needed a new pump for my pool and this one fits the sump and works great.
by CJ
Response from Everbilt Customer ServiceMay 5, 2021
Hello CJ,
The pump you are review is a utility pump. Not a pool pump or sump pump. We are glad you have found the product to be worthy of a 4-star review, but please reference the owners manual for proper uses, etc. Or contact us at 844-883-1872. Thanks.
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by HomeDepotCustomer
Response from Everbilt Customer ServiceMay 5, 2021
Thanks for leaving your review.
It stop working after two hours...
It stop working after two hours
by HomeDepotCustomer
Response from Everbilt Customer ServiceMay 5, 2021
How was this pump being used? This pump is designed for water transfer jobs, flooded areas, an so on , however it is not designed for large debris, excessive muddy water. Please contact our professionals at 844-883-1872 for additional help. Thanks.
Showing 1-10 of 571 reviews
