- Ideal for potable water, air conditioning and refrigeration
- Adapts a solder connection to a threaded connection
- Maximum working pressure of 494 PSI
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Product Details
About This Product

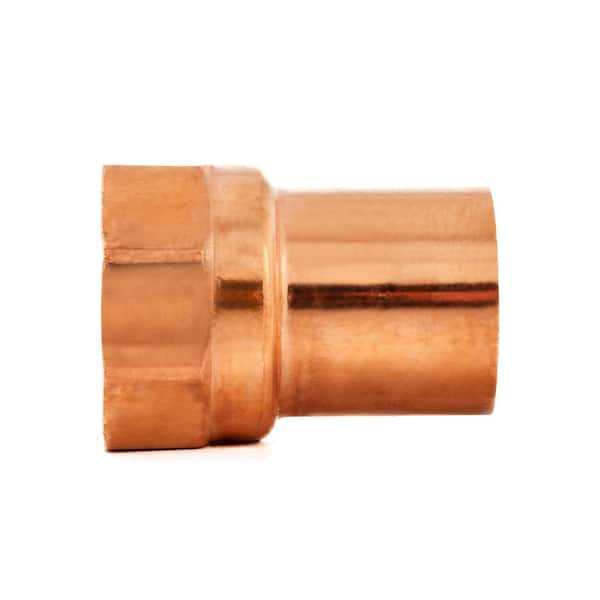

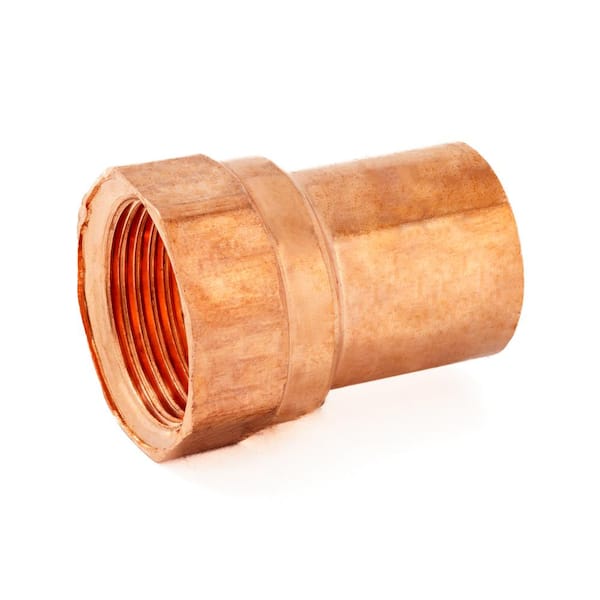

The Everbilt 1 in. lead-free wrought copper solder pressure female adapter is used in residential and commercial systems such as potable water, air conditioning and refrigeration. The female adapter features a solder cup and female NPT thread. These fittings provide a means for adapting a solder connection to a threaded connection. In addition to its inherent qualities of beauty, durability and low maintenance, copper's reusability makes it an ideal application in sustainable projects.
Highlights
- 1 in. Inside Diameter and 1.125 in. Outside Diameter
- Made of copper
- Used aboveground for water supply piping
- Adapts to standard male pipe threads
- Cup x FIPT connections
- Maximum working pressure of 494 PSI
- De-zincification resistant to protect mechanical strength
- Note: Product may vary by store.
- Return Policy
Product Information
Specifications
Dimensions
Double Fitting Size | 1" x 1" | Fitting 1 size | 1" |
|---|---|---|---|
Fitting 2 size | 1" | Fitting Size Dimensions | 1" x 1" |
Product Length (in.) | 1.95 in | Single Fitting Size | 1" |
Details
Application | Non-Potable Water, Potable Water | Color Family | Copper |
|---|---|---|---|
Color/Finish | Copper | Compatible Pipe Material | Copper |
Connection 1 | Copper Sweat | Connection 2 | FIP |
Connectivity | Solder | Features | Lead Free, Underground Rated |
Fitting or Connector Type | Adapter | Fitting/ Connector Collection | Copper |
Material | Copper | Maximum working pressure (psi) | 494 |
Maximum Working Temperature (F) | 250 | Pack Size | 1 |
Pipe or Fitting Product Type | Fittings & Connectors | Product Weight (lb.) | 0.236 lb |
Reducing Fitting | No | Returnable | 90-Day |
Warranty / Certifications
Manufacturer Warranty | The Manufacturer warrants to the Owner, for a period of 50 years from the date the warranty begins, that its properly installed Product will be free of failure as a result of defects in material or workmanship in manufacturing the Product. |
|---|
Questions & Answers
Is this lead free?
Thank you for your inquiry on the 3/4 in. Copper Pressure Cup x FIP Female Adapter Fitting. Yes, this fitting is lead free. If you have additional questions, you can reach a NIBCO Technical Services Advisor, M-F 8am - 5pm EST, by phone at (888) 446-4226.
can you use this fitting directly on a galvanized pipe?
Thank you for your inquiry on the 1/2 in. Copper Pressure Cup x FIP Female Adapter Fitting. For use in potable water service, it is not recommended to attach this fitting directly to galvanized pipe. If you have additional questions, you can reach a NIBCO Technical Services Advisor, M-F 8am - 5pm EST, by phone at (888) 446-4226.
You should use a dielectric union when connecting fittings or pipes made of dissimilar materials in any plumbing system. In your case, use a 3/4" Galvanized Steel FIP x Sweat Dielectric Union. You can see a picture of this item on the Home Depot website.
I made a mistake on an answer a few minutes ago. It looks like you are using1/2" fittings so use a 1/2" dielectric union. The pictures on HD website will give you an idea. Bring one of your fittings to the store to make sure you buy the right size union.
Photo shows tube being sweated to fitting with tube inserted into fitting. Dim's of 1/2" Cu tubing (actually 1/2" pipe) are same as fitting (5/8" OD) therefore tube would not fit as shown, requiring a union. Which is correct, photo or dim's?
Thank you for your inquiry on the Everbilt 1/2 in. Copper Pressure Cup x FIP Female Adapter Fitting. The drawing is only indicating the nominal size and end connection type rather than the actual measurement. The 1/2 in. nominal side will accept both 1/2 in. nominal copper tubing or 5/8 in. OD copper tubing as they are the same copper tubing. If you have additional questions, you can reach a NIBCO Technical Services Advisor, M-F 8am - 5pm EST, by phone at (888) 446-4226.
This question is about the 1/2 in. Copper Pressure Cup x FIP Female Adapter Fitting, C603HD12. Is the female part TAPERED or STRAIGHT? (I want to install it on a straight thread IPS faucet stem.) If straight, how seal? Wicking?
Thank you for your inquiry on the Everbilt 1/2 in. Copper Pressure Cup x FIP Female Adapter Fitting. These are tapered NPT pipe threads and will not work with straight threads. We do not have a solder adaptor with straight threading. If you have additional questions, you can reach a NIBCO Technical Services Advisor, M-F 8am - 5pm EST, by phone at (888) 446-4226.
Is the FIP straight or tapered?
Thank you for your inquiry on the Everbilt 1-1/4 in. Copper Pressure Cup x FIP Female Adapter Fitting. This fitting is NPT tampered pipe thread. If you have additional questions, you can reach a NIBCO Technical Services Advisor, M-F 8am - 5pm EST, by phone at (888) 446-4226.
What is the max temperature this fitting can handle? The specifications section lists 100 degrees, is this correct?
Thank you for your inquiry on the Everbilt 3/4 in. Copper Pressure Cup x FIP Female Adapter Fitting. The temperature listing is for the temperature allowance at maximum pressure. This fitting is rated to 400°F, but the pressure rating at that temperature is 291 PSI. If you have additional questions, you can reach a NIBCO Technical Services Advisor, M-F 8am - 5pm EST, by phone at (888) 446-4226.
Can this be used on brass Delta Multichoice valve w/ IPS male threads to connect a sharkbite push-fit connector? Can I use pipe dope & teflon tape w/o having to sweat the copper?
The threaded side should have Teflon tape or thread goop. The other side needs to be sweated. I can't answer the other part of your question.
Thank you for your inquiry on the Everbilt 1/2 in. Copper Pressure Cup x FIP Female Adapter Fitting. Since you have the female solder cup x female thread, the answer would be no. The female threads are NPT so they will thread onto a Male IPS thread but the solder cup is to go over copper tubing and not into a Sharkbite fitting. You would want a 603-2 that is fitting/male copper pipe size x FNPT in order to have a size that will be copper tube size to fit into a Sharkbite fitting. You would have to verify with Sharkbite that the fitting end was long enough to make full insertion. For the threaded joint, we only recommend using PTFE/Teflon tape and to never use both pipe dope and tape on the same joint. If you have additional questions, you can reach a NIBCO Technical Services Advisor, M-F 8am - 5pm EST, by phone at (888) 446-4226.
If an adapter connection type is "CUP" is it safe to conclude that since a CUP 'accepts pipe' that it is female? In other words only a male fitting will be compatible with the CUP connections, including pipe.
Thank you for your inquiry on the Everbilt 1/2 in. Copper Pressure Cup x FIP Female Adapter Fitting. Yes, the Cup/C end would be a female solder cup that will accept either 1/2 in. nominal copper tubing or a 1/2 in. nominal male spigot end fitting. If you have additional questions, you can reach a NIBCO Technical Advisor, M-F - 8am - 5pm EST, by phone at (888) 446-4226.
