Model # EFSUB7-122HD

Internet #205618055

Store SKU #1001092261

Everbilt 3/4 HP Submersible 2-Wire Motor 10 GPM Deep Well Potable Water Pump
0858726005010

Everbilt

3/4 HP Submersible 2-Wire Motor 10 GPM Deep Well Potable Water Pump

  • Deep well pump provides 600 GPH of drinking water from 100'-175'
  • Provides plenty of potable water for typical single family homes

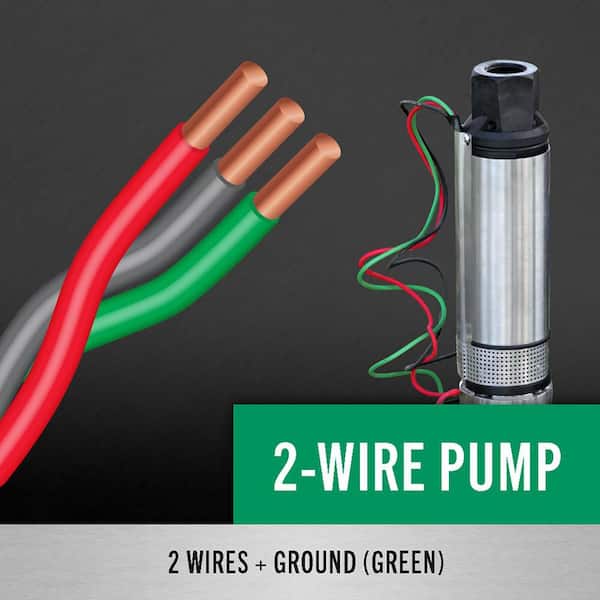

  • Pro grade motor, 230V, 2 power wires plus a ground wire
$36900 /each
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

  • Deep well pump provides 600 GPH of drinking water from 100'-175'
  • Provides plenty of potable water for typical single family homes
  • Pro grade motor, 230V, 2 power wires plus a ground wire
The Everbilt 3/4 HP Submersible 2-Wire well pump is corrosive resistant being manufactured with stainless steel and thermoplastic components. It includes a built in check valve. The pump's warranty is 3-years from date of purchase.
  • Designed to pump potable water from wells up to 100 to 150 ft. D
  • Pumps 10 GPM with a range of 9 to 11 GPM depending on pumps depth in the well
  • 2-wire installation does not require a control box
  • Uses 230-Volt electrical service
  • Water cooled submersible motor
  • Make sure to choose the correct pump based on your needs

    Well Pump

  • Click here for more information on Electronic Recycling Programs

Product Overview

  • Deep well pump provides 600 GPH of drinking water from 100'-175'
  • Provides plenty of potable water for typical single family homes
  • Pro grade motor, 230V, 2 power wires plus a ground wire
Model #: EFSUB7-122HD
Sku #: 1001092261
Internet #: 205618055

The Everbilt 3/4 HP Submersible 2-Wire well pump is corrosive resistant being manufactured with stainless steel and thermoplastic components. It includes a built in check valve. The pump's warranty is 3-years from date of purchase.

California residents: see   Proposition 65 information

  • Designed to pump potable water from wells up to 100 to 150 ft. D
  • Pumps 10 GPM with a range of 9 to 11 GPM depending on pumps depth in the well
  • 2-wire installation does not require a control box
  • Uses 230-Volt electrical service
  • Water cooled submersible motor
  • Make sure to choose the correct pump based on your needs

    Well Pump

  • Click here for more information on Electronic Recycling Programs

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Customers Also Compared These

Price
$358.00 /each
$369.00 /each
$369.00 /each
$447.00 /each
Name 1/2 HP Submersible 2-Wire Motor 10 GPM Deep Well Potable Water Pump 3/4 HP Submersible 2-Wire Motor 10 GPM Deep Well Potable Water Pump 3/4 HP Submersible 3-Wire Motor 10 GPM Deep Well Potable Water Pump 1 HP Submersible 2-Wire Motor 10 GPM Deep Well Potable Water Pump
Brand Everbilt Everbilt Everbilt Everbilt
Ratings (7) (16) (12) (12)
Horsepower (hp) .5 .75 .75 1
View Product View Product View Product View Product

Specifications

Dimensions

Maximum Pumping Depth (ft.)
150
Product Depth (in.)
27.56
Product Height (in.)
4
Product Width (in.)
4

Details

Control Box Included
No
Head Pressure (ft.)
40
Horsepower (hp)
.75
Housing Material
Stainless steel
Inlet Connection
Barb/rib
Maximum Discharge Flow (gallons/hour)
660
Maximum Discharge Pressure (psi)
50
Outlet Connection
Threaded female
Product Weight (lb.)
22.56lb
Returnable
90-Day
Run-Dry Capable
No
Self-Priming
Yes
Wiring Configuration
2-Wire

Warranty / Certifications

Certifications and Listings
CSA Listed
Manufacturer Warranty
3 Years

Specifications

Dimensions

Maximum Pumping Depth (ft.)
150
Product Depth (in.)
27.56
Product Height (in.)
4
Product Width (in.)
4

Details

Control Box Included
No
Head Pressure (ft.)
40
Horsepower (hp)
.75
Housing Material
Stainless steel
Inlet Connection
Barb/rib
Maximum Discharge Flow (gallons/hour)
660
Maximum Discharge Pressure (psi)
50
Outlet Connection
Threaded female
Product Weight (lb.)
22.56lb
Returnable
90-Day
Run-Dry Capable
No
Self-Priming
Yes
Wiring Configuration
2-Wire

Warranty / Certifications

Certifications and Listings
CSA Listed
Manufacturer Warranty
3 Years

Questions & Answers

Does this pump have a thermal switch?

Asked by: megz1011
Motor is marked as having a surge arrestor and thermal protection.
Answered by: longhair
Date published: 2017-02-22

How many feet of wire does this pump come with?

Asked by: flymike
Mine came with approx. 3 ft of 14 AWG wire.
Answered by: longhair
Date published: 2017-10-25

difference between 3 wire & 2 wire pump?

Need help deciding which to buy and need one stocked in Woodland, Re3dbluff or Redding area for immediate pickup
Asked by: aloharich
2 wire uses 2 power leads and a ground wire. Motor uses 230 vac 60 HZ single phase plus a motor ground. Does not require a control box. 3 wire reuires a control box and is for deeper wells.
Answered by: longhair
Date published: 2017-09-29

Is this 110vlt or 230vlr

Asked by: KW
Mine was 230 VAC 60 HZ single phase.
Answered by: longhair
Date published: 2017-09-29
  • y_2017, m_11, d_20, h_20CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.3
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_23
  • loc_, sid_205618055, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 101ms
  • QUESTIONS, PRODUCT

Customer Reviews

3/4 HP Submersible 2-Wire Motor 10 GPM Deep Well Potable Water Pump is rated 4.2 out of 5 by 16.
Rated 5 out of 5 by from Works great Perfect, works amazing. Pressure switch is set for 60 on and 80 off and it builds that 80psi like a hot knife in butter!
Date published: 2017-08-08
Rated 5 out of 5 by from Works very well.. Only installed within two months.. it xpectations.does meet expextations...exce... Works very well.. Only installed within two months.. it xpectations.does meet expextations...exceeds very quiet..
Date published: 2017-08-19
Rated 4 out of 5 by from So far it seems to be working fine, time will tell on how durable it is. So far it seems to be working fine, time will tell on how durable it is.
Date published: 2017-09-19
Rated 5 out of 5 by from 5 Star Review Rating provided by a verified purchaser
Date published: 2017-07-13
Rated 5 out of 5 by from Quaity Submersible Water Pump This 3/4" submersible is made of quality materials and was very easy to install once the old pump was pulled. This unit is replacing a 1/2" water pump for a well that supplies all the water to the house. Shrink-wrapping two wire, one pipe connection then lowering it down into position is ccomplished with easy. This pump produces great water pressure from a deep well. This is a quality product and when you depend on a pump for water, you want a product that will stand the test of time. Time will tell me, but the pump is working great now.
Date published: 2015-08-03
Rated 4 out of 5 by from High Quality When it comes to pumps, durability and performance are truly key. This particular pump is made for an area with a relatively shallow water table. The head space on this pump is200ft, so your water table would need to be at about the 150ft level or so. Performance wise, this pump scores well. It’s got a low current draw and nice output pressure. Durability wise, I’m impressed by the construction of the pump. It’s heavy, so there are a lot of metal parts in there. The construction welds are all very good and it integrates a series of screens and filters to help keep it running for a good long time. Seems good quality construction, but of course you can never really tell until it’s been in the ground for years and years.
Date published: 2015-08-10
Rated 5 out of 5 by from I purchased this pump to replace one that failed after 20+ years. This pump was the best quality,... I purchased this pump to replace one that failed after 20+ years. This pump was the best quality, hp rating and warranty for the price I could find. Many vendor's pumps have 1 year warranty. This one has 3 year. Pump well made and solid quality even though motor made in China. Only in service 3 days but operation, flow and pressure are great. Pressure recovery time and water volume better than original pump with same flow rating at same location and depth. Very satisfied so far and expecting years of service. Store personnel very helpful, especially Kristy Anderson at Cornelius, NC store. Stock was low on this pump but she volunteered to check warehouse, find pump and hold at customer service for me to pickup. She had to run a long way while I was on the phone waiting. She went above and beyond to help me. My home was desperate for water that this pump would cure. All of this is why I bought this pump at Home Depot rather than one at Lowe's which is only 1/4 mile away. Well done. If this serves me for years, I will be a 100% satisfied customer.
Date published: 2017-02-22
Rated 4 out of 5 by from Works as Advertised The pump was installed at a depth of 100 feet and has worked as advertised for two weeks.
Date published: 2015-07-19
