Internet #204620217

Model #C633WHD34

Store SKU #682663

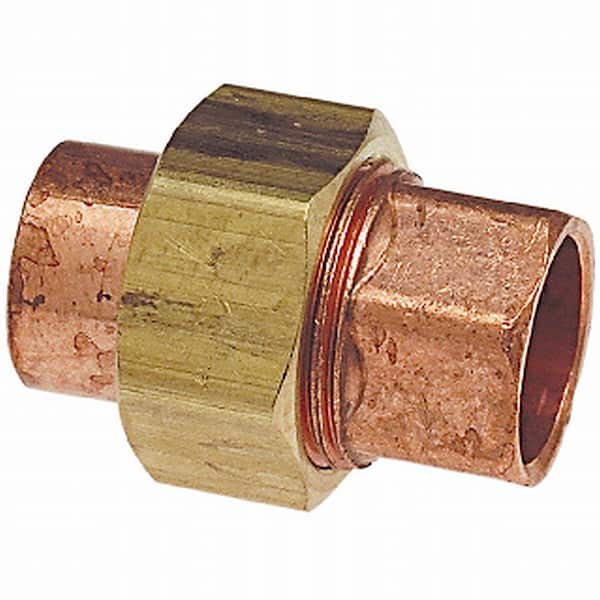

3/4 in. Copper Pressure Cup x Cup Union Fitting

  • Designed for use with aboveground water supply piping
  • Designed for use with L and M hard temper copper tubing
  • Perfect for air conditioning and refrigeration uses
  • See More Details

Frequently Bought Together

+
+
Price:
$727

Product Overview

Use this 3/4 in. copper pressure comp x comp union in residential and commercial applications, such as potable water, air conditioning and refrigeration. Ideal for L and M hard-temper copper tubing, this durable union is equipped with solder cups and dezincification-resistance. This fitting’s maximum working pressure is 582 PSI. This union enables line repair without damage and can be removed without cutting supply tubing.
  • For copper construction
  • Used with types L and M hard-temper copper tubing
  • Used aboveground for water supply piping
  • Allows for disassembly without cutting supply tubing
  • Comp x Comp Union
  • Maximum working pressure of 582 PSI
  • Ideal for potable water, air conditioning and refrigeration

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Copper Fittings

3/4 in. x 3/4 in. x 1/2 in. Copper Pressure Cup x Cup x Cup Reducing Tee Fitting
current product
3/4 in. Copper Pressure Cup x Cup Union Fitting
3/4 in. Copper 90-Degree Sweat x Sweat Elbow (10-Pack)3/4 in. Copper Pressure Cup x MIP Male Adapter Fitting
BrandEverbiltEverbiltEverbiltEverbilt
Name3/4 in. x 3/4 in. x 1/2 in. Copper Pressure Cup x Cup x Cup Reducing Tee Fitting3/4 in. Copper Pressure Cup x Cup Union Fitting3/4 in. Copper 90-Degree Sweat x Sweat Elbow (10-Pack)3/4 in. Copper Pressure Cup x MIP Male Adapter Fitting
Price
$385
$727
$1076
/bag
$1198
Ratings
(18)
(189)
(142)
(9)
Fitting 1 size3/4"3/4"3/4"3/4"
Fitting or Connector TypeTeeUnionElbowAdapter
ConnectivitySolderSolderCompressionSolder
Pack Size11101
ApplicationNon-Potable Water,Potable WaterNon-Potable Water,Potable WaterNon-Potable Water,Potable WaterNon-Potable Water,Potable Water
FeaturesCorrosion ResistantCorrosion Resistant,Lead FreeCorrosion ResistantCorrosion Resistant,Lead Free
Fitting/ Connector CollectionCopperCopperCopperCopper
MaterialCopperCopperCopperCopper
Bend Degree 90 Degree
View ProductView ProductView ProductView Product

Specifications

Dimensions

Double Fitting Size
3/4" x 3/4"
Fitting 1 size
3/4"
Fitting 2 size
3/4"
Product Length (in.)
1.927

Details

Application
Non-Potable Water,Potable Water
Color Family
Copper
Color/Finish
Copper
Compatible Pipe Material
Copper
Connection 1
Copper Sweat
Connection 2
Copper Sweat
Connectivity
Solder
Features
Corrosion Resistant,Lead Free
Fitting or Connector Type
Union
Fitting/ Connector Collection
Copper
Material
Copper
Maximum working pressure (psi)
582
Maximum Working Temperature (F)
250
Pack Size
1
Pipe or Fitting Product Type
Fittings & Connectors
Product Weight (lb.)
0.279
Reducing Fitting
No
Returnable
180-Day

Warranty / Certifications

Manufacturer Warranty
The Manufacturer warrants to the Owner, for a period of 50 years from the date the warranty begins, that its properly installed Product will be free of failure as a result of defects in material or workmanship in manufacturing the Product.

Questions & Answers

14Questions49Answers

How do you stop this union from leakiing?

Asked by SteveC October 19, 2015
8
Answers

Replace it.

Can this product be installed underground?

Asked by WH June 7, 2018
6
Answers

Can be don't don't advise you doing so as the soil will work against you when you try to open it in the future.

who is the manufacturer?

Asked by tomasaur March 28, 2016
5
Answers

This is a Chinese unit. No telling the manufacturer even though there is a name on it.

Is there another way of connecting the copper union to the copper pipe besides sweating it?

Asked by arne January 27, 2017
5
Answers

Shark bite

Can this be used on water pipes

Asked by mike June 16, 2018
5
Answers

yes, that is what I did.

Can this be used for gas application?

Asked by Tony January 16, 2016
5
Answers

No

Are you suppose to solder them

Asked by Johnny October 16, 2016
5
Answers

Yes! Both ends. You do need to know how to solder.

Can this be used for air compressor applications. Max temp is approximately 350F at 150 PSI. Need...

Asked by QK February 27, 2018
4
Answers

Yes if installed properly but would go with a higher strength then soldier like a brazing material to be on the safe side especially if you go higher then 150.

Can this union be used with 1/2in soft copper tubing

Asked by Joe58 January 31, 2016
3
Answers

Yes. Soft copper Soft (or ductile) copper tubing can be bent easily to travel around obstacles in the path of the tubing. While the work hardening of the drawing process used to size the tubing makes the copper hard or rigid, it is carefully annealed to make it soft again; it is therefore more expensive to produce than non-annealed, rigid copper tubing. It can be joined by any of the three methods used for rigid copper, and it is the only type of copper tubing suitable for flare connections. Soft copper is the most popular choice for refrigerant lines in split-system air conditioners and heat pumps. Rigid copper Rigid copper is a popular choice for water lines. It is joined using a sweat, roll grooved, compression or crimped/pressed connection. Rigid copper, rigid due to the work hardening of the drawing process, cannot be bent and must use elbow fittings to go around corners or around obstacles. If heated and allowed to cool in a process called annealing, rigid copper will become soft and can be bent/formed without cracking.

Is this for 1/2" copper pipe (5/8" OD) or is it for 1/2" OD pipe?

Asked by Rich August 15, 2015
3
Answers

Simple question and a complicated answer. 5/8" OD. What is the difference between L and M copper pipe? Type L and Type M copper pipe. ... But for normal “in the wall” household plumbing, Type M copper pipe is just fine. You may be surprised to find two types of copper pipe on the home center shelf, Type L and Type M. The difference is the wall thickness of the pipe and therefore the pressure it can handle. Standard Copper Tubing Dimensional Reference Select Mechanical or Inflatable Pipe Plugs based on the below tubing ID and along with the pressure to be blocked Nominal Pipe Size inches O.D. I.D. Wall Thickness Type OD K* L** M*** DWV**** K L M DWV 1/4 0.375 0.305 0.315 - - 0.035 0.030 - - 3/8 0.500 0.402 0.430 0.450 - 0.049 0.035 0.025 - 1/2 0.625 0.527 0.545 0.569 - 0.049 0.040 0.028 -

3/4 in. Copper Pressure Cup x Cup Union Fitting - page 2

Customer Reviews

  • 190 Customer Reviews
  • 3.5 out of 5 stars overall
50% of customers recommended.
Overall Ratings
5star-icon(97)
4star-icon(18)
3star-icon(11)
2star-icon(6)
1star-icon(58)
Sort By:
It is great for assembling new valves
It is great for assembling new valves
Was this helpful?
0
0
Works totally fine. Used the flux before soldering. Also, i put some ptfe tape on the threads of ...
Works totally fine. Used the flux before soldering. Also, i put some ptfe tape on the threads of the union. So, no leaks.
Was this helpful?
0
0
Excellent
Excellent
Was this helpful?
0
0
Agreed with most others comments, the machining and seat geometry are not the best. First attempt...
Agreed with most others comments, the machining and seat geometry are not the best. First attempt at pressuring the system revealed a very minor drip from it. Tightened it some more with big wrenches and it held fine.
Was this helpful?
2
0
It worked for me...
I banged up the seating surfaces during the install and had to lap it with steel wool to get the seating surfaces to mate... With a little care and torque the leaking eventually stopped making for a perfect fit...
Was this helpful?
0
0
Philadelphia, Pa
Super easy install, leaks from fitting.
Ease of installation :
5
Quality :
1
Value :
1
Had to repair a pipe that had a slow flow of water to it only option was to install this or a sharkbite Because I was going to be soldering in the rest of the pipes went with this it has a very very small leak from the threaded and nut meet. I am now going to need to depressurize a whole system just to loosen it and try adding pipe dope to help seal it.
Was this helpful?
7
0
This part I did not need so I returned it....
This part I did not need so I returned it. But everything else worked just perfect.
Was this helpful?
0
0
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
Was this helpful?
0
0
Taking them back to Home Depot because they leaked no...
Taking them back to Home Depot because they leaked no matter how tight you tightened them.
Was this helpful?
0
0
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
Was this helpful?
0
0
