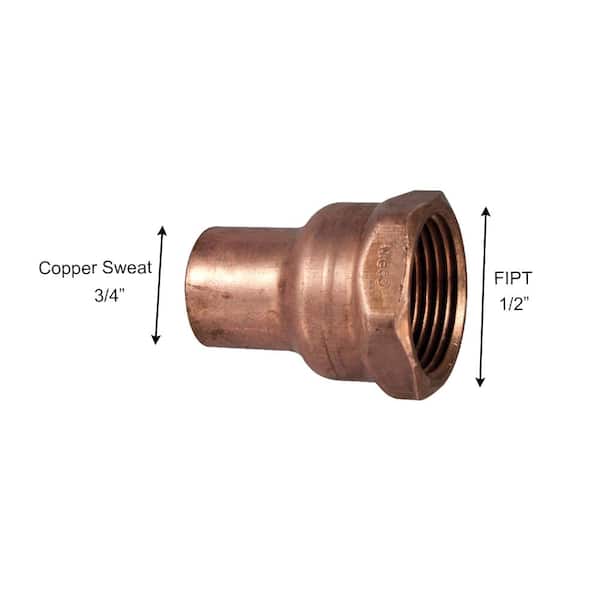

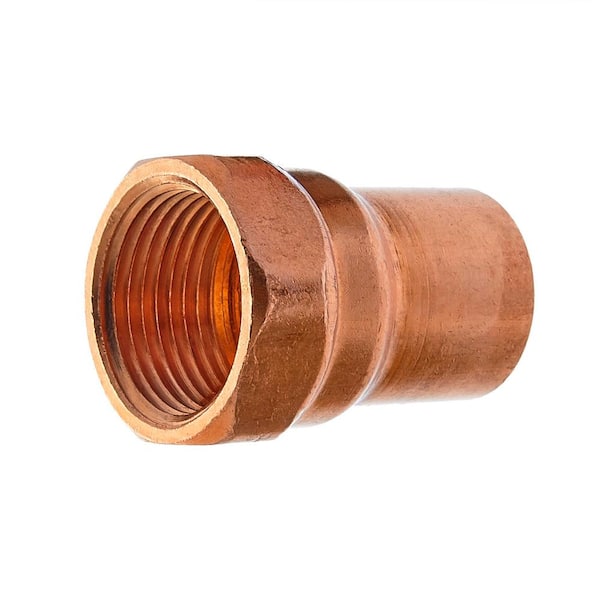

3/4 in. x 1/2 in. Copper Pressure Cup x Female Adapter Fitting

$9.74
  • Designed for use with aboveground water supply piping
  • Adapts to standard male pipe threads
  • 582 psi maximum working pressure
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy

Product Details

About This Product

The NIBCO lead-free wrot copper solder pressure female adapter is used in residential and commercial systems such as potable water, air conditioning and refrigeration. Options also include cleaned and bagged for oxygen service (medical gas). The female adapter features a solder cup and female NPT thread. These fittings provide a means for adapting a solder connection to a threaded connection.

Highlights

  • 3/4 X 1/2 in. Inside Diameter and 7/8 x 5/8 in. Outside Diameter
  • Third-party certified to NSF/ANSI 61 and 372
  • Dezincification resistant
  • ASTM B75 Alloy C12200
  • Material and workmanship per ASME B16.22
  • Material, workmanship and dimensions per MSS SP-104
  • Relies on a force or pressure to maintain flow
  • Cup x FIP
  • NFPA 99 Health Care Facilities Gas and Vacuum Systems and the Compressed Gas Association, Pamphlet G4.1 (medical gas)
  • Note: product may vary by store
  • Return Policy

Product Information

Internet # 100007956

Model # C603HD3412

Store SKU # 741919

Store SO SKU #1000544116

Specifications

Dimensions

Double Fitting Size

3/4" x 1/2"

Fitting 1 size

3/4"

Fitting 2 size

1/2"

Fitting Size Dimensions

3/4" x 1/2"

Product Length (in.)

1.43 in

Single Fitting Size

3/4"

Details

Application

Air Conditioning, Non-Potable Water, Potable Water, Refrigeration

Color Family

Copper

Color/Finish

Copper

Compatible Pipe Material

Copper

Connection 1

Copper Sweat

Connection 2

FIPT

Connectivity

Solder

Copper Fitting Manufacturing Process

Wrought

Features

Corrosion Resistant, Lead Free

Fitting or Connector Type

Adapter

Fitting/ Connector Collection

Copper

Material

Copper

Maximum working pressure (psi)

582

Maximum Working Temperature (F)

400

Pack Size

1

Pipe or Fitting Product Type

Fittings & Connectors

Product Weight (lb.)

0.099 lb

Reducing Fitting

Yes

Returnable

90-Day

Warranty / Certifications

Manufacturer Warranty

The Manufacturer warrants to the Owner, for a period of 50 years from the date the warranty begins, that its properly installed Product will be free of failure as a result of defects in material or workmanship in manufacturing the Product.

Questions & Answers

23Questions
caret
Q:can you use this fitting directly on a galvanized pipe?
by|Mar 27, 2024
3 Answers
Answer This Question

A:  Thank you for your inquiry on the 1/2 in. Copper Pressure Cup x FIP Female Adapter Fitting. For use in potable water service, it is not recommended to attach this fitting directly to galvanized pipe. If you have additional questions, you can reach a NIBCO Technical Services Advisor, M-F 8am - 5pm EST, by phone at (888) 446-4226.

by|Mar 27, 2024

    A:  You should use a dielectric union when connecting fittings or pipes made of dissimilar materials in any plumbing system. In your case, use a 3/4" Galvanized Steel FIP x Sweat Dielectric Union. You can see a picture of this item on the Home Depot website.

    by|Apr 28, 2024

      A:  I made a mistake on an answer a few minutes ago. It looks like you are using1/2" fittings so use a 1/2" dielectric union. The pictures on HD website will give you an idea. Bring one of your fittings to the store to make sure you buy the right size union.

      by|Apr 28, 2024
        caret
        Q:Photo shows tube being sweated to fitting with tube inserted into fitting. Dim's of 1/2" Cu tubing (actually 1/2" pipe) are same as fitting (5/8" OD) therefore tube would not fit as shown, requiring a union. Which is correct, photo or dim's?
        by|Mar 2, 2024
        1 Answer
        Answer This Question

        A:  Thank you for your inquiry on the Everbilt 1/2 in. Copper Pressure Cup x FIP Female Adapter Fitting. The drawing is only indicating the nominal size and end connection type rather than the actual measurement. The 1/2 in. nominal side will accept both 1/2 in. nominal copper tubing or 5/8 in. OD copper tubing as they are the same copper tubing. If you have additional questions, you can reach a NIBCO Technical Services Advisor, M-F 8am - 5pm EST, by phone at (888) 446-4226.

        by|Mar 5, 2024
          caret
          Q:This question is about the 1/2 in. Copper Pressure Cup x FIP Female Adapter Fitting, C603HD12. Is the female part TAPERED or STRAIGHT? (I want to install it on a straight thread IPS faucet stem.) If straight, how seal? Wicking?
          by|Jul 2, 2023
          1 Answer
          Answer This Question

          A:  Thank you for your inquiry on the Everbilt 1/2 in. Copper Pressure Cup x FIP Female Adapter Fitting. These are tapered NPT pipe threads and will not work with straight threads. We do not have a solder adaptor with straight threading. If you have additional questions, you can reach a NIBCO Technical Services Advisor, M-F 8am - 5pm EST, by phone at (888) 446-4226.

          by|Jul 5, 2023
            caret
            Q:Is the FIP straight or tapered?
            by|Jun 25, 2023
            1 Answer
            Answer This Question

            A:  Thank you for your inquiry on the Everbilt 1-1/4 in. Copper Pressure Cup x FIP Female Adapter Fitting. This fitting is NPT tampered pipe thread. If you have additional questions, you can reach a NIBCO Technical Services Advisor, M-F 8am - 5pm EST, by phone at (888) 446-4226.

            by|Jun 26, 2023
              Showing 1-4 of 23

              Customer Reviews

              4.6 out of 5

              • 4.6 out of 419 reviews
              • 89% recommend this product
              Filter by:
              Showing 1-10 of 419 reviews
              For Hot Water Tank
              Easy to find and price was reasonable
              by
              • Verified Purchase
              • Recommended
              The best adapter for Rheem water heater
              Good for hot and cold 3/4 copper pipe of Rheem water heater.
              by
                • Recommended
                1 found this review helpful
                Good job...
                Good job
                by
                • Verified Purchase
                this was the exact size i needed without having to use multiple fitting to install a faucet. the ...
                this was the exact size i needed without having to use multiple fitting to install a faucet. the fit was exact and the faucet threaded on easily. soldering it on was a snap.
                by
                • Pro
                • Verified Purchase
                • Recommended
                Nice to have on hand when needed. This copper adapter can be used from galvanized pipe to the cop...
                Nice to have on hand when needed. This copper adapter can be used from galvanized pipe to the copper fitting.
                by
                • Verified Purchase
                • Recommended
                1/2 in. Copper C x FPT Adapter This heavy duty adapter was used to replace an older worn adapter....
                1/2 in. Copper C x FPT Adapter This heavy duty adapter was used to replace an older worn adapter. It fit perfectly, and was easy to install. Nothing beats copper as a plumbing metal, and so many things are being redone in plastic. Copper has been a proven plumbing metal for many years. With the cost of copper so high now, I was pleasantly surprised at how very reasonably priced this all copper fitting is!
                by
                • Recommended
                Works better than dielectric union.
                Installed 2 on hot water heater. No issues, easy installation.
                by
                • DIY
                • Recommended
                2 found this review helpful
                This is Exactly What I needed to install a new hose bibb
                After I noticed my old hose bibb leaking, went to Home Depot in Queen Creek, AZ, spoke to a girl in the plumbing dept, she told me that I needed this adapter to install a new hose bibb, wow she knew more than me...So, I purchased it and installed it. It worked out great! I don't know how the previous builder installed the old one, but it wasn't correct. Now I can be worry free of leakage. I would recommend this adapter for easy installation.
                by
                • DIY
                • Recommended
                5 found this review helpful
                • Verified Purchase
                • Verified Purchase
                Showing 1-10 of 419 reviews
