Internet #207176871

Model #800859

Store SKU #639539

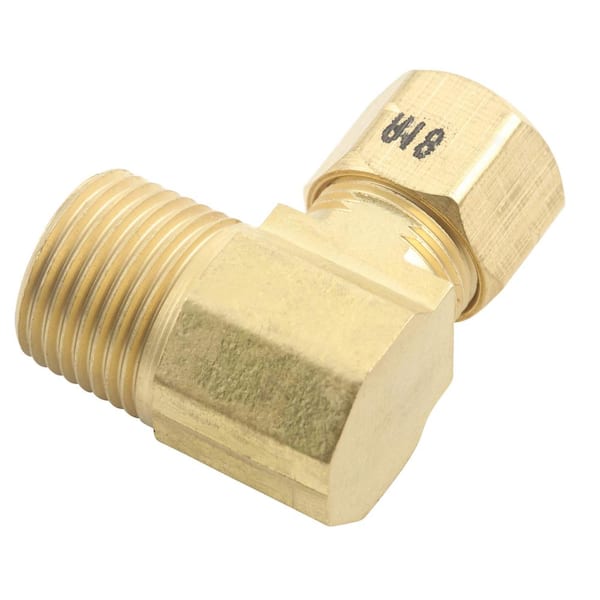

3/8 in. OD Compression x 3/8 in. MIP 90-Degree Brass Elbow Adapter Fitting

  • Made for low to medium-pressure applications
  • Ideal for gasoline, grease, oil or water
  • Made of durable, lead-free, corrosion-resistant brass
  • See More Details
$656

Frequently Bought Together

+
+
Price:
$656

Product Overview

Compression elbows are made for low to medium-pressure applications. This elbow features a compression fitting on one side and a male pipe thread fitting on the other. It has a 90 bend for flexibility and is made of durable, lead-free and corrosion resistant brass for long-lasting durability. Fittings conform to NSF 61 and 372 and are registered in Mass. Use with copper, brass, aluminum or plastic tubing on gasoline, grease, oil or water.
  • California residents
  • One piece per package
  • LFA-129
  • Do not overtighten
  • Use with copper, brass, aluminum or plastic tubing on gasoline, grease, oil or water
  • Not recommended for use with steel tubing
  • Not for underground use
  • Corrosion-resistant, lead-free brass construction

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Brass Fittings

3/8 in. MIP x 3/8 in. FIP 90-Degree Brass Street Elbow Fitting
current product
3/8 in. OD Compression x 3/8 in. MIP 90-Degree Brass Elbow Adapter Fitting
3/8 in. O.D. Compression x 1/2 in. MIP 90-Degree Brass Elbow Adapter Fitting3/8 in. OD Compression 90-Degree Brass Elbow Fitting
BrandEverbiltEverbiltEverbiltEverbilt
Name3/8 in. MIP x 3/8 in. FIP 90-Degree Brass Street Elbow Fitting3/8 in. OD Compression x 3/8 in. MIP 90-Degree Brass Elbow Adapter Fitting3/8 in. O.D. Compression x 1/2 in. MIP 90-Degree Brass Elbow Adapter Fitting3/8 in. OD Compression 90-Degree Brass Elbow Fitting
Price
$626
$656
$689
$689
Ratings
(116)
(145)
(145)
(31)
Fitting 1 size3/8"3/8"3/8"3/8"
Fitting or Connector TypeElbowElbowElbowElbow
ConnectivityThreadedCompressionCompressionCompression
ApplicationAir,OilAir,OilAir,OilAir,Oil
FeaturesCorrosion Resistant,Lead Free,ThreadedCorrosion Resistant,Lead Free,ThreadedCorrosion Resistant,Lead Free,ThreadedCorrosion Resistant,Lead Free,Threaded
Pack Size1111
MaterialBrassBrassBrassBrass
View ProductView ProductView ProductView Product

Specifications

Dimensions

Assembled Depth (in.)
1.12 in
Assembled Height (in.)
1.52 in
Assembled Width (in.)
0.68 in
Double Fitting Size
3/8" x 3/8"
Fitting 1 size
3/8"
Fitting 2 size
3/8"
Product Depth (in.)
2
Product Height (in.)
0.8
Product Width (in.)
2

Details

Application
Air,Oil
Bend Degree
90 Degree
Color Family
Brass
Color/Finish
Brass
Compatible Pipe Material
Multi-Purpose
Connection 1
Comp
Connection 2
MIP
Connectivity
Compression
Features
Corrosion Resistant,Lead Free,Threaded
Fitting or Connector Type
Elbow
Fitting/ Connector Collection
Brass
Material
Brass
Maximum working pressure (psi)
400
Maximum Working Temperature (F)
250
Pack Size
1
Pipe or Fitting Product Type
Fittings & Connectors
Product Weight (lb.)
0.13
Reducing Fitting
No
Returnable
180-Day

Warranty / Certifications

Manufacturer Warranty
1 Year Limited

Questions & Answers

5Questions21Answers

what size wrench do I need for the 3/8 in part of this?

Asked by 35355 May 10, 2020
2
Answers

Small adjustable wrench

Will this work as it comes with a 3/8" faucet connector hose?

Asked by JP January 31, 2020
7
Answers

i'm buying this fitting to connect a washing machine hose (same connector as garden hose) to my pull-down faucet/sprayer. based on the 4th picture by Daniel (below) i'm guessing it does work. i'll be picking it up tomorrow and if it doesn't work, i'll post an update saying so.

Can this be used with drinking water? NSF certified?

Asked by Don June 19, 2019
2
Answers

This product overview states the fitting conforms to NSF 61 and 372. The NSF/ANSI Standard 61 (NSF-61) certifies that the chemicals and materials used in producing drinking water are safe and will not produce negative health effects. It ensures that components of the process will not add contaminants that will cause health or regulatory problems.

Is this safe for use for potable water supply line?

Asked by davekro March 8, 2019
5
Answers

I used it for my Dishwasher connection from a potable water supply.

The fitting in the package that I purchased did not have a seal or rubber washer in the hose conn...

Asked by Rosemary February 5, 2019
5
Answers

Mine did, uses standard 'hose' washer. Could have been a re-stocked return item.
