Internet #203220517

Model #P1056-150RC

Store SO SKU #1000673296

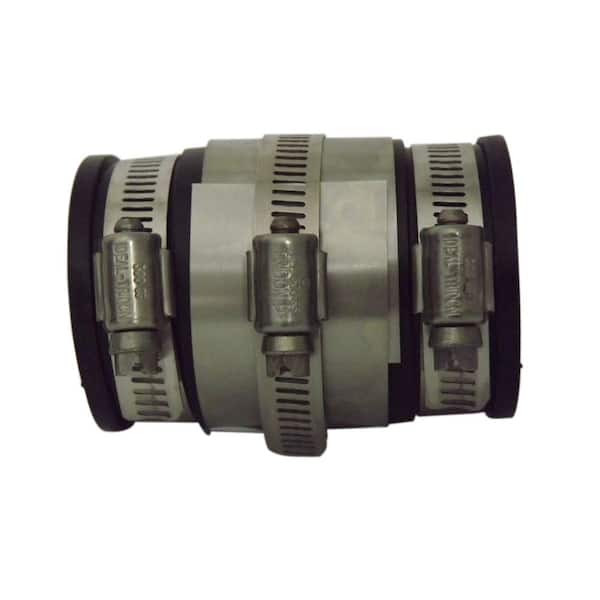

1-1/2 in. Flexible PVC Shielded Coupling

Frequently Bought Together

+
+
Price:
$1599

Product Overview

This Fernco 1-1/2 in. x 1-1/2 in. flexible PVC shielded Coupling is manufactured for Drain, Waste and Vent pipes. This model fits Cast Iron, Plastic, Steel, Copper and Lead pipes to the same. It features durable construction that's designed to be unaffected by soil conditions. Band slots offer great flexibility and the adapter includes 300-series stainless-steel clamps and Shear Ring.
  • Flexible PVC construction
  • 300-series stainless-steel clamps and shear ring resist corrosion and offer efficient seals
  • For sewer and drain waste and vent piping
  • Compatible with cast iron, plastic, copper, lead and steel piping
  • Mechanical connection type
  • Underground rated
  • Maximum working pressure of 4.3 PSI
  • Resists chemicals, ultraviolet rays and fungus growth
  • Band slots for great flexibility
  • Fast and easy installation with a screwdriver, nut driver or socket wrench (sold separately)

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar PVC Fittings

1-1/2 in. PVC Flexible Tee Coupling with Stainless Steel Clamps
current product
1-1/2 in. Flexible PVC Shielded Coupling
2 in. Flexible PVC Shielded Coupling1-1/2 in. PVC Flexible Coupling with Stainless Steel Clamps (Pack of 4)
BrandThe Plumber's ChoiceFerncoFerncoThe Plumber's Choice
Name1-1/2 in. PVC Flexible Tee Coupling with Stainless Steel Clamps1-1/2 in. Flexible PVC Shielded Coupling2 in. Flexible PVC Shielded Coupling1-1/2 in. PVC Flexible Coupling with Stainless Steel Clamps (Pack of 4)
Price
$908
$1599
$1599
$1614
/package
Ratings
(9)
(27)
(27)
(8)
Fitting 1 size1-1/2"1-1/2"2"1-1/2"
Fitting or Connector TypeTeeCouplingCouplingCoupling
Schedule TypeSchedule 40Schedule 40Schedule 40Schedule 40
ApplicationPotable Water Non-Potable Water,Potable Water
ConnectivityPressCompressionCompressionPress
DWVDWV DWV
Pack Size1114
FeaturesFlexible,Underground RatedCorrosion Resistant,Flexible,Lead Free,Removable,UV Resistant,Underground Rated,Underground UseCorrosion Resistant,Flexible,Lead Free,Removable,UV Resistant,Underground Rated,Underground UseFlexible,Underground Rated
View ProductView ProductView ProductView Product

Specifications

Dimensions

Double Fitting Size
1-1/2" x 1-1/2"
Fitting 1 size
1-1/2"
Fitting 2 size
1-1/2"
Product Length (in.)
2.8125 in

Details

Color Family
Black
Color/Finish
BLACK
Compatible Pipe Material
Multi-Purpose
Connection 1
Mechanical
Connection 2
Mechanical
Connectivity
Compression
Features
Corrosion Resistant,Flexible,Lead Free,Removable,UV Resistant,Underground Rated,Underground Use
Fitting or Connector Type
Coupling
Fitting/ Connector Collection
PVC
Material
PVC
Maximum working pressure (psi)
4.9
Maximum Working Temperature (F)
120
Pack Size
1
Pipe or Fitting Product Type
Fittings & Connectors
Product Weight (lb.)
0.45 lb
Reducing Fitting
No
Returnable
180-Day
Schedule Type
Schedule 40

Warranty / Certifications

Manufacturer Warranty
Defects in workmanship or materials for a period of one year and will replace any defective product returned within that time period.

Questions & Answers

19Questions19Answers

How can this fit copper and gal and pvc when they each have a different outside diameter?

Asked by Nick February 5, 2018
3
Answers

The boot where the two ring clamps are have some expansion capability. It has been a year, but if I remember correctly, used some silicon or plumbers grease to help. Also, if you go to the manufacturer’s website, it notes the connection capability.. Doing the PVC to PVC was much easier. The cast iron side was horrible as I tried to hand sand all the corrosion off. I watched the couplings for several days before covering the whole up. There are other boots at Home Depot, but with only one clamp at each end. I paid extra for the extra clamps and steel center ring. If these didn’t work, I would have returned them to HD and got the single clamps.

can i get 12 degrees bend out of this in a 9" span

Asked by gopher June 14, 2019
2
Answers

No.

The old pipe measuers about 4 7/16 inch, where it goes inside the bell. It may be 4.5 inch becaus...

Asked by Truckman December 31, 2018
2
Answers

Fernco donuts work off of compression, therefore your dimensions need to be very specific and within 1/8" or else the product will fail. Please contact Fernco Customer Service with your specific application details, 800-521-1283.

Can the Fernco 4 in. Service Weight Cast Iron Hub x 4 in. Schedule 40 PVC Compression Coupling be...

Asked by Ken May 28, 2019
2
Answers

Yes, PVC and ABS have the same dimensions.

Can this be used to transition ABS pipe into a 4" Cast Iron Wye or can it only be used with PVC?

Asked by Howie November 11, 2019
2
Answers

Yes, I used ABS line. I had to use a press to install it into the insert with a water and soap solution.

What fernco shielded coupling should I use to join 3inch pvc where space is very tight between walls?

Asked by SCOOBYSPOPH November 18, 2019
2
Answers

Please contact Fernco customer service for further part information.

Does this fit sdr-35 4" drain pipe? I noticed the couplings for 4" schedule 40 PVC are about .4" too big in the diameter

Asked by Phil April 26, 2017
2
Answers

I believe another coupling is made for that pipe. Look at Fernco's engineering specifications page to find the correct product.

tips for instlation

Asked by hank342 March 19, 2016
2
Answers

Thoroughly clean the interior of the bell into which you are installing this, place the donut inside the bell and be sure it is seated to the shoulder of the donut, measure from bottom of shoulder to bottom of inside of donut and transfer this measurement to a mark on your PVC pipe, grease inside of donut with appropriate lube, bevel the end of your PVC to a gradual end, about a 30 degree angle but not a long bevel, generously lube the end at bevel with appropriate grease, place beveled end of pipe into previously installed donut and force into same until you feel it hit bottom and previously marked point is approximately even with shoulder of donut. If you have difficulty getting the PVC to seat properly a bar for prying or a sledge hammer for striking may be used on the end of the PVC pipe with a block of wood over that end to protect it. I believe if you search on Youtube they will have a clip of this procedure. Hope this helps someone.

Do you have the West Coast version of this coupling? Fernco says their part number is 1002-66WC. The big end diameter is 8.0 inches.

Asked by w1941 October 16, 2014
1
Answer

Thank you for your recent inquiry with The Home Depot. I believe the best advice would be to talk to one of our many specialty department professionals at your local Home Depot store. For any other questions, please visit your nearest local Home Depot store or call us at HomeDepot.com Customer Service 800-430-3376.

Should I use any type of caulk like silicon or Plastic Seal or Dap Window seal between this hub a...

Asked by Greg November 17, 2020
1
Answer

No, we do not recommend any type of silicon or sealer.

1-1/2 in. Flexible PVC Shielded Coupling - page 2

Customer Reviews

  • 27 Customer Reviews
  • 4.3 out of 5 stars overall
100% of customers recommended.
Overall Ratings
5star-icon(21)
4star-icon(0)
3star-icon(1)
2star-icon(2)
1star-icon(3)
Sort By:
Doesn't really fit 4in hub unless you trim the fins off, then it fits great.
Doesn't really fit 4in hub unless you trim the fins off, then it fits great.
Was this helpful?
0
0
different sizes
Fernco does make a smaller size- AC418-305 that will fit with about a 4.75in diameter hub. There is also a largest size P44UX-305 that will fit to a 5in diameter cast iron drain hub. Try measuring the hub with a string maybe to get an accurate measurement. The great folks at Fernco were a great help. It would be nice if maybe Home Depot could just order the different sizes.
Was this helpful?
0
0
A 100 Year old Cast Pipe. burst. A pvc replacement was in order to make a repair. Using this co...
A 100 Year old Cast Pipe. burst. A pvc replacement was in order to make a repair. Using this compression coupling I was able to add a pvc pipe directly into a cast fitting. The only caution is handle the cast with exceptional care to avoid cracking. Clean well, and when assembling make sure the pvc is seated through the coupling. I added no sealers to the new joint.
Was this helpful?
0
0
Its too early to talk abouts its lasting durability. However, the product is well made and instal...
Its too early to talk abouts its lasting durability. However, the product is well made and installed with little effort.. I used it to attach to an old CI sewer line to pvc.
Was this helpful?
0
0
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
Was this helpful?
0
0
If you are trying to couple ABS to Cast iron and you can join it at a bell in the cast iron this ...
If you are trying to couple ABS to Cast iron and you can join it at a bell in the cast iron this is the only way to go. Makes for a very clean and tidy connection! I would recommend it to anyone doing this kind of plumbing project. I have used these couplers a few times always easy to use and the finished job is perfect.
Was this helpful?
0
0
Was this helpful?
0
0
The product was very difficult to install because it was...
The product was very difficult to install because it was too tight, possible the wrong size.
Was this helpful?
0
0
Product was as listed
Product was as listed
Was this helpful?
0
0
well made!...
well made!
Was this helpful?
0
0
