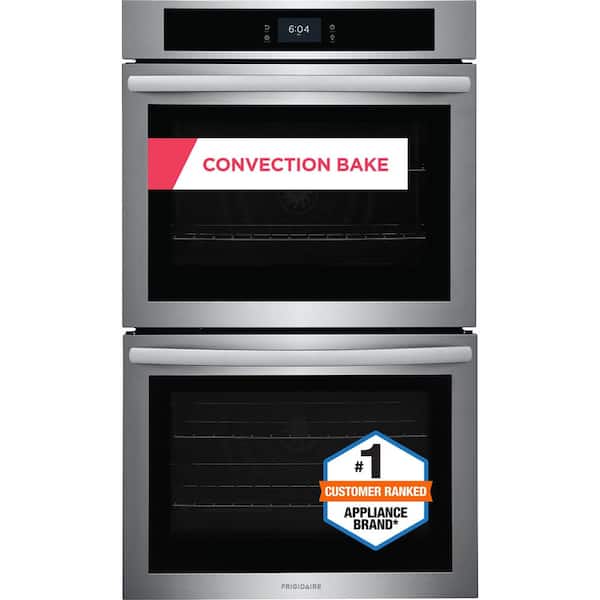

30 in. Double Electric Built-In Wall Oven with Convection in Stainless Steel
- Faster, more even baking results with Fan Convection
- Self Clean available in convenient 2, 3 and 4-hour cycles
- Peace of mind that it will fit your cutout with our Fit Promise
- View More Details
Ask about this product
Get an answer now with AI
AI-generated from the text of manufacturer documentation. To verify or get additional information, please contact The Home Depot customer service.
Product Details
About This Product
The Frigidaire 30" Double Wall Oven with Fan Convection allows you to achieve faster, more even multi-rack baking results. This Double Wall Oven has a total oven capacity of 10.6 cubic feet. It also features a premium touch screen digital control panel and provides peace of mind that it will fit existing cutouts with our Frigidaire Fit Promise.
Highlights
- Achieve better baking results with Fan Convection: Get faster, more even multi-rack baking results with Fan Convection - in both ovens
- Your oven cleans itself - so you don't have to with Self Clean: Self clean options available in convenient 2, 3 and 4-hour cycles
- Peace of Mind with our Frigidaire Fit Promise: We promise that your new 30" Frigidaire double wall oven will fit your existing cabinet cutout of the same width and configuration, or we will reimburse you up to $300 for cabinet modification costs
- Premium Touch Screen Control Panel: Features a responsive 4.3 inch, full color, capacitive touch digital control panel
- Extra Large Oven Capacity: Cook more at once with a combined 10.6 cu.ft. of oven capacity.
- Get that perfect finish with customizable Broil Temperatures: Allows you to choose the specific broil temperature you want, ranging anywhere between 400 - 550 degrees
- Convenient Cook Time Setting: Allows you to program the amount of time you want your oven to cook and then turn off
- Keep Warm Setting: Meals stay warm and are ready to serve when you are, using the Keep Warm setting
- Bright lighting keeps contents of the oven clearly visible so it's easy to monitor cooking progress
- 1-year limited warranty
- Oven racks are designed with a handle for you to easily pull out the racks, even when wearing an oven mitt
- Click here for more information on Electronic Recycling Programs
- California residentssee Prop 65 WARNINGS
Product Information
Specifications
Dimensions
Cut-Out Front to Back Depth (in.) | 24 in |
|---|---|
Cut-Out Height (in.) | 48.88 in |
Cut-Out Left to Right Width (in.) | 28.5 in |
Product Width (in.) | 30 in |
Wall Oven Size | 30 in. |
Details
Appliance Series | Not Applicable |
|---|---|
Appliance Type | Double Wall Electric Oven |
Cleaning Type | Self Cleaning |
Color/Finish | Stainless Steel |
Color/Finish Family | Stainless Steel |
Commercial/Residential | Residential |
Lower Oven Features | Broiler in Oven, Hidden Bake Element, Safety Lock |
Lower Oven Settings | Keep Warm, Sabbath Mode |
Oven Cooking Process | Convection |
Oven Features | Oven Light |
Returnable | Non-Returnable |
Upper Oven Features | Broiler in Oven, Hidden Bake Element, Safety Lock |
Upper Oven Settings | Keep Warm, Sabbath Mode |
Warranty / Certifications
Certifications and Listings | CSA Listed, ROHS, UL Listed |
|---|
Questions & Answers
What is the overall height
Hi Chuck! Thank you for checking with us. The overall height of the Frigidaire 30 in. Double Electric Built-In Wall Oven (Model FCWD3027AS) is 50 3/4 inches (50.75"). We hope this helps! - Patrick
How much does the oven weigh? Want to make install easy with a lift. Lift only holds 350lbs
Hi there, the Frigidaire 27 in. Double Electric Built-In Wall Oven with Convection in White weighs 215 pounds out of the box. So if your lift is rated for 350 lbs, it should safely handle the oven itself with a good margin (~135 lbs spare). Also account for: - any packaging/pallet weight if it’s still boxed - installer/tools weight if the lift rating is the total platform load - safe balancing since wall ovens are awkward and front-heavy Many installers remove the oven doors temporarily to reduce handling weight during installation. - Maico
my rough opening is 28.25 width, 49.125 height, 24.75 depth. will this fit? will it require a separate trim kit?
Hi Gordon, thank you for your question. The FCWD2727AW will not properly fit your rough opening. While the width is close, the required installation height for this unit is taller than your available 49.125 inches, and the depth may also be insufficient once ventilation and electrical clearances are included. A separate trim kit will not resolve this issue, as trim kits are only for finishing and minor gaps, not for correcting size mismatches. Overall, your cabinet opening would need modification—especially in height—for proper installation. — Reed
What is the inside oven with dimensions?
Hello Timothy, the interior oven dimensions for the Frigidaire 27 in. Double Electric Built-In Wall Oven with Convection in Black is: - Interior Height: 17 inches - Interior Width: 20 1/2 inches - Interior Depth: 18 3/4 inches These dimensions apply to both the upper and lower ovens. - Maico
if this oven fits a 48 7/8 to 50 1/4 opening why do i need to buy a trim plate if opening is over 49 3/8
Hello Jimbo, the manual’s logic here is about fit tolerance vs. “finish appearance”, not just whether the oven physically fits in the cabinet opening. For the Frigidaire 27 in. Double Electric Built-In Wall Oven with Convection, the installation specs show: - Minimum cutout height: 48 7/8 in. - Maximum cutout height: 50 1/4 in. So yes, the oven is designed to fit a fairly wide range of openings. Even if the oven still “fits,” anything above the ideal midpoint range creates a visible gap between the oven frame and the cabinet opening. That’s where the trim comes in. The manual’s separate note explains that when the opening is taller than ~49 1/2 in., installers should add: - filler shims, and/or - a larger bottom trim kit to cover the exposed space If your opening is over ~49 3/8–49 1/2 inches: - The oven will still be installed safely - BUT you’ll likely see a gap at the top or bottom - The trim plate is there to: - hide that gap - make the oven look built-in and flush - cover exposed cabinet edges or shims You don’t need the trim plate for structural fit; you need it because: - The oven can still fit safely, but the cabinet opening becomes too tall to look finished without covering the extra space. - Maico
Can I use it with a 50 amp connection?
Hi Bina, thank you for your inquiry. The Frigidaire FCWD2727AB requires a dedicated 240-volt electrical connection with a minimum 40-amp circuit, in accordance with the manufacturer’s specifications. While an existing 50-amp supply will not inherently damage the unit, it is not recommended to connect the oven to a 50-amp breaker, as this would not provide the proper overcurrent protection and may not meet electrical code requirements. If a 50-amp circuit is currently installed, it may be used only if the breaker is replaced with a 40-amp breaker and the wiring is confirmed to be compatible. We recommend having a qualified electrician verify the installation to ensure safety and compliance. - Reed
What is the height of the actual oven
Thank you for your question. The 30 in. Double Electric Built‑In Wall Oven with Convection has an overall height of approximately 50 3/4 inches. For installation, the recommended cutout height is between 48 7/8 inches and 50 1/4 inches. - Jessica
Is this a ductless oven?
Hello, Rochelle. We appreciate you reaching out to us. No, this Wall Oven is not a ductless oven. - Maria
