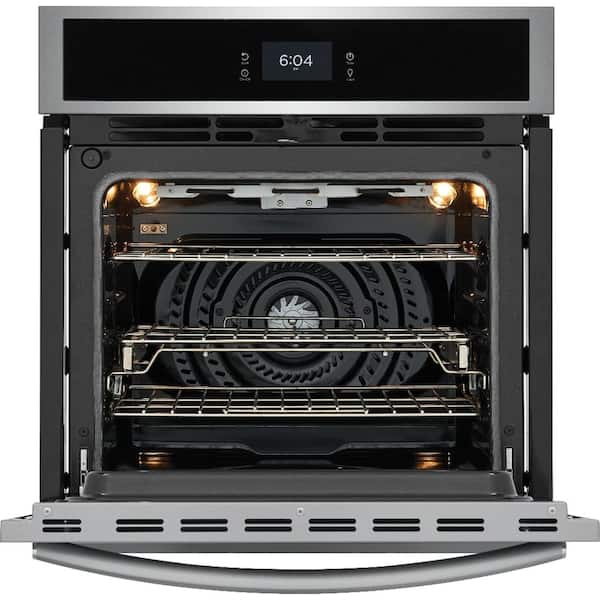

The Frigidaire Gallery 27" Single Wall Oven with Total Convection, features our most powerful and advanced convection system. Enables cooking modes like No Preheat, Air Fry, Slow Cook, Steam Bake, Steam Roast, Air Sous Vide, Convection Roast, Convection Bake, Bread Proof and more. Also includes a convenient temperature probe, a premium touch screen digital control panel and our fingerprint resistant, Smudge-Proof Stainless Steel finish.
Dimensions: H 29.5 in, W 27 in, D 24.75 in
Cut-Out Front to Back Depth (in.) | 24.75 |
|---|---|
Cut-Out Height (in.) | 27.25 |
Cut-Out Left to Right Width (in.) | 20.5 |
Depth With Door(s) Open 90 Degrees (in.) | 45.75 |
Product Depth (in.) | 24.75 in |
Product Height (in.) | 29.5 in |
Product Width (in.) | 27 in |
Wall Oven Size | 27 in. |
Appliance Category | Wall Oven |
|---|---|
Appliance Series | Frigidaire Gallery |
Appliance Type | Single Wall Electric Oven |
Capacity of Oven (cu. ft.) | 3.8 cu ft |
Cleaning Type | Self Cleaning |
Color/Finish | Smudge-Proof Stainless Steel |
Color/Finish Family | Stainless Steel |
Commercial/Residential | Residential |
Oven Cooking Process | Air Fry, Air Sous Vide, True Convection |
Oven Features | Broiler in Oven, Fingerprint Resistant, Gliding/Roll Out Racks, Hidden Bake Element, Oven Temperature Probe, Safety Lock, Steam Cooking, Temperature Control |
Returnable | Non-Returnable |
Certifications and Listings | ROHS, Star-K, UL Listed |
|---|
Hi Danny! Thank you for checking with us. No, your current cutout of 30 1/8” W × 33 3/4” H is too wide and too tall for the Frigidaire Gallery GCWS3067AF, which requires a maximum width of 29” and a maximum height of 28”. We hope this helps! - Patrick
Hello Scott! According to the Frigidaire specifications/manual information for the Frigidaire Gallery 30-inch Single Electric Built-In Wall Oven with Total Convection (Smudge-Proof Stainless Steel), the oven’s electrical rating is: 4,000 watts (maximum power draw) The unit requires a 240V electrical connection (or 208V where applicable) and should be installed on a properly sized dedicated circuit according to the installation instructions. Answer: 4,000 watts. - Maico
Hi scott! Thank you for checking with us. The Frigidaire Gallery 30 in. Single Electric Built-In Wall Oven (Model GCWS3067AF) has a total connected load of 4.5 kW at 240 Volts. We hope this helps! - Patrick
Hi Kelli! Thank you for checking with us. The Frigidaire Gallery model GCWS3067AF is a hardwired appliance that requires a 4-wire electrical connection. It must be connected directly to a junction box using a flexible armored or nonmetallic sheathed cable. We hope this helps! - Patrick
Hi Ernest, thank you for your inquiry regarding the Frigidaire Gallery wall oven model GCWS3067AF. This unit is not ventless; it is a standard built-in electric convection wall oven that uses internal cooling fans and a built-in venting system to manage heat during operation. — Reed
Hi, Geodea. Thank you for your question about the GCWS3067AF wall oven. The interior oven cavity measures approximately 18 1/8 inches high, 25 1/5 inches wide, and 19 7/8 inches deep, providing about 5.3 cubic feet of cooking capacity. — Reed
