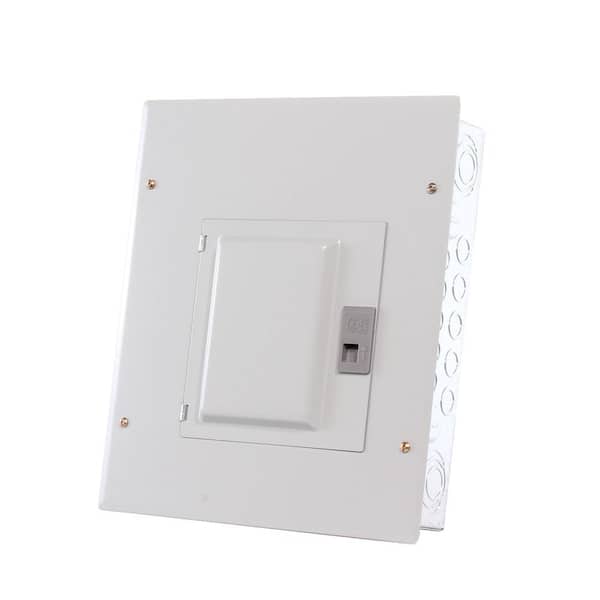

PowerMark Gold 125 Amp 14-Space 24-Circuit Indoor Main Lug Circuit Breaker Panel

$5498
  • Indoor NEMA 1 enclosure
  • Main lugs are factory installed; convertible to main breaker
  • Includes equipment ground kit
  • View More Details
Store
0 in stock
Text to Me
How to Get It

Frequently Bought Together

+
+
Price:
$5498

Product Overview

The load center includes a sturdy tin-plated copper buss bar and a galvanized box for increased durability and reliability. The one-piece interior removes and re-installs easily. Indoor NEMA 1 enclosure with combination surface/flush front. This load center is UL listed and ANSI Certified.

Additional Resources

From the Manufacturer

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Individual Subpanels

Homeline 100 Amp 6-Space 12-Circuit Indoor Surface Mount Main Lug Load Center with Cover
current product
PowerMark Gold 125 Amp 14-Space 24-Circuit Indoor Main Lug Circuit Breaker Panel
QO 100 Amp 8-Space 16-Circuit Indoor Flush Mount Main Lug Load Center with Cover, DoorPowerMark Gold 125 Amp 14-Space 24-Circuit Outdoor Main Lug Circuit Breaker Panel
BrandSquare DGESquare DGE
NameHomeline 100 Amp 6-Space 12-Circuit Indoor Surface Mount Main Lug Load Center with CoverPowerMark Gold 125 Amp 14-Space 24-Circuit Indoor Main Lug Circuit Breaker PanelQO 100 Amp 8-Space 16-Circuit Indoor Flush Mount Main Lug Load Center with Cover, DoorPowerMark Gold 125 Amp 14-Space 24-Circuit Outdoor Main Lug Circuit Breaker Panel
Price
$2498
$5498
$6348
$10283
Ratings
(173)
(143)
(40)
(126)
Maximum Amperage (amps)100125100125
Indoor/OutdoorIndoorIndoorIndoorOutdoor
Number of Spaces614812
Mounting TypePlug-OnPlug-OnPlug-OnPlug-On
Number of Circuits12241624
Load Center TypeMain LugMain LugMain LugMain Lug
Load center width (in.)8.8814.388.8813
Load center height (in.)12.5716.1112.5721.5
View ProductView ProductView ProductView Product

Specifications

Dimensions

Load center depth (in.)
3.31
Load center height (in.)
16.11
Load center width (in.)
14.38

Details

Electrical Product Type
Main Lug/ Main Lug Kit
Indoor/Outdoor
Indoor
Load Center Mounting Type
Flush,Surface
Load Center Type
Main Lug
Maximum Amperage (amps)
125
Mounting Type
Plug-On
NEMA Configuration
NEMA 1
Number of Circuits
24
Number of Spaces
14
Phase Type
1 Phase
Product Weight (lb.)
19.229
Returnable
90-Day
Voltage (volts)
240

Warranty / Certifications

Certifications and Listings
UL Listed
Manufacturer Warranty
One year warranty from first use

Questions & Answers

Typical questions asked about products:

  • Is the product durable?
  • Is the product easy to use?
  • What are the dimensions of the product?

Customer Reviews

  • 4.4
    out of 143 reviews
  • 81%recommend this product
Filter by:
Showing 1-10 of 143 reviews
Good price and value
Good price and value
by
    • Recommended
    3 found this review helpful
    Because the price was so affordable, I was able to overlook a couple of things: The screw holes ...
    Because the price was so affordable, I was able to overlook a couple of things: The screw holes in the cover didn't align with the ones in the box. I had to do a bit of "hammer adjustment"! Also the bus contact didn't quite line up with one the breakers, so a little more "alignment" required. The knock-outs in the box required more than a little "knocking" to get them out, but like I said, I didn't pay a lot for it and after adding a ground buss, it did the job I wanted, a small sub-panel in my garage to support a welder, for not a lot of cash outlay! On the plus side, the breakers aligned well with the cover opening and the finish is good. I was able to install two (2) single breakers (120VAC) for my lights and receptacles and a double breaker (240VAC) for the welder and compressor. It fit in the same small footprint of the previous box. If you are on a budget, and don't mind a bit of "adjusting", I recommend this box as a small, low priced alternative. Once it's mounted and working, you'll be glad you did!
    by
    • Verified Purchase
    • Recommended
    2 found this review helpful
    Spacious panel.
    Spacious panel.
    by
    • Verified Purchase
    • Recommended
    1 found this review helpful
    Pictured style discontinued
    The TLM1212CCU has undergone a design revision in which it has 1/2" knockouts, and no main breaker knockout up top (and is notably smaller). I, too, went to purchase one to match my existing subpanel and found the item pictured is not what is sold in stores (nor is it at the blue box competitor). Based on GE's current catalog, if you're looking for what is pictured above, you will need to seek a TM1212CCU (note the absence of the "L")... Or find old stock somewhere. Boxes with red amperage labels are the newer revisions (which don't match the picture, and usually have a "P" at the end of the model number).
    by
      14 found this review helpful
      The screws for the front plate were missing. And...
      The screws for the front plate were missing. And the knock outs on the front plate for the breakers were very difficult to remove. But now that the installation problems are over, the breakers fit fine and it works well.
      by
      • Verified Purchase
      Well made. Has both a neutral and a ground...
      Well made. Has both a neutral and a ground bar with it. Takes both 1 inch and 1/2 inch GE breakers
      by
      • Verified Purchase
      by
      • Verified Purchase
      by
      • Verified Purchase
      by
        Very easy to install....
        Very easy to install.
        by
