Internet #100112892

Model # TM3215RCU1K

Store SKU #722627

0043481000848

GE

PowerMark Gold 150 Amp 32-Space 32-Circuit Outdoor Main Breaker Value Kit

  • Outdoor NEMA 3R enclosure with removable closing caps
  • Main breaker is factory installed
  • Includes 8 circuit breakers
$ 164 56
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

+
+

Product Overview

  • Outdoor NEMA 3R enclosure with removable closing caps
  • Main breaker is factory installed
  • Includes 8 circuit breakers
This value kit includes 6 20 Amp Single-Pole, 1 30 Amp Double-Pole, 1 50 Amp Double-Pole THQL 1 in. Circuit Breakers. The load center includes a sturdy tin-plated copper buss bar and a galvanized box for increased durability and reliability. The one-piece interior removes and re-installs easily. Outdoor NEMA 3R enclosure. This load center is UL listed and ANSI Certified.
  • Rust-resistant galvanized box for outdoor use
  • Highly conductive copper buss bar
  • Factory-installed main breaker, full-length neutral bars, top or bottom feed and self-adjusting, dead-front cover
  • 100% rated split neutral on each side
  • Single-phase, 3-wire, 120/240-Volt and 22K AIC rating
  • All neutral holes rated for 14 - 4 wire

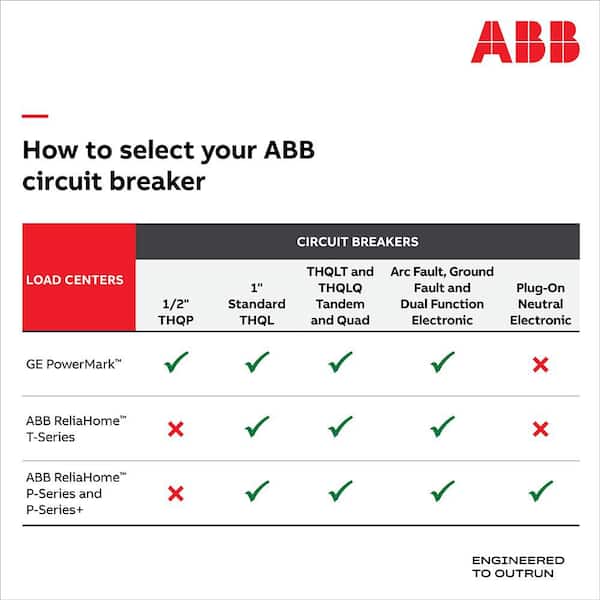

  • Accepts GFCI and AFCI breakers
  • UL listed and ANSI certified
  • Includes 6 THQL1120 20 Amp single-pole circuit breakers, 1 THQL2130 30 Amp double-pole circuit breaker and 1 THQL2150 50 Amp double-pole circuit breaker
  • Includes select circuit breakers
  • Closure caps included, hubs ordered separately
  • Learn More About Electrical Panels Here in our Buying Guide.



  • Click here for more information on Electronic Recycling Programs

Product Overview

  • Outdoor NEMA 3R enclosure with removable closing caps
  • Main breaker is factory installed
  • Includes 8 circuit breakers
Model #: TM3215RCU1K
Sku #: 722627
Internet #: 100112892

This value kit includes 6 20 Amp Single-Pole, 1 30 Amp Double-Pole, 1 50 Amp Double-Pole THQL 1 in. Circuit Breakers. The load center includes a sturdy tin-plated copper buss bar and a galvanized box for increased durability and reliability. The one-piece interior removes and re-installs easily. Outdoor NEMA 3R enclosure. This load center is UL listed and ANSI Certified.

  • Rust-resistant galvanized box for outdoor use
  • Highly conductive copper buss bar
  • Factory-installed main breaker, full-length neutral bars, top or bottom feed and self-adjusting, dead-front cover
  • 100% rated split neutral on each side
  • Single-phase, 3-wire, 120/240-Volt and 22K AIC rating
  • All neutral holes rated for 14 - 4 wire
  • Accepts GFCI and AFCI breakers
  • UL listed and ANSI certified
  • Includes 6 THQL1120 20 Amp single-pole circuit breakers, 1 THQL2130 30 Amp double-pole circuit breaker and 1 THQL2150 50 Amp double-pole circuit breaker
  • Includes select circuit breakers
  • Closure caps included, hubs ordered separately
  • Learn More About Electrical Panels Here in our Buying Guide.



  • Click here for more information on Electronic Recycling Programs

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Compare Similar Products
Brand Square D GE GE GE
Name Homeline 150 Amp 30-Space 60-Circuit Indoor Main Breaker Plug-On Neutral Load Center with Cover - Value Pack PowerMark Gold 150 Amp 32-Space 32-Circuit Indoor Main Breaker Value Kit Includes Select Circuit Breaker 150 Amp 32-Space 64-Circuit Main Breaker Outdoor Load Center Contractor Kit PowerMark Gold 150 Amp 32-Space 32-Circuit Outdoor Main Breaker Value Kit
Price
$119.00
$135.96
$149.03
$164.56
Ratings (254) (10) (1) (2)
View Product View Product View Product View Product

Specifications

Dimensions

Load center depth (in.)
5.25
Load center height (in.)
34.19
Load center width (in.)
14.88

Details

Electrical Product Type
Load Center and Breaker Kit
Indoor/Outdoor
Outdoor
Load Center Type
Main Breaker
Maximum Amperage (amps)
150
Mounting type
Plug In
Number of Phases
1
Number of Spaces
32
Product Weight (lb.)
38.7lb
Returnable
90-Day
Voltage (volts)
240

Warranty / Certifications

Certifications and Listings
1-UL Listed,ANSI Certified
Manufacturer Warranty
One year warranty from first use.

Specifications

Dimensions

Load center depth (in.)
5.25
Load center height (in.)
34.19
Load center width (in.)
14.88

Details

Electrical Product Type
Load Center and Breaker Kit
Indoor/Outdoor
Outdoor
Load Center Type
Main Breaker
Maximum Amperage (amps)
150
Mounting type
Plug In
Number of Phases
1
Number of Spaces
32
Product Weight (lb.)
38.7lb
Returnable
90-Day
Voltage (volts)
240

Warranty / Certifications

Certifications and Listings
1-UL Listed,ANSI Certified
Manufacturer Warranty
One year warranty from first use.

Questions & Answers

when will it be available.

When will it be available to purchase?
Asked by: swr123
Thank you for your recent inquiry with The Home Depot. This item is not sold online but in your local Home Depot store. To determine availability you will need to localize the item online by using a zip code. Unfortunately, if you are unable to see the store inventory, then it’s most likely not a stocked item in your area. You may also want to call or stop by your local Home Depot store and talk to one of our professionals. For any other questions, please call us at HomeDepot.com Customer Service 800-430-3376.
Answered by: THDCustomerSupport
Date published: 2015-09-20
  • y_2019, m_6, d_24, h_2CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.12
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_1
  • loc_, sid_100112892, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 96ms
  • QUESTIONS, PRODUCT

Customer Reviews

PowerMark Gold 150 Amp 32-Space 32-Circuit Outdoor Main Breaker Value Kit is rated 3.0 out of 5 by 2.
Rated 1 out of 5 by from bad interior parts Was not pleased when I was ready to install panel. Found 4 plastic buss bars holders that were broken. Didn't have time to return panel, found away to use it. Was also send 1 bad 2 pole 20 amp breaker. Not sure about the Q.C. department.
Date published: 2012-08-10
Rated 5 out of 5 by from Power mark main breaker value kit was installed by a... Power mark main breaker value kit was installed by a certified electrician and did the job that it was intended to do. I would not hesitate to recommend it to anyone. It sits very neat on the wall with out any obstruction. Thanks to power mark gold.
Date published: 2018-05-30
