Internet # 202046235

Model # TM815RCUFLP

Store SKU # 519640

GE

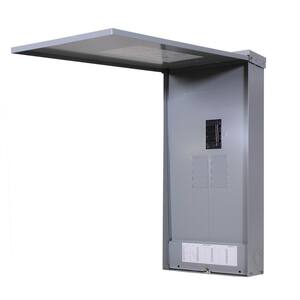

PowerMark Gold 150 Amp 8-Space 16-Circuit Load Center Outdoor Main Breaker Circuit Breaker Panel

Name: PowerMark Gold 150 Amp 8-Space 16-Circuit Load Center Outdoor Main Breaker Circuit Breaker Panel
Brand: GE
SKU: 519640
Price: 156.39 USD
Availability: InStock
Rating: 4.5726 (124 reviews)

Questions & Answers (80)

$15639

Pay $131.39 after $25 OFF your total qualifying purchase upon opening a new card.

Apply for a Home Depot Consumer Card

Outdoor NEMA 3R enclosure with removable closing cap
Main Breaker is Factory Installed
Feed-through lugs
View More Details

Store

0 in stock

Free & Easy Returns In Store or Online

Return this item within 90 days of purchase. Read Return Policy

Product Details

The load center includes a sturdy tin-plated copper buss bar and a galvanized box for increased durability and reliability. The one-piece interior removes and re-installs easily. Outdoor NEMA 3R enclosure. This load center is UL listed and ANSI Certified.

Use as an outdoor main breaker load center
Galvanized box for rust resistance with a self-adjusting dead-front cover
Copper buss for increased conduction
Full-length neutral bars for faster and easier wiring
100% split neutral holes on each side are rated for #14-4 wire
Use with equipment ground kit TGK24 (order separately)
240 VAC and 22,000 AIC rating
Compatible with GFCI, AFCI and GE circuit breakers
ANSI certified and UL listed
Closure caps included, hubs ordered separately
Learn More About Electrical Panels Here in our Buying Guide.
Click here for more information on Electronic Recycling Programs
Return Policy

Additional Resources

From the Manufacturer

Dimensions

Load center depth (in.)	5	Load center height (in.)	29
Load center width (in.)	13

Details

Electrical Product Type	Load Center	Indoor/Outdoor	Outdoor
Load Center Mounting Type	Surface	Load Center Type	Main Breaker
Maximum Amperage (A)	150	Mounting Type	Plug-On
NEMA Configuration	NEMA 3R	Number of Circuits	16
Number of Spaces	8	Phase Type	1 Phase
Product Weight (lb.)	28 lb	Returnable	90-Day
Voltage (V)	240

Warranty / Certifications

Certifications and Listings	UL Listed	Manufacturer Warranty	One year warranty from first use

Questions & Answers

Q:What interlock kit is this panel compatible with?

by|Sep 14, 2023

1 Answer

Answer This Question

A: Hi there - we’re glad you reached out! We recommend contacting GE Company for further information on this product. You can also feel free to contact our HD.com customer service department at 1-800-430-3376 any day between 6 a.m. and 2 a.m. EST or call your local store. They can either answer your question or transfer you to your local store to answer your specific question. We hope this helps! Lauren@GEAppliances

by|Sep 15, 2023

Q:Is this what the electric company is calling a main entrance quick disconnect??

by|Sep 2, 2023

1 Answer

Answer This Question

A: The TM820RCUFLP is a service entrance main disconnect with feed thru lugs. Please check with your local authority having jurisdiction that it meets the local requirements. Thank you for your question.

by|Sep 2, 2023

Q:What style of breakers does this take? I need a 200 and 100 amp breaker

by|Aug 9, 2023

0 Answer

Answer This Question

Q:Will incoming lugs hold 350 mcm wire

by|Jun 17, 2023

0 Answer

Answer This Question

Customer Reviews

4.6 out of 5

(125)

4.6
out of 125 reviews
94% recommend this product

Filter by:

Showing 1-10 of 125 reviews

Oct 31, 2018

Great economical panel which provides additional circuits for exterior electrical requirements .

Verified Purchase

Recommended

Oct 24, 2017

Well built set up for maltable installation

Verified Purchase

Recommended

1 found this review helpful

Nov 29, 2023

Worked as perfectly, good price

Nov 24, 2023

Good 200 Amp panel for the price

This 200 A feed thru panel did what it was intended to do and HD even carries extra neutral mounting lugs so that I could feed a sub panel out of it in addition to the main feed thru lugs at the bottom of the busses. My only issue with this panel is that is so SKINNY that it was difficult to mount feeder wire (#2 AWG) to a breaker (100 A) for my sub-panel due to the location of the neutral buss. I was able to make it work with proper wire bending but it required some work.

Recommended

Nov 15, 2023

This panel is perfect for new distribution panel for updating the service and electrical needs.

Oct 30, 2023

Oct 18, 2023

After installing this panel I believe there are better made panels that you can buy. Door hangs up when trying to open and the latch hardware isn’t a great fit. The breaker cover panel cut outs don’t fit very well either. The breakers do not fit snug when snapped in. Probably would not purchase again.

Oct 11, 2023

Sep 20, 2023

Jul 26, 2023

Good panel for the price

Verified Purchase

0/0
