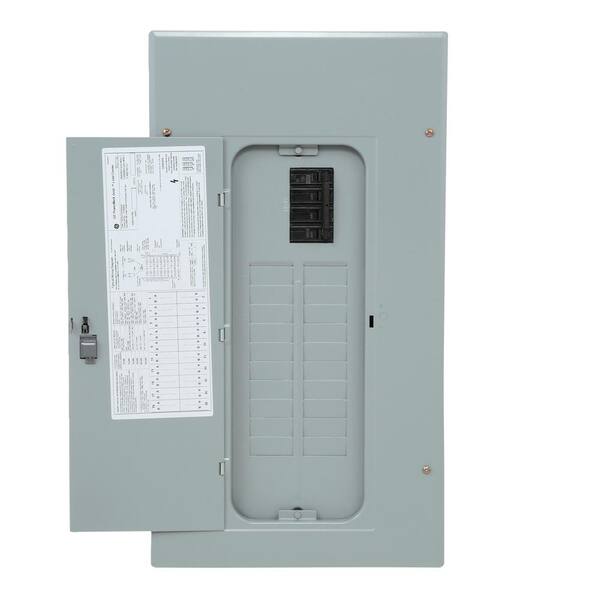

PowerMark Gold 200 Amp 20-Space 40-Circuit Indoor Main Breaker Value Kit Includes Select Circuit Breaker

$322.22
Apply Now
Pay $272.22 after $50 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
  • Indoor NEMA 1 enclosure
  • Main breaker is factory installed
  • Includes 14 circuit breakers
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy

Product Details

About This Product

This value kit includes 12 20 Amp Single-Pole, 1 30 Amp Double-Pole, 1 50 Amp Double-Pole THQP 1/2 in. Circuit Breakers. The load center includes a sturdy tin-plated copper buss bar and a galvanized box for increased durability and reliability. The one-piece interior removes and re-installs easily. Indoor NEMA 1 enclosure with combination surface/flush front. This load center is UL listed and ANSI Certified.

Highlights

  • Rust-resistant galvanized box
  • Highly conductive copper buss bar
  • Factory-installed main breaker, full-length neutral bars, top or bottom feed and self-adjusting, dead-front cover
  • 100% rated split neutral on each side
  • Single phase, 3-wire, 120/240-Volt and 22K AIC rating
  • All neutral holes rated for 14 - 4 wire
  • Accepts GE, GFCI and AFCI breakers
  • UL listed and ANSI certified
  • Indoor fronts for surface or flush installations
  • Includes 12 THQP120 single-pole 20 Amp circuit breakers, 1 THQP230 double-pole 30 Amp circuit breaker and 1 THQP250 double-pole 50 Amp circuit breaker
  • Learn More About Electrical Panels Here in our Buying Guide.
  • Click here for more information on Electronic Recycling Programs
  • Return Policy

Product Information

Internet # 100184576

Model # TM2020CCUPL2

Store SKU # 294792

Additional Resources

Shop All GE

Specifications

Dimensions: H 26.56 in, W 14.38 in, D 3.75 in

Dimensions

Load center depth (in.)

3.75

Load center height (in.)

26.56

Load center width (in.)

14.38

Product Depth (in.)

3.75 in

Product Height (in.)

26.56 in

Product Width (in.)

14.38 in

Details

Breaker Box Type

Main Breaker

Connection Type

Pigtail

Electrical Product Type

Load Center and Breaker Kit

Included

Circuit Breaker, Cover

Indoor/Outdoor

Indoor

Load Center Mounting Type

Flush, Surface

Load Center Type

Main Breaker

Maximum Amperage (A)

200

Mounting Type

Flush, Surface

NEMA Configuration

NEMA 1

NEMA Configuration Receptacle

No Receptacle

Number of Circuits

40

Number of Pieces

16

Number of Spaces

20

Phase Type

1 Phase

Product Weight (lb.)

32 lb

Returnable

90-Day

Series Type

PowerMark Gold

Voltage (V)

240

Warranty / Certifications

Certifications and Listings

UL Listed

Manufacturer Warranty

One year warranty from first use

Questions & Answers

16Questions
caret
Q:Are there separate bars for neutral and ground?
by|Aug 23, 2023
0 Answer
Answer This Question
caret
Q:how many double pole breakers can I fit? 6?
by|Mar 2, 2022
1 Answer
Answer This Question

A:  Thanks for the question. This panel has 20 full 1" frame spaces or 40 1/2" frame spaces so it will hold 10 THQL style (1" frame) or 20 THQP style (1/2" frame) breakers. An example of each would be THQL2130 and THQP230.

by|Sep 22, 2022
    1 found this answer helpful
    caret
    Q:What size brakers are included in this kit?
    by|Oct 28, 2019
    1 Answer
    Answer This Question

    A:  The answer is in the product overview: This value kit includes 12-20 Amp Single-Pole, 1-30 Amp Double-Pole, 1-50 Amp Double-Pole THQP 1/2 in. Circuit Breakers.

    by|Oct 30, 2019
      caret
      Q:Does this panel have a transfer switch kit for a generator hook up?
      by|Dec 5, 2018
      2 Answers
      Answer This Question

      A:  You would have to buy that separately.

      by|Dec 17, 2020

        A:  Good question. It does. The part number is THQLLX1. You would also need a 2 pole breaker in the amperage required by the generator. You would also need a T030N (30A) or T050N (50A) to plug your generator in to. This is a very simple and economic set up.

        by|Dec 6, 2018
          1 found this answer helpful
          Showing 1-4 of 16

          Customer Reviews

          4.5 out of 5

          • 4.5 out of 9 reviews
          • 100% recommend this product
          Filter by:
          Showing 1-9 of 9 reviews
          This purchase was great but 3 days later I tried...
          This purchase was great but 3 days later I tried to order the same thing and the price was $30 higher! You have 25-30 in some stores yet won’t ship any to me. I don’t get it! Looks like I’ll have to drive 3 hours to one of those stores to get it or find someone else to purchase these from!
          by
          • Verified Purchase
          Very easy to install had the old box out and the new box in completely wired in 4 hours.
          Very easy to install had the old box out and the new box in completely wired in 4 hours.
          by
          • Verified Purchase
          • Recommended
          5 Star Review
          Rating provided by a verified purchaser
          by
          • Verified Purchase
          the installation is straight forward. This was my first main breaker although I had installed mai...
          the installation is straight forward. This was my first main breaker although I had installed main lugs before. I documented the crap out it of with pictures and labeling all breaker wires. The only issue was one dual breaker was supplying the same phase so I had to move that up 1 position to catch the other phase but that was it.
          by
          • Verified Purchase
          • Recommended
          Great panel and price
          Great panel and price
          by
          • Verified Purchase
          • Recommended
          very easy to up grade an older moble home
          very easy to up grade an older moble home
          by
          • Verified Purchase
          • Recommended
          Great product, I have installed this in the last two houses I have owned. they were older houses ...
          Great product, I have installed this in the last two houses I have owned. they were older houses with scarry breaker boxes. This box with breakers was cheaper than two of the breakers for one of the houses
          by
            • Recommended
            1 found this review helpful
            good product
            easy to install with total complete package very helpful
            by
            • Pro
            • Verified Purchase
            • Recommended
            1 found this review helpful
            Great value
            This is a great upgrade for my grandsons 123 year old home that he just purchased, great value for the money
            by
            • DIY
            • Verified Purchase
            • Recommended
            1 found this review helpful
