Internet #202978675

Model #TSLR420CSCU

PowerMark Gold 200 Amp 4-Space 8-Circuit Ringless Horn-Bypass Overhead/Underground Combination Main Lug Load Center

  • Outdoor NEMA 3R Enclosure
  • Main Lugs are Factory Installed
  • Ringless Horn-Bypass, Overhead/Underground
  • See More Details

Frequently Bought Together

+
+
Price:
$7400

Product Overview

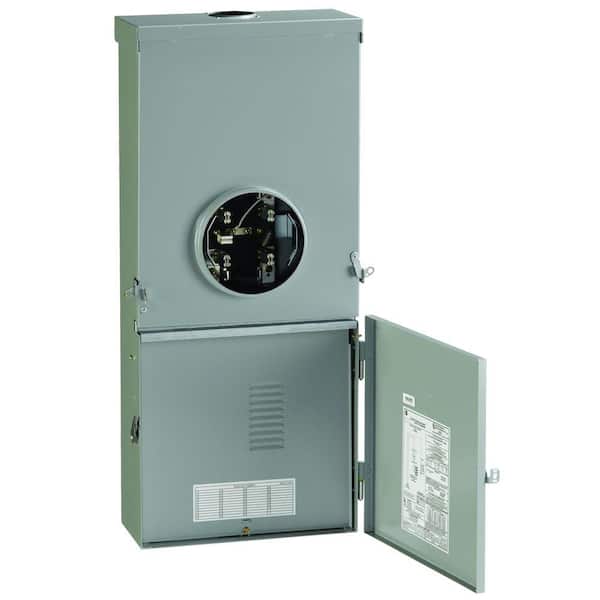

This GE PowerMark Gold 200 Amp 4-Space 8-Circuit Ringless Horn-Bypass Overhead/Underground Combination Load Center features a removable trough to help create a channel for incoming wire. With a NEMA 3R enclosure for outdoor installations, this load center surface mounts to accommodate overhead lines or underground feeder cables.

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Meter Main Combos

current product
PowerMark Gold 200 Amp 4-Space 8-Circuit Ringless Horn-Bypass Overhead/Underground Combination Main Lug Load Center
200 Amp 4-Space 4-Circuit Ringless Overhead/Underground Meter Socket Load CenterHomeline 200 Amp 20-Space 40-Circuit Outdoor Ring-Type Overhead Service Surface Mount Main Breaker CSED Value Pack200 Amp 4 Space 8 Circuit Outdoor Combination Main Breaker/Ringless Meter Socket Load Center
BrandGEMidwest Electric ProductsSquare DGE
NamePowerMark Gold 200 Amp 4-Space 8-Circuit Ringless Horn-Bypass Overhead/Underground Combination Main Lug Load Center200 Amp 4-Space 4-Circuit Ringless Overhead/Underground Meter Socket Load CenterHomeline 200 Amp 20-Space 40-Circuit Outdoor Ring-Type Overhead Service Surface Mount Main Breaker CSED Value Pack200 Amp 4 Space 8 Circuit Outdoor Combination Main Breaker/Ringless Meter Socket Load Center
Price
$7400
$14925
$15600
$16195
Ratings
(10)
(15)
(75)
(6)
Number of Spaces44204
Meter Socket TypeRingless-No BypassRingless-Horn BypassRingRingless-No Bypass
Number of Circuits84408
Load Center TypeMain LugCombinationCombinationCombination
Maximum Amperage (amps)200200200200
Electrical Product TypeLoad CenterLoad CenterLoad CenterLoad Center
Load center width (in.)15.951714.3714.3
Indoor/OutdoorOutdoorOutdoorOutdoorOutdoor
Mounting TypePlug-OnPlug-OnPlug-OnPlug-On
View ProductView ProductView ProductView Product

Specifications

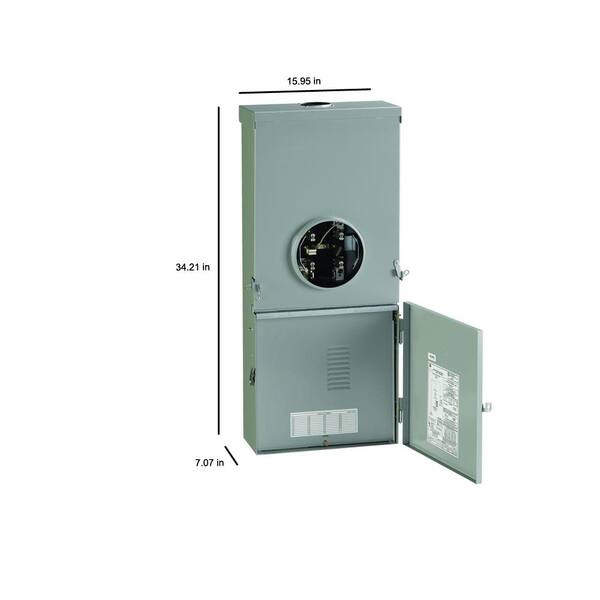

Dimensions

Load center depth (in.)
7.07
Load center height (in.)
34.21
Load center width (in.)
15.95

Details

Electrical Product Type
Load Center
Indoor/Outdoor
Outdoor
Load Center Mounting Type
Surface
Load Center Type
Main Lug
Maximum Amperage (amps)
200
Meter Socket Type
Ringless-No Bypass
Mounting Type
Plug-On
Number of Circuits
8
Number of Gangs
0
Number of Spaces
4
Phase Type
1 Phase
Product Weight (lb.)
40
Returnable
180-Day
Voltage (volts)
240

Warranty / Certifications

Certifications and Listings
UL Listed
Manufacturer Warranty
One year warranty from first use

Questions & Answers

7Questions12Answers

Will this work for exterior disconnect on a mobile home

Asked by Wil January 18, 2021
1
Answer

Thank you for your question. The TSLR420CSCU does not include a disconnect. You will need to check with the local utility authority having jurisdiction for approved disconnects for a mobile home application.

I installed a 200-amp MAIN panel inside my mobile home and had an electrician tell me to get this for the outside main

Asked by Spring September 8, 2019
2
Answers

Sorry about my previous answer. I didn't notice that the panel you've had already installed in your mobile home is 200 amps, so the link provided to the 200 amp main breaker conversion kit is correct for your purpose. You'd still have the issue that the lower cover lacks a knockout for the main breaker.

I installed a 200amp panel inside my mobile home. will this disconnect work and if so what size and type breaker do I ne

Asked by Spring September 5, 2019
2
Answers

This load center is advettised as "field convertible" to main breaker disconnect, but the lower cover panel does not have knockouts to accomodate a main breaker -- the knockouts shown in the photo only accomodate the eight branch circuits. So this load center is really only "field convertible" to a main breaker if you're willing / able to hack our a new hole in the steel panel to accommodate the main breaker. But, if you still want to go this route, you can purchase the 200 amp main breaker conversion kit (https://www.homedepot.com/p/GE-PowerMark-Gold-200-Amp-Double-Pole-Main-Circuit-Breaker-Conversion-Kit-THQMV200DP). I don't know for sure, buut assume that GE offers a similar 100 amp main circuit breaker conversion kit, which might be a more appropriate size for your purpose.

do you sell a amin breaker kit for tslr420cscu

Asked by sparks February 6, 2015
2
Answers

Here's the link for the 200 amp main breaker conversion kit (https://www.homedepot.com/p/GE-PowerMark-Gold-200-Amp-Double-Pole-Main-Circuit-Breaker-Conversion-Kit-THQMV200DP) but note that the lower cover panel does not have knockouts to accomodate a main breaker -- the knockout shown in the photo only accomodate the eight branch circuits. So this load center is really only "field convertible" to a main breaker if you're willing / able to hack out a new hole in the steel panel to accomodate the main breaker.

will this load center handle in house load as well as outside branch circuits.

Asked by pollock January 23, 2014
1
Answer

Hi Pollock, Thanks for your question and interest in this item. More information is needed to accurately answer your question. Please contact our Online Customer Service Department at 800-430-3376 to get more assistance with this item. Our hours of operation are between 6:00 a.m. and 2:00 a.m. Eastern Time daily.

Is there a main breaker?? Don't see one.

Asked by Larry May 27, 2012
2
Answers

Not included. Here's the link for a 200 amp main breaker conversion kit (https://www.homedepot.com/p/GE-PowerMark-Gold-200-Amp-Double-Pole-Main-Circuit-Breaker-Conversion-Kit-THQMV200DP), purchased separately, but note that the lower cover panel does not have knockouts to accomodate a main breaker -- the knockouts shown in the photo only accomodate the eight branch circuits. So this load center is really only "field convertible" to a main breaker if you're willing / able to hack out a new hole in the steel panel to accomodate the main breaker.

how many knock outs on bottom and size for undeground feed

Asked by pj December 2, 2011
2
Answers

Eight knockouts for up to eight single 120v breakers

Customer Reviews

  • 3.9
    out of 10 reviews
  • 50% recommend this product
5star-icon5
4star-icon3
3star-icon0
2star-icon0
1star-icon2
Filter by:
Showing 1-10 of 10 reviews
All went together well...
All went together well
by JASON
My power company required a main cut off breaker at the meter, and while a conversion kit is avai...
My power company required a main cut off breaker at the meter, and while a conversion kit is available, there is still not a slot in the front of the panel for the 200 amp cut off, only slots for the 4 circuits that can be added. I doubt most local codes would allow someone to take a Sawzall to the panel and make a slot. Fortunately, my local Home Depot store had a different 200 amp GE panel, WITH 200 AMP BREAKER ALREADY INSTALLED, that I was able to exchange for... at 3 times the price. Misleading info on the website about this panel that needs to be rectified.
by Dean
1 person found this helpful
Perfect for upgrading older homes with no main breaker. We...
Perfect for upgrading older homes with no main breaker. We install air conditioners all the time and when the capacity needed is not available, this will easily give us the capacity needed.
by Tony
Price is very reasonable, but either the description by GE & Home Depot is false / misleading, or...
Price is very reasonable, but either the description by GE & Home Depot is false / misleading, or the panel, as shipped, has a major defect: This panel is advertised as field convertible to a main breaker (which would it a true meter/main combo as advertised), and while it has lugs that can accomodate a 200 amp main breaker (https://www.homedepot.com/p/GE-PowerMark-Gold-200-Amp-Double-Pole-Main-Circuit-Breaker-Conversion-Kit-THQMV200DP), the cover panel lacks knockouts for the main breaker. If you want to field convert this to a 200 amp main breaker shut off panel, what are you supposed to do? Hack the cover with a Sawzall? An appropriate main breaker is not included or specified. And, as another reviewer quizically pointed out, the panel is promoted as "field convertible to a main breaker", but GE / Home Depot don't bother to tell you the model number of the breaker you'll need to purchase to do so. (Though this review does!)
by hallsvt
1 person found this helpful
Great Quality product , affordable price ...
Great Quality product , affordable price
by Steve
5 Star Review
Rating provided by a verified purchaser
by HomeDepotCustomer
Everything is ok the only thing I noticed that they don't tell you what kind of circuit breaker y...
Everything is ok the only thing I noticed that they don't tell you what kind of circuit breaker you need to use
by Oderfla67
great !
great !
by RalphD66
5 Star Review
Rating provided by a verified purchaser
by HomeDepotCustomer
Received with dented corner. Still functions so keeping it. ...
Received with dented corner. Still functions so keeping it.
by John
