Model # DCS1100

Internet #203079353

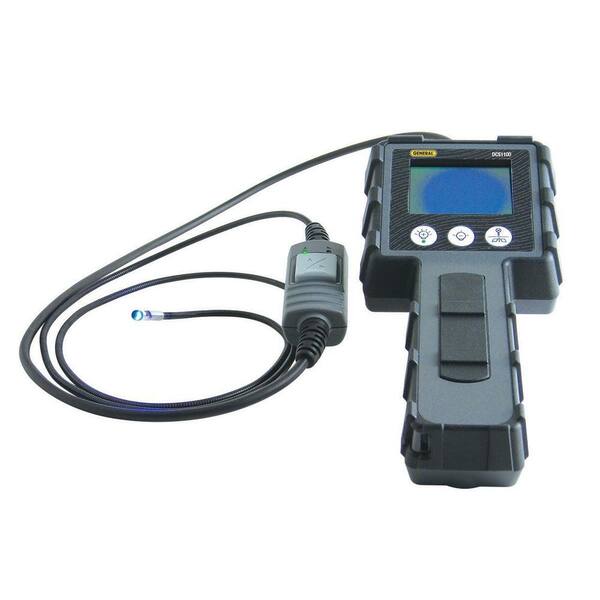

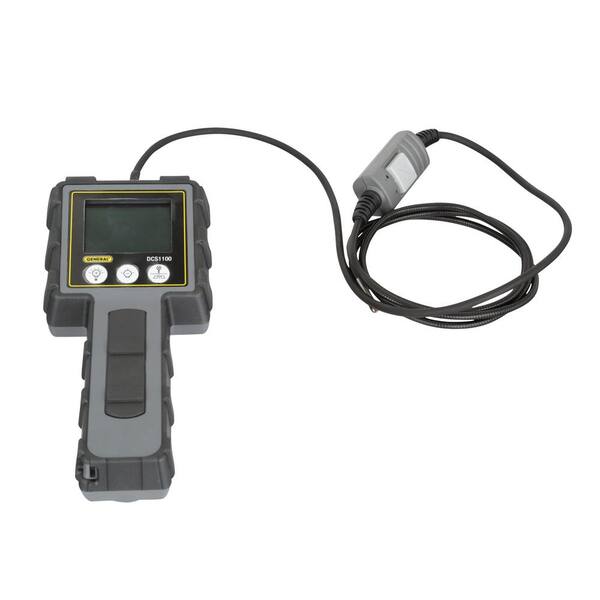

General Tools 4.9 mm Dia High Performance Video Inspection Scope with Front and Side View Probe
0681035015124

General Tools

4.9 mm Dia High Performance Video Inspection Scope with Front and Side View Probe

$55920 /each
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

General Tools has grown to become the recognized industry leader for specialty hand tools and instruments. The standard probe of this high-performance camera scope offers the ability to switch quickly between straight-on and 90° views. The right angle feature also allows 360° rotational viewing, offering a panoramic view of the area being inspected - much like a submarine’s periscope scanning the horizon. The super slim, 4.9 mm (0.193 in.) Dia probe includes 2 separate cameras, each with its own built-in light source, to make possible inspections through very small openings. The DCS1100 features a 2.4 in. LCD screen with a resolution of 320x240 pixels. Optional probes for this unit include ultra-slim 3.9 mm Dia probes and 5.5 mm Dia soft-metal and flexible-obedient probes of various lengths. The DCS1100 is ideally suited for aircraft/automotive inspection, maintenance and repair tasks, such as inspecting cylinders, valves, diesel injectors and glow port plugs, looking behind body panels and under the dashboard to optimize cable routing, hacking for corrosion and wear in hard-to-see areas and inspecting fluid lines for leaks.
  • Super-slim 4.9 mm (0.193 in.) Dia x 1 m long high-performance flexible-obedient probe
  • Separate controls for brightness up and down and 1.5x zooming/mirroring of video
  • Video out jack for connecting to a computer monitor or TV
  • Powered by 4 AA batteries
  • Switchable dual views allow for straight-on and 90° viewing with full 360° rotational viewing
  • Minimum focal distance of 1/4 in. allows for extremely close-up viewing
  • Probe is flexible-obedient, meaning it retains the shape a user needs
  • Light source: 4 adjustable white LEDs
  • Resistant to vibration and air pressure changes
  • Machine oil, gasoline and diesel fuel proof
  • Water and dust proof
  • Includes: console, front/side view probe, custom hard case, 6 ft. video cable, user's manual, 1-year limited warranty

Product Overview

Model #: DCS1100
Internet #: 203079353

General Tools has grown to become the recognized industry leader for specialty hand tools and instruments. The standard probe of this high-performance camera scope offers the ability to switch quickly between straight-on and 90° views. The right angle feature also allows 360° rotational viewing, offering a panoramic view of the area being inspected - much like a submarine’s periscope scanning the horizon. The super slim, 4.9 mm (0.193 in.) Dia probe includes 2 separate cameras, each with its own built-in light source, to make possible inspections through very small openings. The DCS1100 features a 2.4 in. LCD screen with a resolution of 320x240 pixels. Optional probes for this unit include ultra-slim 3.9 mm Dia probes and 5.5 mm Dia soft-metal and flexible-obedient probes of various lengths. The DCS1100 is ideally suited for aircraft/automotive inspection, maintenance and repair tasks, such as inspecting cylinders, valves, diesel injectors and glow port plugs, looking behind body panels and under the dashboard to optimize cable routing, hacking for corrosion and wear in hard-to-see areas and inspecting fluid lines for leaks.

California residents: see   Proposition 65 information

  • Super-slim 4.9 mm (0.193 in.) Dia x 1 m long high-performance flexible-obedient probe
  • Separate controls for brightness up and down and 1.5x zooming/mirroring of video
  • Video out jack for connecting to a computer monitor or TV
  • Powered by 4 AA batteries
  • Switchable dual views allow for straight-on and 90° viewing with full 360° rotational viewing
  • Minimum focal distance of 1/4 in. allows for extremely close-up viewing
  • Probe is flexible-obedient, meaning it retains the shape a user needs
  • Light source: 4 adjustable white LEDs
  • Resistant to vibration and air pressure changes
  • Machine oil, gasoline and diesel fuel proof
  • Water and dust proof
  • Includes: console, front/side view probe, custom hard case, 6 ft. video cable, user's manual, 1-year limited warranty
