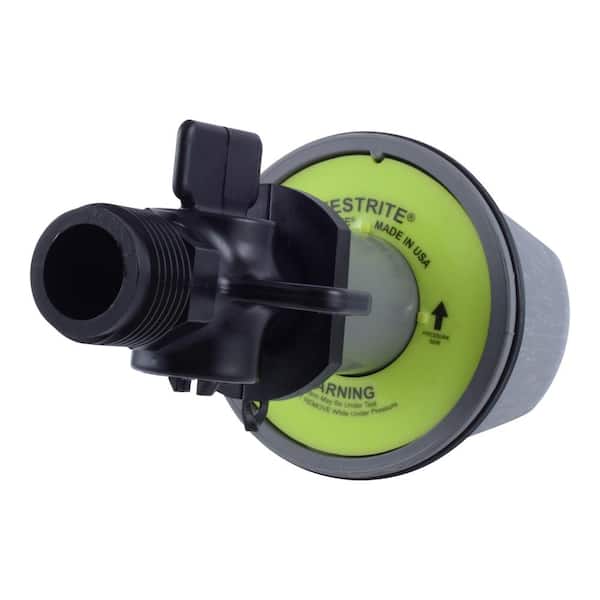

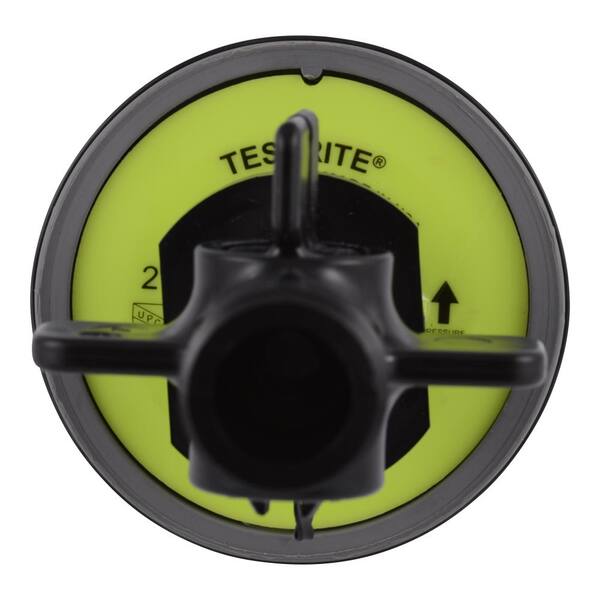

Testrite 2 in. PVC Schedule 40 Test Plug with Valve Fitting

$3991
  • Used for DWV testing
  • Reusable Plug
  • Performs 5 times faster than traditional inflatable device
  • See More Details
Store
0 in stock
Text to Me

Frequently Bought Together

++
Price:
$3991

Product Overview

The Holdrite TESTRITE test wedges are used in conjunction with TESTRITE tees, which allow temporary blocking of the DWV stack for testing. TESTRITE test wedges meet plumbing code requirements and are rated up to 50 ft. of head pressure 22 psi 5 floors and perform up to 5 times faster than inflatable DWV testing devices. TESTRITE test wedges are removable and reusable and are available in 2 in., 3 in. and 4 in.
  • 2 in. TESTRITE test wedge
  • Compatible with TESTRITE PVC, ABS and no-hub cast iron test/clean out tees
  • TESTRITE test wedges are reusable and allow for 2X more uses than inflatable devices
  • Lab tested and IAPMO (UPC/IPC) listed
  • For use with TESTRITE test/clean out tees only
  • Triple seal protection
  • Shop all Holdrite Water Heater Accessories and Pipe Hangers

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Testrite 2 in. PVC Schedule 40 Test Plug with Valve Fitting

Specifications

Dimensions

Actual inside diameter (in.)
2
Actual outside diameter (in.)
2
Nominal Inside Pipe Diameter (In.)
2"
Pipe Wall Thickness (In.)
.4
Product Length (ft.)
.42 ft

Details

Application
Non-Potable Water
Color Family
Gray
Color/Finish
Gray
Connectivity
Threaded
Core Type
Cellular Core
DWV
DWV
End Type
Plain End
Material
Nylon
Maximum Flow Rate (gallons per minute)
50
Maximum Working Temperature (F)
140
Minimum working temperature (F)
33
Number in Package
1
Pack Size
1
Pipe Features
Corrosion Resistant
Pipe or Fitting Product Type
Valve
Product Weight (lb.)
.410
Returnable
90-Day
Schedule Type
Not Rated

Warranty / Certifications

Certifications and Listings
IAPMO Listed
Manufacturer Warranty
For warranty information on this product, please call our Internet Customer Service Center at 1-877-700-4242.

Questions & Answers

Typical questions asked about products:

  • Is the product durable?
  • Is the product easy to use?
  • What are the dimensions of the product?

Customer Reviews

  • 5
    out of 2 reviews
  • 100% recommend this product
Filter by:
Showing 1-2 of 2 reviews
Testrite 2 in. PVC Schedule 40 Test Plug with Valve Fitting by Holdrite Packaging Contents: One p...
Testrite 2 in. PVC Schedule 40 Test Plug with Valve Fitting by Holdrite Packaging Contents: One plug with fitting First Impressions: Simple all-in-one tool Description: The company’s own description states: The Holdrite TESTRITE test wedges are used in conjunction with TESTRITE tees, which allow temporary blocking of the DWV stack for testing. TESTRITE test wedges meet plumbing code requirements and are rated up to 50 ft. of head pressure 22 psi 5 floors and perform up to 5 times faster than inflatable DWV testing devices. TESTRITE test wedges are removable and reusable and are available in 2 in., 3 in. and 4 in. Color: Gray. Very good instructions and packaging. Usage: As mentioned before, this works in conjunction with the same-branded TESTRITE tee. The tee comes with the spanner ring to hold it into place. Whether you are a professional or are simply building your own home to code, this is one handy tool. It is used to make sure you have no leaks in your DWV piping. In general terms, it is normally used with the tee, which has already been installed low in the building. The plug is removed from the tee, along with the ring, and this device is simply placed in the tee. It is clearly marked as to which side is up. Then the ring is screwed back over the valve to hold it into place and keep it water-tight. Once that is done, there are two methods to fill the stack or whole system with water for testing. One is to go on the roof and fill the vent pipe to the top. The other is to fill the system with water from a hose attached to the valve itself. This can be left for the prescribed amount of time, and allows the plumber to check for leaks thru-out the building. The valve has two adjustments. First is the quarter-turn knob to allow water from a hose to enter the system. Second is that the whole stem unscrews to a stop and allows the whole stack to drain out the septic system right thru the inner part of the tee itself. No fuss, no muss. The system only requires their own tee to be specified in the building plans at the lowest point. It shouldn’t cost an extra ten bucks. Overall Thoughts: Love it. Easy to use. If you do much new plumbing, it is a must-have.
by Reviewer
  • Recommended Product
Awesome product I wish I would’ve knew about this year’s...
Awesome product I wish I would’ve knew about this year’s ago I’ve tested my fourth drain now and this thing works great
by ROBERT
  • Verified Purchase
