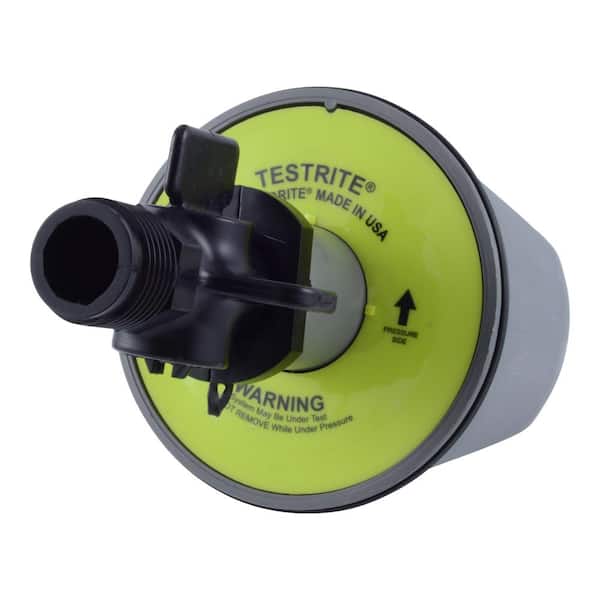

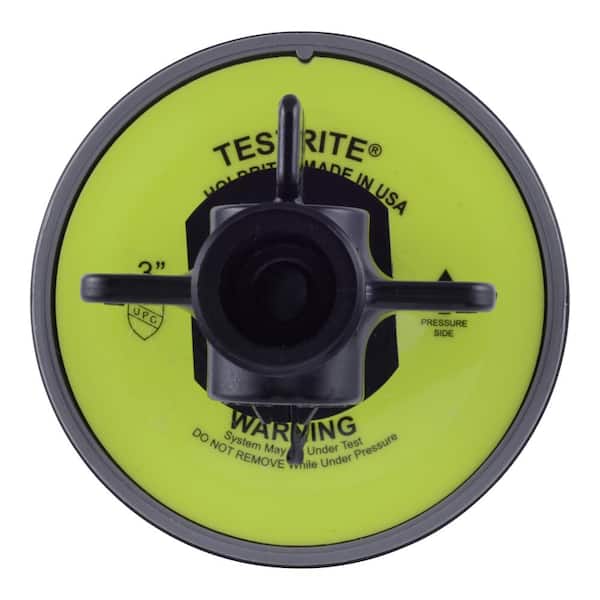

Testrite 3 in. PVC Schedule 40 Test Plug with Valve Fitting

$4496
  • Triple seal protection
  • For use with TESTRITE test/clean out tees only
  • Lab tested and IAPMO (UPC/IPC) listed
  • See More Details
Store
0 in stock
Text to Me

Frequently Bought Together

Best Seller
+
+
Price:
$4496

Product Overview

The Holdrite TESTRITE test wedges with valves are used in conjunction with TESTRITE tees, which allow temporary blocking of the DWV stack for testing. TESTRITE test wedges with valves meet plumbing code requirements and are rated up to 50 ft. of head pressure/22 psi/5 floors and perform up to 5 times faster than inflatable DWV testing devices. TESTRITE test wedges with valves are removable and reusable and are available in 2 in., 3 in. and 4 in.
  • 3 in. TESTRITE test wedge with 3/4 in. hose thread valve
  • Compatible with TESTRITE PVC, ABS and no-hub cast iron test/clean out tees
  • TESTRITE test wedges are reusable and allow for 2X more uses than inflatable devices
  • Lab tested and IAPMO (UPC/IPC) listed
  • For use with TESTRITE test/clean out tees only
  • Triple seal protection

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Actual inside diameter (in.)
2
Actual outside diameter (in.)
2
Nominal Inside Pipe Diameter (In.)
3"
Pipe Wall Thickness (In.)
.4
Product Length (ft.)
.42 ft

Details

Application
Non-Potable Water
Color Family
Gray
Color/Finish
Gray
Connectivity
Threaded
Core Type
Cellular Core
DWV
DWV
End Type
Plain End
Material
Nylon
Maximum Flow Rate (gallons per minute)
50
Maximum Working Temperature (F)
140
Minimum working temperature (F)
140
Pack Size
1
Pipe Features
No Additional Features
Pipe or Fitting Product Type
Valve
Product Weight (lb.)
.650 lb
Schedule Type
Not Rated

Warranty / Certifications

Certifications and Listings
IAPMO Listed
Manufacturer Warranty
For warranty information on this product, please call our Internet Customer Service Center at 1-877-700-4242.

Questions & Answers

Typical questions asked about products:

  • Is the product durable?
  • Is the product easy to use?
  • What are the dimensions of the product?

Customer Reviews

  • 3
    out of 3 reviews
  • 100% recommend this product
Filter by:
Showing 1-3 of 3 reviews
This product makes testing whole house pluming easy. It is a two part system that uses this press...
This product makes testing whole house pluming easy. It is a two part system that uses this pressure testing unit, along with the permanent piece which is the Holdrite 3" Testrite PVC DWV Test/Clean out Tee with Plug which I have pictured below. If pluming requires Inspection, this makes the inspectors job much easier.. The product comes with very detailed instructions and is easy to use.
by joey
  • Recommended Product
Intended for use as part of a system comprising the test plug and the corresponding cleanout Tee/...
Intended for use as part of a system comprising the test plug and the corresponding cleanout Tee/plug, this item is not compatible with standard cleanout Tees, therefore its use will be limited to those installations where the appropriate fitting was already installed. It appears to be a well-made product, although the sealing function is accomplished by means of several O-rings with an “X” profile cross-section and is, therefore, something that will require periodic replacement due to wear and/or damage if the user puts this in a tool box with other objects. The cleanout plug also utilizes the same O-ring construction. Both the cleanout plug and the test plug are retained by a ring (requiring a spanner type wrench) threaded into the cleanout. The cleanout port is larger in diameter than a standard cleanout Tee of the same pipe size and, although the flush fit of the retaining ring provides some additional clearance to the finish wall, its extra width may create its own clearance issues. A ¾ inch male hose fitting is provided (with a ball valve for isolation) for filling and/or draining. The use of this test plug will be predicated upon what configuration cleanouts are installed in the building’s DWV piping system.
by DK
Response from RWC SupportFeb 1, 2021
Hello, Don. Thank you for your feedback regarding the HoldRite TestRite Test Plug. We will take this feedback into consideration when reviewing the product for updates. We would be happy learn more about your experience. Please reach out to our Customer Service Team at 1-877-700-4242 so we can answer any questions you may have. SharkBiteCashAcme
  • Recommended Product
Didn't fit test tee like it said...
Didn't fit test tee like it said
by HomeDepotCustomer
Response from RWC SupportJun 1, 2021
Hello, we apologize for the issue you experienced with the 3 in. HoldRite TestRite Test Plug with Valve. We would be happy to learn more about the problem and help provide a solution. Please reach out to our Customer Service Team at 1-877-700-4242 so we can assist. SharkBiteCashAcme
