The unique compression design makes it the easiest underground gas fitting on the market. No special tools or skills required.
With HOME-FLEX UNDERGROUND, just cut your pipe and insert the included stiffener. There’s no need to chamfer the pipe, only smooth away any burrs and then tighten the nuts.
Easily connect runs of pipe to another pipe run, a meter riser, or transition fitting with our one-of-a-kind fittings.
It is simple to change the direction of your pipe run with our different fitting options.
With the ability to remove and reuse the fittings again and again, you can add a tee and make a new line whenever you want.
This MDPE pipe is easier to use than standard steel pipe, and the polyethylene construction will never rust.
Easy to follow steps and a simple compression design makes install a breeze.
Quickly install yourself with no need to purchase professional tools or services.
When changing the location or adding to a line, just remove and reinstall.
Use with confidence knowing the products are made to withstand high PSI ratings.
All pipe and fittings are IPS (Iron Pipe Size) and are fully compatible with other IPS polyethylene pipe.
These gas pipe and fittings are approved for underground application.
A: I would not imagine this method of use is up to any building code, but I see no reason why it would not *work*
A: Hi, Eddie. No. Underground PE pipe and components should NEVER be used in a home or under a foundation with a structure on it. Please IGNORE "community answers" indicating otherwise.
A: The Home-Flex installation manual specifies that the product is NOT to be installed inside or under a building. It's intended for direct burial.
A: I used this pipe for a propane line. Propane is heavier than air, so I would suspect that any leak in a low enclosed area could potentially be dangerous. I myself would not use these connectors in any area that could allow the accumulation of gas.
A: Hi Stella, if you could give me a call, I can tell you more about how to go about this. (661) 257-3923 Ext 1010. My Name is Jon. I am here M-F from 8-5 Los Angeles time.
A: No. HOME-FLEX Underground Fittings are for use on yellow poly gas pipe. These fittings are not approved for use on any other material. For our CSST we use iron Tees when needed. Fit a HOME-FLEX CSST pipe thread adapter to an iron Tee o your choice. Then connect each segment of CSST. For more info, give us a call. 661-257-3923. We are here from 8-5 Los Angeles time M-F. Ask for Jon.
A: Yes it works with any manufacturer 3/4" DR 11 PE IPS pipe. When I installed mine - I tested it to 60 psi overnight and it held - 6 hours - no pressure change. I tested it after partially burring the pipe and leaving the fittings exposed. After pressurizing with compressed air, I sprayed soapy water on all the fittings (90 and tees). No bubbles. Purge air from line prior to opening up gas meter. Installed below ground - above ground used malleable iron pipe and fittings. I installed downstream of the gas meter. If using for home on NG lines the pressure is 7 -inches water column. The pressure after the utility provider meter is only 7 inches water column standard so testing to 60 psi is way overkill (60psi = 1663 inches of water column). It is very easy to install and comes with instructions on how to install properly.
A: Yes, these HOME-FLEX Underground Tee fittings are for use on this type of yellow poly gas pipe. Please have a look at our HOME-FLEX Underground System Design and Installation Manual. here is a link: http://homeflex.com/downloads/HOME-FLEX_Underground_Manual.pdf For more info, give us a call. 661-257-3923. We are here from 8-5 Los Angeles time M-F. Ask for Jon.
A: That’s what I used in my back yard for two fire pits. Worked great and super easy.

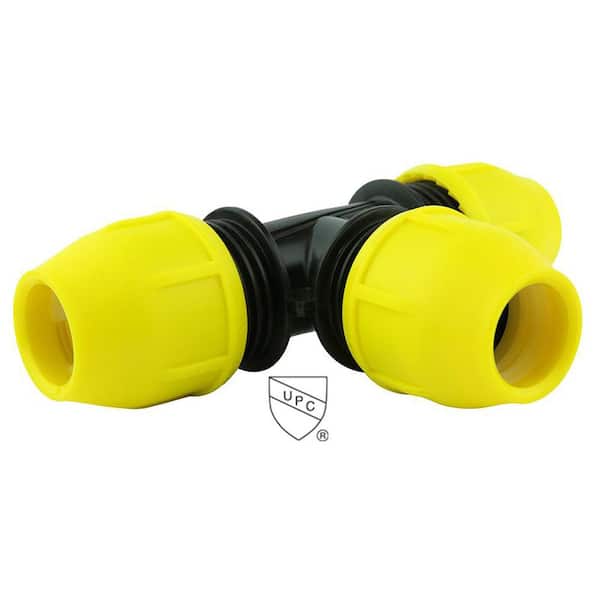

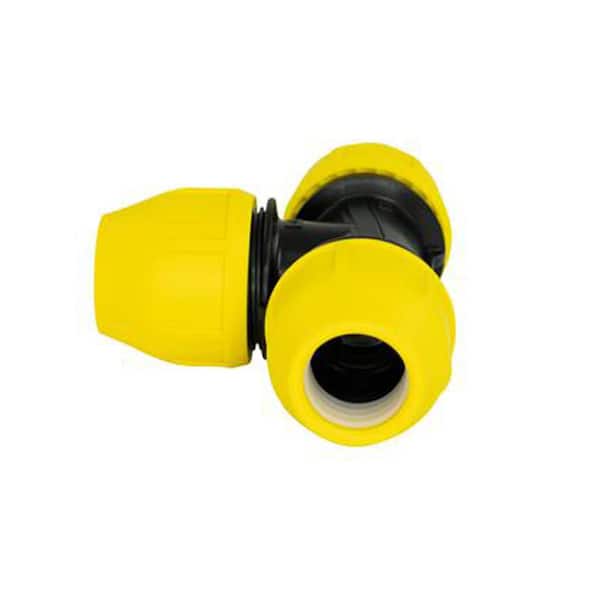

|Name||1 in. IPS DR 11 Underground Yellow Poly Gas Pipe Tee||2 in. IPS DR 11 Underground Yellow Poly Gas Pipe Coupler||1-1/2 in. IPS DR 11 Underground Yellow Poly Gas Pipe 90-Degree Elbow||2 in. IPS DR 11 Underground Yellow Poly Gas Pipe 90-Degree Elbow|
|Fitting 1 size||1"||2"||1-1/2"||2"|
|Fitting or Connector Type||Tee||Coupling||Elbow||Elbow|
|Application||Natural Gas,Propane||Natural Gas,Propane||Natural Gas,Propane||Natural Gas,Propane|
|Features||Underground Rated,Underground Use||Underground Rated||Underground Rated,Underground Use||Underground Rated,Underground Use|
|THD SO SKU||1002240604|
|View Product||View Product||View Product||View Product|
