1 in. x 1 in. x 3/4 in. CSST Stainless Steel FIPT Manifold

$2460
  • For use with Natural Gas and Liquid Propane applications
  • Features high-quality, coated steel for durability
  • Installers should be certified to install HOME-FLEX CSST
  • See More Details

Frequently Bought Together

Exclusive
+
+
Price:
$2460

Product Overview

Easy to use fittings

Easy to Use Fittings

With the fewest parts on the market the CSST fittings are a breeze to install

Image of pipes packaged for easy transport

Easy to Transport

HOME-FLEX CSST comes in coils, so it takes up less space and is easier to transport than black pipe

Image of hand holding a pipe that easily bends

Easily Bend Around Corners

Simply bend around corner without cutting, threading, or additional fittings

Image of male and female fitting

Male & Female Fittings

Standard Male and Female Pipe Threads for easy connections

Image of termination flange

Termination Flange

Provides a smooth transition between csst and standard pipe

Image of brass union

Union Fittings

Easily extend your run of CSST

Image of bonding clamp

Bonding Clamp

Bond or ground CSST or rigid pipe

Image of flexible CSST that eliminates need for elbow fittings to turn corners

Easily Bends Around Corners

Flexible CSST eliminates need for elbow fittings to turn corners

Image of scale to show that CSST pipe is 80% lighter than steel pipe

Lighter than Steel Pipe

CSST pipe is 80% lighter than steel pipe

Image of timer to show that pipe is 65% faster to install than black pipe

Faster Installation

Over 65% faster to install than black pipe, with no need to cut or thread

Image of a pipe with line through it to show that you need fewer fittings to install

Fewer Fitting Connections

With fewer fittings needed your install will be faster and safer

Image of earthquake icon to show that CSST pipe is safer than black pipe in an earthquake

Seismically Qualified

Due to the flexible nature CSST is much safer than black pipe in an earthquake

Image of screwdriver and wrench to indicate the tools you need to complete the project

Complete the Project

See HOME-FLEX CSST Collection for all the tools you need to complete the project

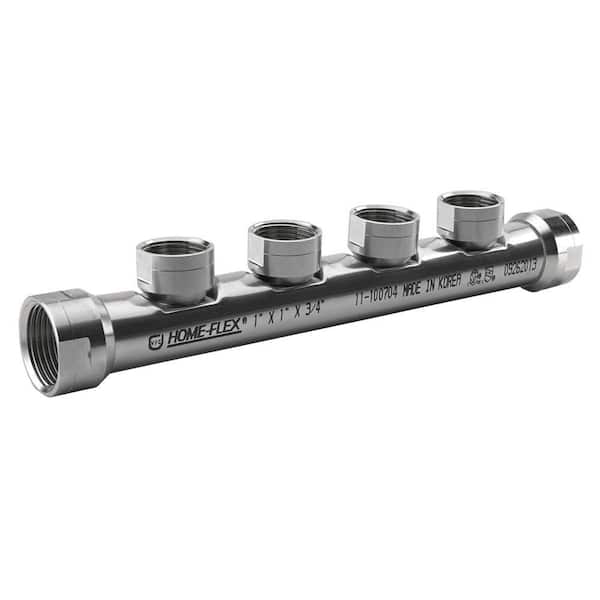

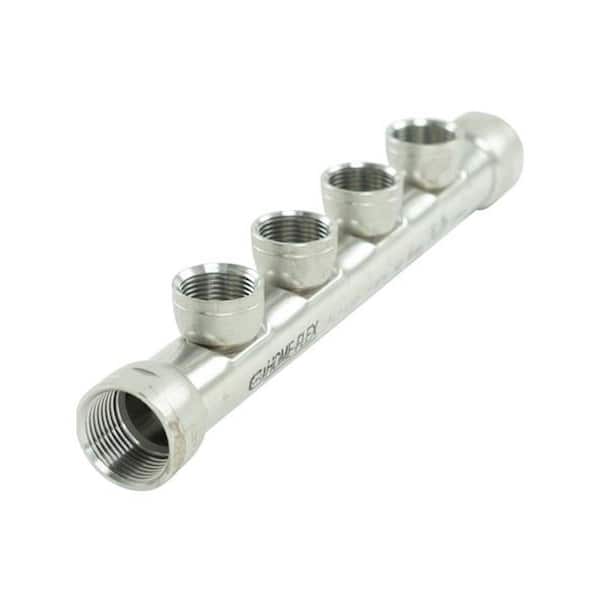

The HOME-FLEX Manifold is a central distribution point for multiple runs of CSST. It uses standard pipe thread connections for use with valves, steel pipe or CSST male adapters. It is approved for concealed use.

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

1 in. x 1 in. x 3/4 in. CSST Stainless Steel FIPT Manifold

Specifications

Dimensions

Fitting 1 size
1"
Fitting 2 size
3/4"
Inlet Size (In.)
1"
Product Depth (in.)
10.5
Product Height (in.)
3
Product Width (in.)
2

Details

Application
Natural Gas,Propane
Color Family
Silver
Color/Finish
Silver
Compatible Pipe Material
Steel
Connection 1
FPT
Connection 2
FPT
Connectivity
Threaded
Features
Side Inlet
Fitting or Connector Type
Manifold
Fitting/ Connector Collection
Specialty
Material
Stainless Steel
Maximum working pressure (psi)
5
Maximum Working Temperature (F)
200
Number of Ports
6
Pack Size
1
Pipe or Fitting Product Type
Fittings & Connectors
Product Weight (lb.)
.79
Reducing Fitting
Yes
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
30 Days

Questions & Answers

Typical questions asked about products:

  • Is the product durable?
  • Is the product easy to use?
  • What are the dimensions of the product?

Customer Reviews

  • 3.7
    out of 36 reviews
  • 58% recommend this product
Filter by:
Showing 1-10 of 36 reviews
Horrible horrible. Failed catastrophically. The welds are inadequate. The material is substandar...
Horrible horrible. Failed catastrophically. The welds are inadequate. The material is substandard. It literally "flexed" under pressure as seen in the photo.
by Bil
Response from VPC, Home-Flex ExpertApr 30, 2018
Hi Bill, Thank you for your input, but we would really appreciate some additional information in order to understand why you are so dissatisfied. This manifold is for use in our fuel gas piping system and not water. It is not approved for use with water. Unlike water, fuel gas piping systems operate at very low pressure. This manifold is rated for a maximum operating pressure of 25 psig. How exactly did you attempt to use it? How much pressure did you put in it? If possible, please give me a call (661) 257-3923 I am here from 8-5 Pacific Time M-F. Ask for Jon ValenciaPipe
    1 person found this helpful
    buy the pipe fittings you need and bypass this product
    This product is made with poor quality Korean steel, and the threads in this manifold have such poor tolerances that cause issues during installation. The brand home Flex is ideally suited for this product. When you get it home it will flex. If this product would not have failed during installation it could have saved me some time and money. I purchased this to simplify installation. I should have known better. It turned out the1/2 inch ports where the fittings and pipes I needed did not thread well into this part. Some fittings would only start one or two threads before needing a wrench to continue. This should have been my first clue. I finally attached the required valves I needed and plugged the extra holes. During installation I threaded the manifold in the gas line and during the installation of the final pipe on the far side of the manifold the main shaft of the manifold twisted. This issue was caused by the user, but if the manifold wasn't made of light gauge steel a normal level of torque wouldn't have twisted the steel main shaft. Currently the main shaft is twisted and I wont bother trying to return it due to my error. I just would like to warn any one looking to save a few minutes and a few dollars to just buy the pipe fittings you need and assemble them yourself.
    by Jon
    Response from VPC, Home-Flex ExpertJan 26, 2016
    Hi Malwarebane
    I am sorry that you are not satisfied with our Home-Flex CSST manifold. It is constructed of 304 stainless steel tubing and was designed to compliment our line of Home-Flex CSST. Our system is intended to save weight over conventional Iron and galvanized pipe. The female pipe thread fittings on the ends of the run have flats on them, so they can be gripped with a wrench. Doing this eliminates twisting the main body. The outlets are manufactured to industry standards for female pipe thread. There are several possibilities that may have prevented your fittings from properly threading into our manifold. Such possibilities include using the wrong size/type fitting, damaged threads on the manifold or fitting, or the use of too much thread sealing tape on the fittings. I would like to have had the opportunity to hear more about your particular installation in order to provide some technical assistance. If there is anything that I can do assist you, please give me a call (661) 257-3923. I am here M-F from 8-5 PM Pacific time. Ask for Jon ValenciaPipe
    • DIY
    3 people found this helpful
    Now available online - you're welcome
    I determined I needed a 1 inch manifold. It is shown in the Home-Flex instructions as available. The problem was ordering something not available online without a sku. I first contacted the factory to verify it was available. Then contacted my local Home Depot plumbing Manager who contacted Home-Flex for the sku. It took 10 days but it was worth the wait - the final install looks great and is completely leak free. A few days later it shows up online for all. It's a well built unit. I used reducers to connect three 1/2 inch lines - only the furnace needed a 3/4 inch line.
    by GDiaz
    • DIY
    • Recommended Product
    3 people found this helpful
    Good in theroy
    I like the idea of this rather than using tee's and nipples to accomplish the same thing. After getting it all assembled with 4 valves and pipe on the end, it didn't pass the pressure test, one of the welds had a pin hole leak. It was a lot to dismantle, ended up building my own out of tee's because I could wait for another one to show up.
    by CROSSMARK
      Great part, just make sure you use a back up...
      Great part, just make sure you use a back up wrench on the fittings, if you torque the manifold itself the bungs will break off.
      by JONATHAN
      • Verified Purchase
      by DAVID
      • Verified Purchase
      Very thin metal. Almost impossible to tighten fittings without destroying...
      Very thin metal. Almost impossible to tighten fittings without destroying the manifold. I wound up throwing it away and buying a much more substantial one.
      by WCS
      Response from VPC, Home-Flex ExpertApr 12, 2021
      Hi, WCS - It's unfortunate you had difficulties with our ss manifold. It is important to support the ports with channel locks / pliers when affixing a gas line. ValenciaPipe
      • Verified Purchase
      Rating provided by a verified purchaser...
      Rating provided by a verified purchaser
      by HomeDepotCustomer
      • Verified Purchase
      Rating provided by a verified purchaser...
      Rating provided by a verified purchaser
      by HomeDepotCustomer
      • Verified Purchase
      I returned the product, but it appeared to be well-made...
      I returned the product, but it appeared to be well-made and was priced well. My issue is that I needed to install shutoff valves in a couple positions and the spacing between connection points wasn't ideal for that. Could have made it work but felt more comfortable making up a manifold from parts.
      by HomeDepotCustomer
      • Verified Purchase
