- Bright LCD screen displays Pass/Fail status and errors
- Shielded RJ45 port interfaces on main unit and remote
- For twisted pair CAT5e, CAT6, and CAT6A cables
- View More Details
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Ask about this product
Get an answer now with AI
Magic Apron Assistant is an AI virtual assistant. By proceeding, you consent to the recording and use of your information by The Home Depot (and authorized third parties). More information
Product Details
About This Product

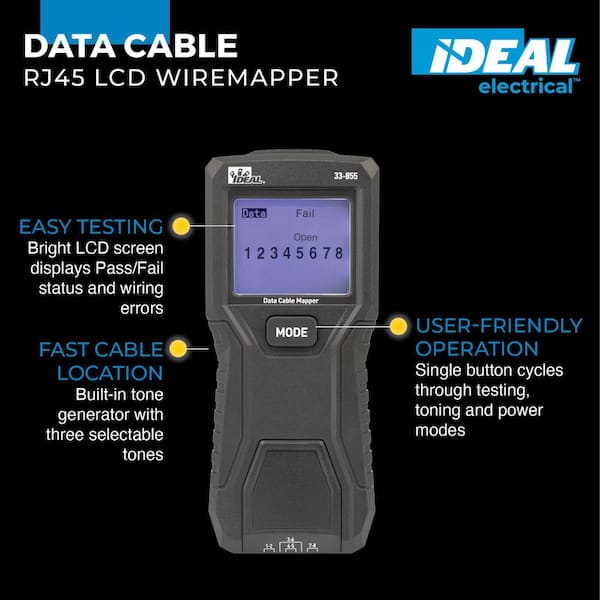

The Data Cable RJ45 LCD Wiremapper makes your data and ethernet cable testing faster and simpler. Designed exclusively for RJ45 cables, this tester is a compact and simplified version of our popular 33-856 VDV Tester. The bright, backlit LCD screen displays Pass/Fail status as well as pin-by-pin errors like opens, shorts, miswires, and split pairs. A built-in tone generator with three tones helps you find cables in crowded bundles, while the self-storing detachable remote makes it easy to test long runs. With the push of a button, you can easily switch between testing, toning, and power options. For verifying wiring and continuity of low voltage and data communication cables, this tool helps you get the job done right.
Highlights
- VERIFY DATA WIRING: Bright, backlit LCD screen shows Pass/Fail status and detailed pin-by-pin errors including shorts, opens, miswires, and split pairs
- BUILT FOR RJ45: Designed specifically for testing twisted pair cables like CAT5e, CAT6, and CAT6a
- RELIABLE READINGS: Shielded RJ45 port interfaces on both the main unit and remote ensure accurate readings
- USER-FRIENDLY OPERATION: Easily cycle through testing, toning, and power modes with the push of a single button
- FAST CABLE LOCATION: Integrated tone generator with three selectable tones makes locating cables in bundles easier
- SELF-STORING REMOTE: Terminate the far end of cable runs with self-storing detachable remote
- COMPACT: Portable design fits in your pocket without adding bulk
- Click here for more information on Electronic Recycling Programs
- Return Policy
- California residentssee Prop 65 WARNINGS
Product Information
Specifications
Dimensions
Product Depth (in.) | 1.1 in |
|---|---|
Product Width (in.) | 2.2 in |
Details
Electronics Included Components | Batteries |
|---|---|
Features | No Additional Features |
Returnable | 90-Day |
Warranty / Certifications
Certifications and Listings | No Certifications or Listings |
|---|---|
Manufacturer Warranty | 1 year |
