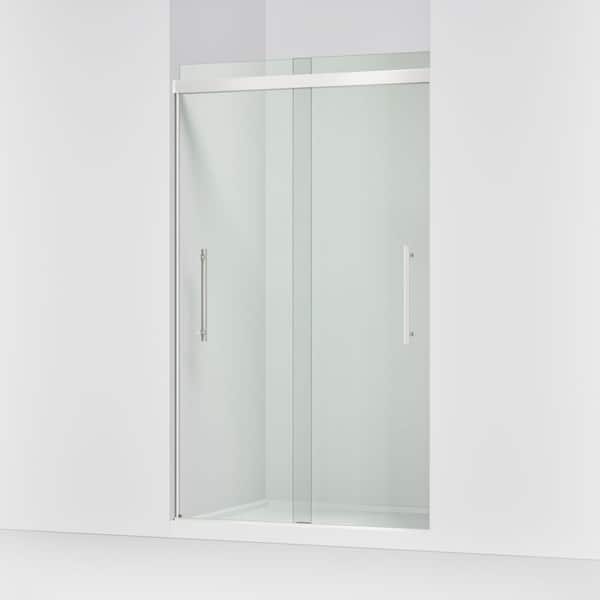

Pleat 45-48 in. W x 79 in. H Frameless Sliding Shower Door in Bright Polished Silver with 5/16 in. Thick Clear Glass
- 5/16 in.-thick Crystal Clear tempered glass with coating
- Frameless sliding shower door
- Vertical handles
- View More Details
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Ask about this product
Get an answer now with AI
Magic Apron Assistant is an AI virtual assistant. By proceeding, you consent to the recording and use of your information by The Home Depot (and authorized third parties). More information
Product Details
About This Product

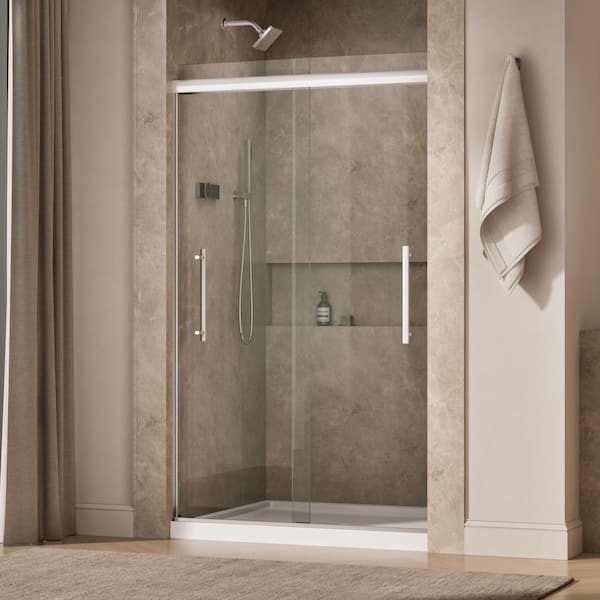

With modern style and crisp, clean design lines, KOHLER Pleat brings new technology to the contemporary bath. Pleat clear frameless sliding shower doors feature a double header which conceals the wheels and door tracking system, while allowing the glass panels to rise above the header, giving the 79-1/16 in.tall door a sleek, lofted and airy look. The stays closed feature inside the header keeps the door firmly closed, providing excellent water containment, and fully bypassable glass panels make installation easier than ever and allow for adjustability while the door is hanging. Pleat's 5/16 in. thick glass offers a luxurious, heavier feel.
Highlights
- Shower door is 79-1/16 in. high, with a lofty 73 in. of walk-through height
- Frameless design emphasizes glass and creates a sleek, minimalist look
- Double header conceals wheels and door tracking system while allowing glass panels to rise above the header, giving the door a lofted and airy look
- Stays closed feature inside the header keeps door firmly closed, providing excellent water containment
- Smooth, easy-to-clean wall jambs
- 16 in. vertical handles
- Frameless, 5/16 in. (8 mm) thick crystal clear tempered glass door
- Anodized aluminum hardware prevents rusting or corrosion
- Fits opening widths 44-5/8 in. to 47-5/8 in. (1210 mm 1514 mm)
- Innovative roller design simplifies installation and provides out-of-plumb adjustability while glass is installed
- 3/8 in. (9.5 mm) out-of-plumb adjustability per side allows for simpler installation
- Can be installed to open to the left or right
- Not for use in hospitality
- For residential use only
- Included components: hardware kit
- CleanCoat+ repels water; prevents dirt and minerals from collecting, making it easier to remove hard water spots.
- All Kohler shower doors are proudly engineered and assembled in the USA
- Return Policy
Product Information
Specifications
Dimensions
Approximate Max Installed Width (in.) | 47.63 in. |
|---|---|
Door Glass Thickness (in.) | 5/16" |
Installation Width | 44.625 in. - 47.625 in. |
Product Height (in.) | 79.0625 in |
Walk Through Opening Height (in.) | 73 in |
Walk Through Opening Width (in.) | 18.8125 in. - 21.8125 in. |
Details
Door Handle Type | Bar |
|---|---|
Door Type | Sliding |
Features | No Additional Features |
Frame Finish | Bright Polished Silver |
Frame Type | Frameless |
Frame/Hardware Finish Family | Silver |
Glass Finish | Crystal Clear |
Glass Texture | Clear |
Handle Finish | Silver |
Included | Door Hardware, Frame Hardware, Mounting Hardware |
Installation Area | Alcove |
Max Installed Width (in.) | 47.625 in |
Returnable | 90-Day |
Style | Traditional |
Warranty / Certifications
Certifications and Listings | ANSI Certified |
|---|---|
Manufacturer Warranty | One Year Limited Warranty |
Questions & Answers
do both doors slide?
Hello Reggie, this is Quinn with Kohler Co. I am happy to address your question. Shower door K-707600-8D3-SHP only ONE door slides and one is fixed. It can be installed as a right or left opening. Thank you for choosing Kohler.
Do both doors slide?
Hello Liz, this is Keisha with Kohler Co. I am happy to address your question. Both of the doors will slide on 707600-8D3-SHP. Thank you for choosing Kohler.
What is the minimum threshold width required for this install?
aaron, my name is Jessica with Kohler Customer Service. I am happy to assist with your inquiry. K-707601-8D3-BNK requires there to be at least 2-1/2" of flat surface on the shower base/bath ledge and walls. Thank you for choosing Kohler.
What is the width of the glass panels? My shower is 46 inches wide and I am trying to figure out how wide the access will be when entering.
BK327, this is Sarah with Kohler Customer Service. I am glad to address you question. The panels will measure 24.625" wide. Thank you for choosing Kohler.
Is there an option to have a round bar handle? Rest of bathroom is purist hardware
Hi Nick, this is Vikrant with Kohler Customer Service. I am glad to address your question. I apologize, the only compatible handles are the ones which are included along with the shower door. Thank you for choosing Kohler.
What is the height for handle? how wide are the panels of glass? If I have a 56in wide opening, what would the opening width be?
Hello Nick, this is Lisa with Kohler Co. I am happy to answer your question. The holes are pre-drilled for the handles for the glass panels. The measurement from the bottom of the panel, up to the center of the bottom hole for the handle is 32.234". The width of each glass panel is 30.625". This shower door model is designed to fit a finished wall to finished wall opening width of s 54-5/8" – 59-5/8". If your opening is 56", it will be compatible. Thank you for choosing Kohler.
I installed this unit and once I installed the glass, the glass is 2 inches too long. Please advise.
Hi Louie, this is Vikrant with Kohler Customer Service. I am glad to address your question. For assistance, please call us at 1-800-456-4537. We are available Monday - Friday, 8 a.m. - 5 p.m. CST. . Thank you for choosing Kohler.
The walk through height is only 73 . Will people taller than 6 feet hit their head when getting into the shower?
Hi, my name is Meli with Kohler Co. I am happy to assist with your question. Reviewing the specifications for the Pleat shower door, anyone taller than 6 feet would have to duck under the track when entering and exiting the shower Thank you for choosing Kohler.
Viewing 1-8 of 43
Customer Reviews
3.5 out of 5
Loading Recommendations
Compare Key Features
Product Snapshot | ||
|---|---|---|
Ideal for customers who want a sleek, modern shower door, ensuring a luxurious feel with its heavy 5/16 in. thick glass. | Perfect for upgrading your home with a modern semi-framed sliding door, adding style and functionality. | A great choice for homeowners looking for a sleek and modern shower door, making their bathroom look more spacious and stylish. |
Glass Thickness | ||
5/16 in. | 5/16 in. (8 mm) | 5/16 in. |
Door Width | ||
45-48 in. | 50 in. - 54 in. | 43.75 in. - 47.75 in. |
Height | ||
79 in. | 74 in. | 72 in. |
Frameless Design | ||
Tempered Glass | ||
Related Products

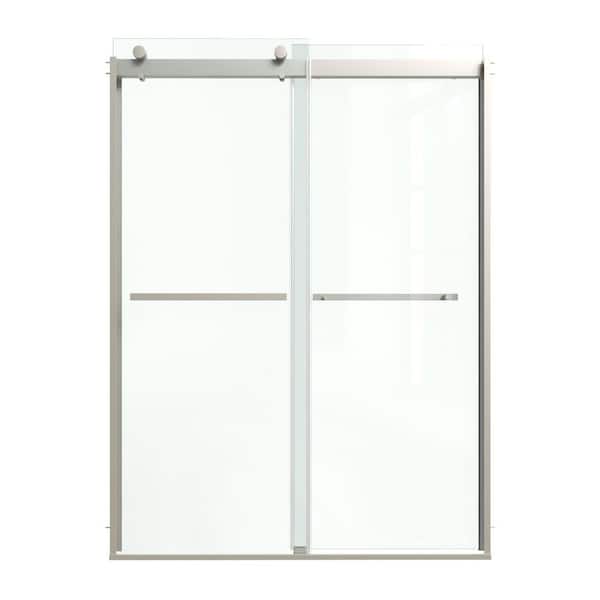

50 in. - 54 in. W x 74 in. H Framed Double Sliding Shower Door in Brushed Nickel with 5/16 in. (8mm) Clear Glass
This semi-framed double sliding shower door is built with 5/16 in. (8mm) tempered glass and features a smooth sliding system for quiet, stable performance. The adjustable shower door fits 50-54 in. openings and allows wall adjustment for uneven surfaces, making installation easier. Complete with waterproof seal strips and mounting hardware, this glass shower door delivers a modern look and dependable everyday use.

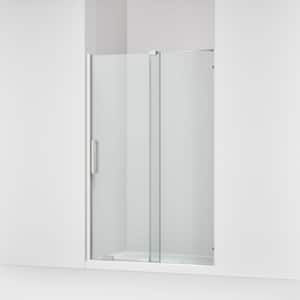

Echelon 44-48 in. W x 72 in. H Sliding Frameless Shower Door in Bright Polished Silver with 5/16 in. Thick Glass
