Internet #305192158

Model # CL360

Store SKU #1003243491

0092644691140

200 Amp AC Open Jaw Fork Meter

  • Automatically ranging true root mean square (TRMS) meter
  • Measures AC/DC voltage, continuity and resistance via test leads
  • Detect presence of voltage via non-contact voltage (NCV) tester
$ 74 97
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

Product Overview

  • Automatically ranging true root mean square (TRMS) meter
  • Measures AC/DC voltage, continuity and resistance via test leads
  • Detect presence of voltage via non-contact voltage (NCV) tester

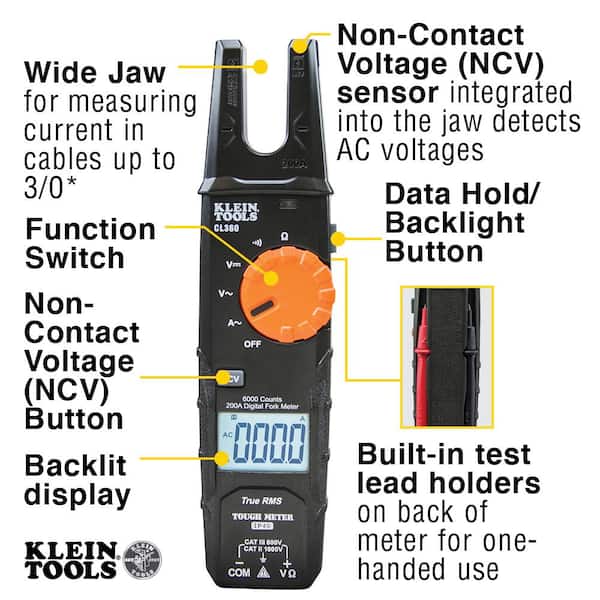

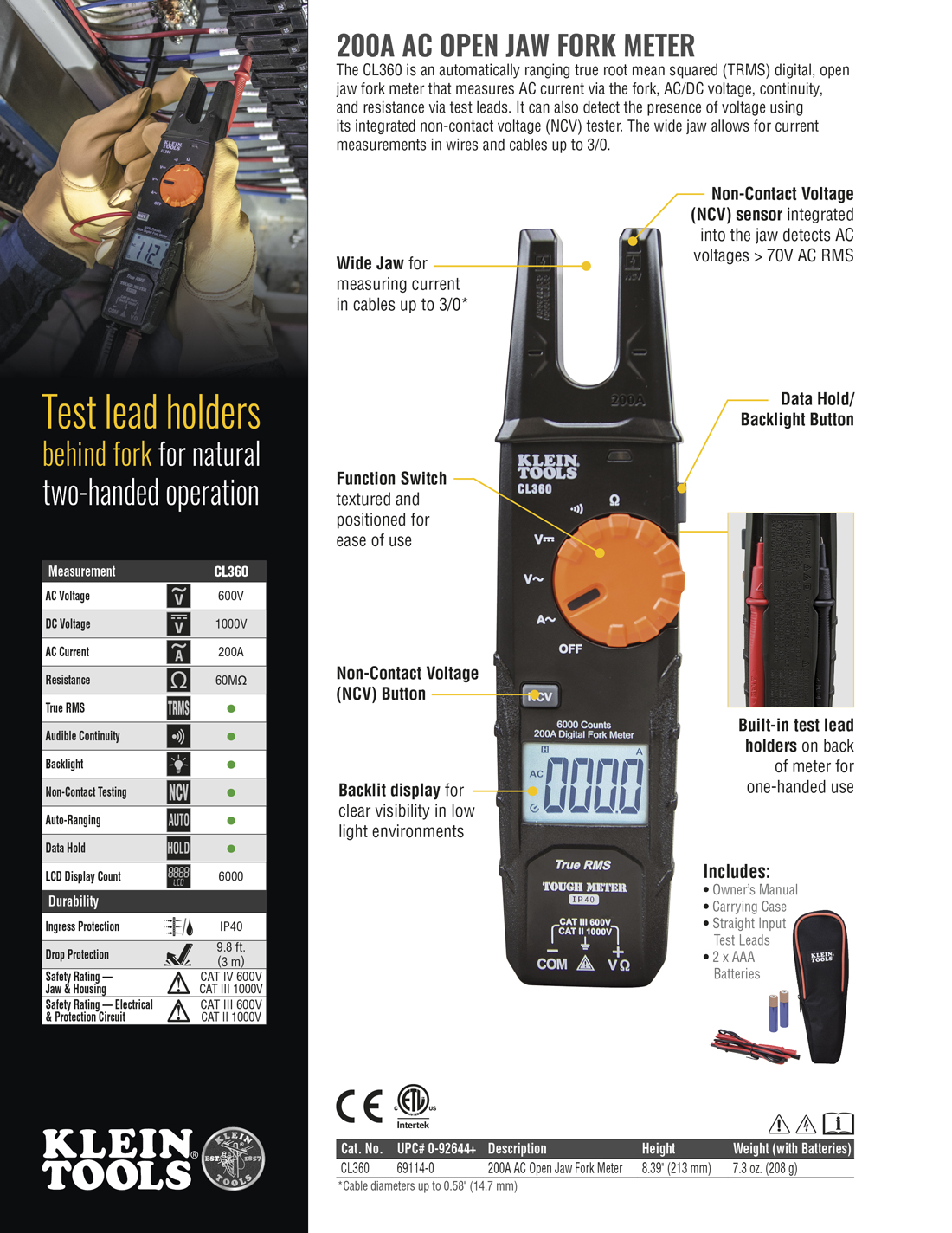

Measure AC current and detect voltage quickly with the CL360 Open Jaw Fork Meter. This digital meter is an automatically ranging true root mean square (TRMS) meter and accurately measures AC current via the fork, and AC/DC voltage, continuity and resistance via test leads. It also detects the presence of voltage via an integrated non-contact voltage (NCV) tester. The meter reliably detects current to 200A AC with an open jaw fork. The wide jaw design measures current in cables up to 3/0 sizes.
  • 200 Amp AC, 600-Volt AC, 1000-Volt DC, 60MOhm, Audible Continuity
  • Rugged Klein tough meter industrial design stands up to jobsite demands
  • Built to withstand a 9.9 ft. (3 m) drop
  • Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
  • Jaw and housing: CATIV 600V/CATIII 1000V; electrical and protection circuit: CATIII; 600V/CATII 1000V; Class 2, double insulation
  • Backlit display for clear visibility in environments with low ambient lighting
  • Wide jaw for measuring current in cables up to 3/0 sizes; accommodates cables of diameter up to 0.58 in. (14.7mm)
  • Non-contact voltage tester integrated into the jaw
  • Powers off automatically after 15-minutes of non-use to conserve battery life
  • Features built-in test lead holders on back of meter

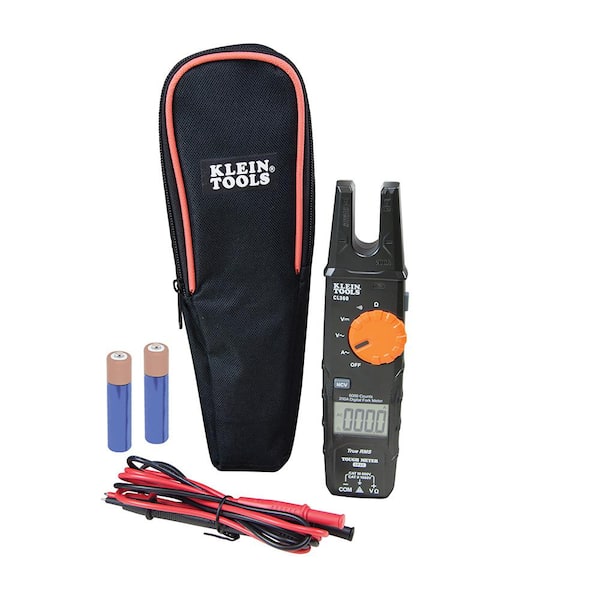

  • Includes a carrying case (with instruction manual), straight input test leads and 2x AAA batteries



  • Click here for more information on Electronic Recycling Programs
  • California residents see Prop 65 WARNINGS

Product Overview

  • Automatically ranging true root mean square (TRMS) meter
  • Measures AC/DC voltage, continuity and resistance via test leads
  • Detect presence of voltage via non-contact voltage (NCV) tester
Model #: CL360
Sku #: 1003243491
Internet #: 305192158

Measure AC current and detect voltage quickly with the CL360 Open Jaw Fork Meter. This digital meter is an automatically ranging true root mean square (TRMS) meter and accurately measures AC current via the fork, and AC/DC voltage, continuity and resistance via test leads. It also detects the presence of voltage via an integrated non-contact voltage (NCV) tester. The meter reliably detects current to 200A AC with an open jaw fork. The wide jaw design measures current in cables up to 3/0 sizes.

  • 200 Amp AC, 600-Volt AC, 1000-Volt DC, 60MOhm, Audible Continuity
  • Rugged Klein tough meter industrial design stands up to jobsite demands
  • Built to withstand a 9.9 ft. (3 m) drop
  • Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
  • Jaw and housing: CATIV 600V/CATIII 1000V; electrical and protection circuit: CATIII; 600V/CATII 1000V; Class 2, double insulation
  • Backlit display for clear visibility in environments with low ambient lighting
  • Wide jaw for measuring current in cables up to 3/0 sizes; accommodates cables of diameter up to 0.58 in. (14.7mm)
  • Non-contact voltage tester integrated into the jaw
  • Powers off automatically after 15-minutes of non-use to conserve battery life
  • Features built-in test lead holders on back of meter
  • Includes a carrying case (with instruction manual), straight input test leads and 2x AAA batteries



  • Click here for more information on Electronic Recycling Programs
  • California residents see Prop 65 WARNINGS

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Key Features

Product Overview
Key Features
  • Automatically ranging true root mean square (TRMS) meter
  • Measures AC/DC voltage, continuity and resistance via test leads
  • Detect presence of voltage via non-contact voltage (NCV) tester
Measure AC current and detect voltage quickly with the CL360 Open Jaw Fork Meter. This digital meter is an automatically ranging true root mean square (TRMS) meter and accurately measures AC current via the fork, and AC/DC voltage, continuity and resistance via test leads. It also detects the presence of voltage via an integrated non-contact voltage (NCV) tester. The meter reliably detects current to 200A AC with an open jaw fork. The wide jaw design measures current in cables up to 3/0 sizes.
  • 200 Amp AC, 600-Volt AC, 1000-Volt DC, 60MOhm, Audible Continuity
  • Rugged Klein tough meter industrial design stands up to jobsite demands
  • Built to withstand a 9.9 ft. (3 m) drop
  • Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
  • Jaw and housing: CATIV 600V/CATIII 1000V; electrical and protection circuit: CATIII; 600V/CATII 1000V; Class 2, double insulation
  • Backlit display for clear visibility in environments with low ambient lighting
  • Wide jaw for measuring current in cables up to 3/0 sizes; accommodates cables of diameter up to 0.58 in. (14.7mm)
  • Non-contact voltage tester integrated into the jaw
  • Powers off automatically after 15-minutes of non-use to conserve battery life
  • Features built-in test lead holders on back of meter
  • Includes a carrying case (with instruction manual), straight input test leads and 2x AAA batteries



  • Click here for more information on Electronic Recycling Programs
  • California residents see Prop 65 WARNINGS

Product Overview

  • Automatically ranging true root mean square (TRMS) meter
  • Measures AC/DC voltage, continuity and resistance via test leads
  • Detect presence of voltage via non-contact voltage (NCV) tester
Model #: CL360
Sku #: 1003243491
Internet #: 305192158

Measure AC current and detect voltage quickly with the CL360 Open Jaw Fork Meter. This digital meter is an automatically ranging true root mean square (TRMS) meter and accurately measures AC current via the fork, and AC/DC voltage, continuity and resistance via test leads. It also detects the presence of voltage via an integrated non-contact voltage (NCV) tester. The meter reliably detects current to 200A AC with an open jaw fork. The wide jaw design measures current in cables up to 3/0 sizes.

  • 200 Amp AC, 600-Volt AC, 1000-Volt DC, 60MOhm, Audible Continuity
  • Rugged Klein tough meter industrial design stands up to jobsite demands
  • Built to withstand a 9.9 ft. (3 m) drop
  • Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
  • Jaw and housing: CATIV 600V/CATIII 1000V; electrical and protection circuit: CATIII; 600V/CATII 1000V; Class 2, double insulation
  • Backlit display for clear visibility in environments with low ambient lighting
  • Wide jaw for measuring current in cables up to 3/0 sizes; accommodates cables of diameter up to 0.58 in. (14.7mm)
  • Non-contact voltage tester integrated into the jaw
  • Powers off automatically after 15-minutes of non-use to conserve battery life
  • Features built-in test lead holders on back of meter
  • Includes a carrying case (with instruction manual), straight input test leads and 2x AAA batteries



  • Click here for more information on Electronic Recycling Programs
  • California residents see Prop 65 WARNINGS

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Compare Similar Products
Brand Klein Tools Klein Tools Klein Tools Klein Tools
Name 400 Amp AC Auto-Ranging Digital Clamp Meter with Temp Electrical Maintenance and Test Kit 200 Amp AC Open Jaw Fork Meter 600 Amp AC True RMS Auto-Ranging Digital Clamp Meter with Temp
Price
$59.97
$64.97
See Lower Price in Cart
$119.00
Ratings (110) (99) (18) (50)
Test Meter Type Clamp/Multimeter Clamp/Multimeter Clamp/Multimeter Clamp/Multimeter
View Product View Product View Product View Product

Specifications

Dimensions

Product Depth (in.)
1.38
Product Height (in.)
8.39
Product Width (in.)
2.12

Details

Battery Power Type
Alkaline
Battery Size
AAA
Category Rating
III
Control Type
Digital
Display Type
LCD
Electrical Tools Features
Auto Ranging,Backlit,Data Hold,Handheld,Integral Lead Storage,Interchangeable Leads,Low Battery Indicator,Noncontact Detection,RMS,Tests Continuity,Tests Resistance
Measures/Detects
Amperage,Continuity,Resistance,Voltage
Number of Batteries Required
2
Number of Functions
7
Number of Ranges
12
Product Weight (lb.)
0.456lb
Returnable
90-Day
Test Meter Type
Clamp/Multimeter
Tools Product Type
Test Meter
Type
Clamp
Voltage (volts)
600

Warranty / Certifications

Manufacturer Warranty
Please refer to the attached warranty document in the Product Overview section above under Info & Guides.

Specifications

Dimensions

Product Depth (in.)
1.38
Product Height (in.)
8.39
Product Width (in.)
2.12

Details

Battery Power Type
Alkaline
Battery Size
AAA
Category Rating
III
Control Type
Digital
Display Type
LCD
Electrical Tools Features
Auto Ranging,Backlit,Data Hold,Handheld,Integral Lead Storage,Interchangeable Leads,Low Battery Indicator,Noncontact Detection,RMS,Tests Continuity,Tests Resistance
Measures/Detects
Amperage,Continuity,Resistance,Voltage
Number of Batteries Required
2
Number of Functions
7
Number of Ranges
12
Product Weight (lb.)
0.456lb
Returnable
90-Day
Test Meter Type
Clamp/Multimeter
Tools Product Type
Test Meter
Type
Clamp
Voltage (volts)
600

Warranty / Certifications

Manufacturer Warranty
Please refer to the attached warranty document in the Product Overview section above under Info & Guides.

Questions & Answers

Will this work with the Klein Tools AC Line Splitter (Model# 69409)? Is the Jaw Fork wide enough to fit around the side arm of the splitter?

Note, the AC line splitter is designed to work with clamp meters to allow the tesing of AC current on the line. Since this meter has a Fork rather than a Clamp, just want to make sure it will fit over the splitter. Attaching photo of splitter, but it may appear cut off and/or distorted due to the Home Depot app resizing.
Asked by: Dave
You'll have to make your own line splitter, which can be done pretty cheap
Answered by: Robert
Date published: 2019-07-28
  • y_2019, m_10, d_15, h_3CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.13
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_1
  • loc_, sid_305192158, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 20ms
  • QUESTIONS, PRODUCT

Customer Reviews

Klein Tools 200 Amp AC Open Jaw Fork Meter is rated 4.5 out of 5 by 18.
Rated 4 out of 5 by from Bought this on sale for $49 How can I go... Bought this on sale for $49 How can I go wrong
Date published: 2019-07-30
Rated 5 out of 5 by from 5 Star Review Rating provided by a verified purchaser
Date published: 2019-10-02
Rated 5 out of 5 by from This Klein Tools, CL360 200 amp AC open jaw fork meter is a great meter to have in your tool box for both the professional and the home owner. It can measure up to 200 amps with the open jaw fork which is handy to calculate power usage. The AC setting can handle up to 600 volts and DC up to 1000V. It has a audible continuity checker and measures resistance up to 60 Meg ohm. The backlit display makes for easy reading in low light conditions. There is even a non contact voltage tester integrated into the current jaw to test for a live circuit. I like the fact that the probe tips have protective covers that limit the metal exposure if testing higher voltages and can be removed to expose a longer tip to test a device like a wall outlet. This is a high quality professional meter which should last for years of use in even the harshest professional environment. I would highly recommend this meter as it compares and in some ways is better than many higher priced electrical meters I have used. This product is warranted to be free from defects in materials and workmanship for a period of two years from the date of purchase.
Date published: 2018-09-03
Rated 4 out of 5 by from I purchased this so I could take amp readings. Sliding the prongs over the conductor made taking... I purchased this so I could take amp readings. Sliding the prongs over the conductor made taking readings easier than having to stab one of the conductors through the jacked. It is very easy to use and I like the value for the price. Very reasonably priced.
Date published: 2019-04-23
Rated 5 out of 5 by from Very happy with it ... Very happy with it
Date published: 2019-06-11
Rated 5 out of 5 by from I received my Klein 200 Amp AC open jaw fork meter today, it comes with a nice carrying bag and a set of test leads. The meter is backlit with an LCD display that has a 15-minute auto off feature. This is an auto ranging meter with a data hold button which is very handy. The non-contact feature is nice to have to speed up testing wires especially in cramped or otherwise difficult areas (attic’s etc.). This meter claims to be able to with stand close to a 10-foot drop, that will probably come in handy for me. Overall a very easy to use meter with a lot of functions.
Date published: 2018-08-24
Rated 4 out of 5 by from A versatile multimeter primarily for use by tradesman who service HVAC or generator wiring and no... A versatile multimeter primarily for use by tradesman who service HVAC or generator wiring and not so much for use by the average DIYer since most of its functions can only be used when the cover plates come off and the raw wiring is exposed. If you don't have an intimate understanding of the difference between amperage and wattage, or ohms and continuity then a good number of the available functions might get you in more trouble then you bargained for. But if you are experienced electrically then this one tool will satisfy most of your troubleshooting needs in checking amperage draw, voltage level and drop, wiring continuity or resistance, including a proximity (non-contact) feature for detecting "live" wires where there are no exposed connections. You simply place one of the forks near the subject wire and it "beeps" if voltage if present. (In this case I actually prefer a smaller type probe (see photo) which allows easier access in tight spaces but if you don't happen to have one handy you can still test for it with this meter) In other words you have the features of what normally could be three separate testers in one unit. Saves time which is money in the repair business.
Date published: 2018-09-08
Rated 4 out of 5 by from Nice meter but has some limitations. When I first opened the package on this meter I was impresse... Nice meter but has some limitations. When I first opened the package on this meter I was impressed with the design. It fits well in your hand. The numbers are easy to read. The display screen has a backlight function. It comes with a nice case that holds the instructions, probes and the meter itself; and...it looks to be quite durable. You can easily measure volts (AC or DC) & ohms, using the probes, or simple non-contact connectivity with the jaw fork (useful if you just want to see if a particular outlet or lead is "hot"). ONE LIMITATION: The amp reading function (using the jaw fork) only works on a SINGLE wire. This limits the AMP reading function for when you are installing or troubleshooting breaker boxes, power outlets, switches etc. (i.e. you have to open up the outlet or switch cover). So...you cannot use it to determine the current draw of an appliance (like a refrigerator, or lamp, etc), just by placing the power cord through the jaws. An appliance has the ground, neutral, and HOT wires all bundled in the cord. If you are looking for a way to EASILY measure current draw or power consumption, there are other meters available to do that. At $75, its a bit pricey, but the quality looks good.
Date published: 2018-08-25
