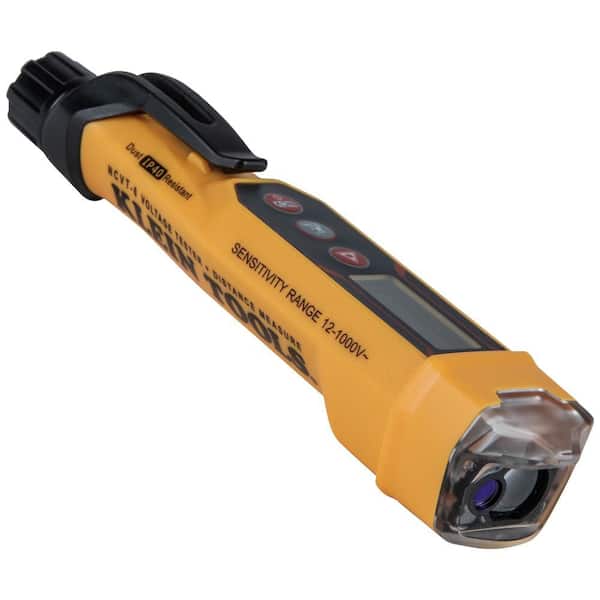

Non Contact Voltage Tester with Laser Distance Meter 12-1000V AC

$49.97
Apply Now
Pay $24.97 after $25 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
  • Volt Pen detects 12 to 1000 VAC with visual and audible signals
  • Laser Distance Meter measures inches, feet, and meters to 66 ft.
  • Voltage Tester has high-viz display and simple-to-use interface
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy
Product Details

About This Product

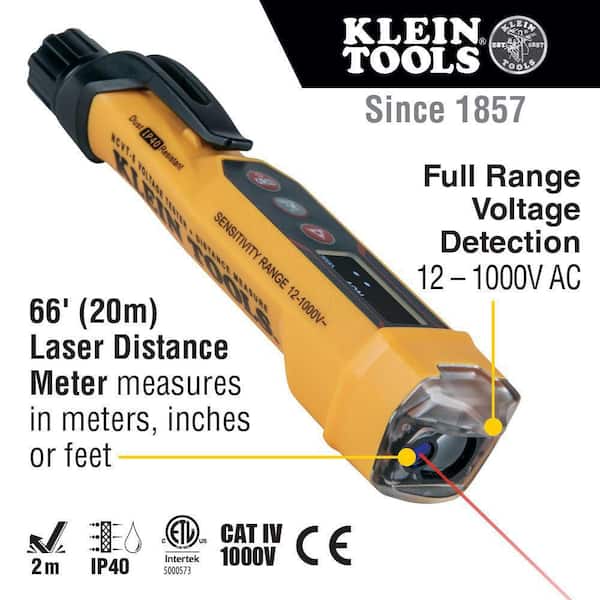

The Klein Tools NCVT-6 is a non-contact voltage tester (NCVT) with an integrated laser distance meter. It can detect voltage over the full-range from 12 to 1000 VAC and can measure distances from 2-Inch (51 mm) up to 66-Feet (20 m). The laser distance meter functions independently from the NCVT with a simple-to-use intuitive interface. Easy, single-button changes between voltage detection and laser distance measurements.

Highlights

  • Non-contact Tester determines AC voltage in cables, cords, circuit breakers, switches, outlets, wires, as well as security, entertainment, communications, environmental control, and irrigation systems
  • Volt Pen detects AC voltage from 12 to 1000V with visual and audible indicators
  • Incorporates a 66 ft. (20 m) Laser Distance Meter that can measure in meters, inches in fractions or decimals, and feet in fractions or decimals, with accuracy up to 1/16 in. (0.16 cm)
  • High-visibility reverse contrast display for better viewing in low light conditions
  • Laser Class II, 630 to 670nm, Max. Power <1mW
  • Simple-to-use intuitive interface; easy single-button changes between laser distance measurements and voltage detection
  • Delivers simultaneous visual and audible voltage indicators when AC voltage is detected
  • Audible voltage indicator beeps at a greater frequency the higher the voltage that is sensed, or the closer to the voltage source
  • Built to withstand a 6.6 ft. (2 m) drop
  • Auto Power-Off conserves and extends battery life
  • Screw-thread battery cap
  • Lightweight tool with pocket clip for easy everyday carrying and storage
  • CAT IV 1000V safety rating
  • Ingress Protection IP40 Dust Resistant
  • Under normal operating conditions, at distances from 2 in. to 32.8 ft. the NCVT-6 has an accuracy of +/- 1/16 in.; and at distances greater than 32.8 ft. up to 65.6 ft., accuracy of +/- 1/8 in.
  • Shop all Klein Tools voltage testers here
  • Click here for more Klein Tool products
  • Click here for more information on Electronic Recycling Programs
  • Return Policy
  • California residents
     see Prop 65 WARNINGS

Product Information

Internet # 309359124

Model # NCVT6

Store SKU # 1004334304

Specifications

Dimensions: H 6.45 in, W 1.32 in, D 1.21 in

Dimensions

Product Depth (in.)

1.21 in

Product Height (in.)

6.45 in

Product Width (in.)

1.32 in

Details

Battery Power Type

Alkaline

Battery Size

AAA

Control Type

Digital

Display Type

Digital

Electrical Tools Features

Audible Alert, Battery Powered, Handheld, Low Battery Indicator, Noncontact Detection, Visual Alert

Included

Batteries

Measures/Detects

Distance, Voltage

Number of Batteries Required

2

Product Weight (lb.)

0.2125 lb

Returnable

90-Day

Test Meter Type

Voltage Tester

Tools Product Type

Test Meter

Warranty / Certifications

Manufacturer Warranty

Please refer to the attached warranty document in the Product Overview section above under Info & Guides.

Questions & Answers

9Questions
caret
Q:does it have a flashlight function
by|Feb 12, 2022
1 Answer
Answer This Question

A:  The NCVT6 does not have a flashlight function. Please see the NCVT-3P Dual Range Non-Contact Voltage Tester with Flashlight.

by|Feb 14, 2022
    caret
    Q:Does it show somehow the range of Voltage detected ( E.g. 12 v, 125 v, 240 V, 440 V, etc ) ?
    by|Feb 3, 2022
    1 Answer
    Answer This Question

    A:  No, it is designed to indicate the presence of voltage, it does not provide a voltage reading.

    by|Apr 5, 2024
      caret
      Q:Can I use over 2000mts?.Power det o laser?
      by|Dec 23, 2021
      3 Answers
      Answer This Question

      A:  The max distance is 20 meters, or around 66 feet.

      by|May 7, 2023

        A:  Would you please restate the question? Are you asking if you can use the laser distance finder over 2,000 meters?

        by|Dec 25, 2021

          A:  The NCVT6 has been tested to operate in altitude up to 6562 ft. (2000 m).

          by|Dec 28, 2021
            caret
            Q:Can I use in Cuzco Peru?3200mts high?Why manual said 2000 mts limit.Thx.
            by|Dec 23, 2021
            3 Answers
            Answer This Question

            A:  Yes, you can use it any where around the world,

            by|Dec 28, 2021

              A:  Amazing device

              by|Dec 26, 2021

                A:  The NCVT6 has been tested to operate in altitude up to 6562 ft. (2000 m).

                by|Dec 29, 2021
                  Showing 1-4 of 9

                  Customer Reviews

                  4.6 out of 5

                  • 4.6 out of 100 reviews
                  • 76% recommend this product
                  Filter by:
                  Showing 1-10 of 100 reviews
                  I never thought these two devices would be put together similar to cell phones and cameras. I ke...
                  I never thought these two devices would be put together similar to cell phones and cameras. I keep this in my honey-do tool bag. It is great to have for quick measurements when looking for furniture or placing pictures on walls. I am big into home automation and am always changing out my light and fan switches. The non-contact voltage tester works great and is sensitive enough to detect the exact hot wire. It is easily marked by changing the led light to red. You can also change the display from inches to feet, to fractions, to meters.
                  by
                  • Recommended
                  3 found this review helpful
                  I found this laser distance meter to be reasonably, ,(but that is +/- 1/16th of an inch),accurate...
                  I found this laser distance meter to be reasonably, ,(but that is +/- 1/16th of an inch),accurate when compared to a known accurate tape measure. Be aware that the manufacturer cautions not to direct the laser beam at anyone or look at the beam because laser light can be harmful if looked at, but otherwise very safe in normal usage. The voltage tester allows the checking of voltage through wire or conductor insulation, but does not give voltage reading, only in 1 to 4 bars and an audible signal that increases with the number of bars when voltage is present. The audible signal and bars indicate the strength of the reading.
                  by
                  • Recommended
                  1 found this review helpful
                  This is a great little tool from Klein. It's a little bit bigger than a NCV (non contact voltage ...
                  This is a great little tool from Klein. It's a little bit bigger than a NCV (non contact voltage tester) only because there is a laser distance meter built in. It will still fit in my pocket or tool pouch with no problem. And I really appreciate having a digital tape measure built in. An awesome feature of the LDM is you can set it to read from the front of the tool or the back. So you can put it against a wall and read from there. Nice visible display and a great voltage sensor. I recently used this when I was replacing a ceiling light. Great to know when the voltage was off by just a proximity test as there were multiple lines and switches. I also have used the LDM for measuring room dimensions and even openings for shades. I'm keeping this one. Caution you should always test the tester with a known live circuit before checking unknown lines. This is just common sense.
                  by
                  • Recommended
                  2 found this review helpful
                  I like the non-contact (2 probes not needed) function to let me know I'm working on a potentially 'hot' conductor. And yes I VERIFY it. I "test the tester" on a known hot circuit for my safety before working on wires EVERY TIME! A little bigger than NCV, (Non-Contact Voltage) only tester because of the laser distance display. Small enough to keep in a safety vest pocket and it uses a pair of AAA cells (included). It blinks and beeps faster the closer it gets to a live conductor (specs indicate 10 VAC to 1 kVAC, 50-500 Hz). Full auto power off in 4-5 minutes of no activity. For distance measurement there is a 'reference mark bump' on the head, or you can change the 'reference to the back' of the unit. Surprisingly accurate, easily within 1/16" at 3' range. Fast and accurate to measure a room as long as you hold the laser beam perpendicular. Metric or English display. A given measurement will display e.g. as 2.835 ft, 2' 10", .864m, 34.02" as selected. Stated maximum range is 66'. I've not needed it beyond 30-40 feet measurements, but if you can see the laser dot, it does too. Works well.
                  by
                  • Recommended
                  1 found this review helpful
                  The Klein Tools NCVT-6 is a Full-Range non-contact voltage tester (NCVT) with an integrated laser...
                  The Klein Tools NCVT-6 is a Full-Range non-contact voltage tester (NCVT) with an integrated laser distance meter. There have been many times I would like to measure distance without having to use a tape measure. I really like this tool, it has come in handy a couple times for both measuring as well as detecting where the wires were behind a wall I was putting shelving in and I knew the breaker box was somewhere on the opposite side of the exterior wall and I wanted to make sure I didn’t put any nails in that area. This tool can measure from 2 inches to 65.6 feet and has an accuracy of about 1/16 inch for distances under 33 feet and about 1/8 inch for distances up to 65.6 feet. I took a few sample measurements and found this to be pretty accurate. There are 2 settings to choose from depending if you want to include the length of the tool in the measurement, or just from the tip of the tool to whatever your laser is pointing at. This tool has several choices of measurements such as meters, inches with decimals, inches with fractions, feet with decimals and feet with fractions. This tool can detect voltages ranging from 12 volts to 1000 volts. It is IP40 dust resistant and batteries are included.
                  by
                  • Recommended
                  1 found this review helpful
                  The Klein Tools NCVT-6 combines AC voltage detection and laser distance measurement in a single c...
                  The Klein Tools NCVT-6 combines AC voltage detection and laser distance measurement in a single compact tool. Non-contact voltage detection is a safe way to verify that an AC circuit is switched off before starting a wiring task. Detection is activated by pressing the NCV/On-Off button. The tester beeps and the transparent tip glows blue indicating ready to use. When the tip is positioned close to AC voltage, it blinks red and the tester beeps repeatedly. Higher voltage and moving closer to the AC source increases the blinking and beeping rate. The digital display shows one to five dots indicating signal strength. Silent operation is optional. Laser distance measurement avoids the inaccuracies caused by a twisted or sagging metal tape. it's easier to read the digital display than to count the closely spaced lines on a tape measure. Lasers can access high ceilings and other hard-to-reach places. Measurement is activated by pointing at the target and pressing the red button labeled with the triangular radiation symbol. A laser spot appears on the target and the unit gives a single beep. Distance to target appears on the digital display. Continuous distance measurement is also an option. User can select distance units in feet, inches, or meters. Maximum usable distance is 20 m (66 ft). Powered by two AAA batteries. Battery compartment is sealed with an O-ring. Ingress protection rating is IP40, meaning protected from intrusion of solid objects larger than 1 mm, no protection from liquids. Shock resistant up to a 2 meter (6.6 ft) drop. Very useful for measuring room dimensions. Manufactured in China.
                  by
                  • Recommended
                  1 found this review helpful
                  Immediate response to a hot wire—I thought I had secured the correct circuit breaker but the Stanley tester indicated otherwise both with both lights and an audible signal. Great tool. The laser measurement feature also is an added benefit .
