Model # 2510

Internet #100068474

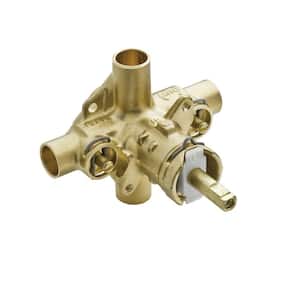

MOEN Brass Rough-In Posi-Temp Pressure-Balancing Cycling Tub and Shower Valve - 1/2 in. IPS Connection
0026508074541

MOEN

Brass Rough-In Posi-Temp Pressure-Balancing Cycling Tub and Shower Valve - 1/2 in. IPS Connection

  • Posi-Temp balancing control helps to maintain water temperatures
  • M-Pact common valve system allows easy MOEN trim kit updates
  • Back-to-back installation capabilities
$6899 /each
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

  • Posi-Temp balancing control helps to maintain water temperatures
  • M-Pact common valve system allows easy MOEN trim kit updates
  • Back-to-back installation capabilities
The MOEN 1/2 in. Brass Rough-In Posi-Temp Pressure-Balancing Cycling Valve features the M-PACT common valve system and adjustable temperature limit stops to control the maximum hot water flow.
  • Brass construction
  • Posi-temp pressure-balancing valve helps protect against shower-shock
  • Adjustable temperature limit stops control the maximum hot water flow
  • 1/2 in. threaded connections
  • M-pact common valve system makes it easy to upgrade the style of bathrooms without replacing faucet plumbing
  • Features M-PACT common valve system

Product Overview

  • Posi-Temp balancing control helps to maintain water temperatures
  • M-Pact common valve system allows easy MOEN trim kit updates
  • Back-to-back installation capabilities
Model #: 2510
Internet #: 100068474

The MOEN 1/2 in. Brass Rough-In Posi-Temp Pressure-Balancing Cycling Valve features the M-PACT common valve system and adjustable temperature limit stops to control the maximum hot water flow.

  • Brass construction
  • Posi-temp pressure-balancing valve helps protect against shower-shock
  • Adjustable temperature limit stops control the maximum hot water flow
  • 1/2 in. threaded connections
  • M-pact common valve system makes it easy to upgrade the style of bathrooms without replacing faucet plumbing
  • Features M-PACT common valve system

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Product Depth (in.)
2.34 in
Product Height (in.)
2.5 in
Product Length (in.)
4.5 in
Product Width (in.)
4.5
Valve Inlet Diameter (in.)
0.5
Valve Outlet Diameter (in.)
0.5

Details

Application
Water Supply
Compatible Pipe Material
Brass
Connection
IPS PE
Features
Temperature limit adjustment
Indoor/Outdoor
Indoor
Material
Metal
Maximum Pressure (psi)
80
Maximum Working Temperature (F)
120
Product Weight (lb.)
1.9 lb
Returnable
90-Day
Valve Type
Pressure Balance

Warranty / Certifications

Manufacturer Warranty
Limited Lifetime Warranty

Specifications

Dimensions

Product Depth (in.)
2.34 in
Product Height (in.)
2.5 in
Product Length (in.)
4.5 in
Product Width (in.)
4.5
Valve Inlet Diameter (in.)
0.5
Valve Outlet Diameter (in.)
0.5

Details

Application
Water Supply
Compatible Pipe Material
Brass
Connection
IPS PE
Features
Temperature limit adjustment
Indoor/Outdoor
Indoor
Material
Metal
Maximum Pressure (psi)
80
Maximum Working Temperature (F)
120
Product Weight (lb.)
1.9 lb
Returnable
90-Day
Valve Type
Pressure Balance

Warranty / Certifications

Manufacturer Warranty
Limited Lifetime Warranty

Questions & Answers

What brushed nickel trim kit fits this diverter

Asked by: Vinny
Hello Vinny and thank you for your interest in Moen products. Moen trim that is listed as Posi-Temp will fit onto this valve. There are many options. If you have additional pre-purchase questions, please feel free to call us at 800-289-6636. Our business hours are 8:00 am - 7:00 pm Monday through Friday EST.
Answered by: Moen
Date published: 2017-09-11

Why doesn't the Moen 1" Chrome Extension not fit for this Posi-Temp valve?

I ordered the Posi-Temp 1 in. Handle Extension Kit in Chrome (Model 10399) and the stop tube's diameter is too small to fit the posi-temp valve. What is the correct kit for this shower valve? The brass extension and screws are perfect but the chrome tube is not. Please help!
Asked by: Cjros
Moen contacted me with the correct part number. Moen part # 96945, Home Depot Part#202998731 I hope this helps.
Answered by: Cjros
Date published: 2017-05-21

Which Moen valve?

I'm getting the Moen Brantford 1-Handle PosiTemp Valve Trim Kit installed for my shower stall (no tub). How do I decide which Moen valve to get? The 2510, 2520, 2570, or the 2590?
Asked by: Dsquare
Hello Dsquare. Thank you so much for your interest in Moen products. The Moen PosiTemp valve 2510 is our threaded (IPS) valve does not come with check stops. The 2520 is the copper to copper (CC) valve that does not come with check stops. The 2570 (CC) and 2590 (IPS) are our valves that come with stops. You will need to figure out what kind of connection you want to use and if you need stops or not. If you have additional questions, please call Moen at 1-800-289-6636 our business hours are 8:00 a.m. - 7:00 p.m. Monday through Friday and 9:00 a.m. - 3:00 p.m. Saturday EST.
Answered by: Moen
Date published: 2018-01-14

I have a 25 yr old Moen valve that uses a 1222 cartridge can I use a Brantford single lever faucet with it?

Asked by: Joe59
Hello Joe. Thank you so much for your interest and support in Moen products. The Moen PosiTemp valve you already have can be used with the Moen Brantford PosiTemp trim kit T2153, T2152 or T2151. If you have additional questions, please complete the form at http://www.moen.com/consumer-suppoert/contact-us or call Moen at 1-800-289-6636. Our business hours are 8:00 a.m. - 7:00 p.m. Monday through Friday and 9:00 a.m. - 3:00 p.m. Saturday EST.
Answered by: Moen
Date published: 2015-09-20
  • y_2018, m_1, d_17, h_12CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.6
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_33
  • loc_, sid_100068474, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 190ms
  • QUESTIONS, PRODUCT

Customer Reviews

Brass Rough-In Posi-Temp Pressure-Balancing Cycling Tub and Shower Valve - 1/2 in. IPS Connection is rated 3.8 out of 5 by 31.
Rated 1 out of 5 by from Easy enough to install, and it looks like I'll have to install another one, because this one leak... Easy enough to install, and it looks like I'll have to install another one, because this one leaks. The tub nozzle drips constantly with the (properly installed) handle in the "off" position. These must be made in china.
Date published: 2017-09-18
Rated 5 out of 5 by from Used to replace the existing leaky unit in my bathtub. Old valve would drip 1 per second. After... Used to replace the existing leaky unit in my bathtub. Old valve would drip 1 per second. After swapping with a new valve of the same kind, leaks are gone and shower pressure is up. Thanks!
Date published: 2017-09-08
Rated 1 out of 5 by from The Moen 'rough-in'valve did not match the finish plate and... The Moen 'rough-in'valve did not match the finish plate and other hardware. I have since returned it and purchased a different product.
Date published: 2017-10-03
Rated 5 out of 5 by from Good replacement part.Good order placement / phone customer service. Direct... Good replacement part.Good order placement / phone customer service. Direct shipping to customer--nice convenience.
Date published: 2017-09-27
Rated 3 out of 5 by from 3 Star Review Rating provided by a verified purchaser
Date published: 2017-12-29
Rated 5 out of 5 by from 5 Star Review Rating provided by a verified purchaser
Date published: 2017-08-27
Rated 5 out of 5 by from good To prevoius review; you installed valve upside down in wall. As a plumber I highly reccomend Moen products.
Date published: 2012-03-05
Rated 4 out of 5 by from Buy threaded if you may need to salvage the part in the future I prefabricated all copper tubing and soldered them prior to installation. When it came time to install I "sweated" the caps off the existing hot/cold lines and had only two joints to solder on the coupling that joined my prefab part. No leaks functioned as expected. Buy the threaded positemp control if you might need to salvage and reuse it in the future. That way you can cut the lines and unscrew the connections.
Date published: 2014-06-03
