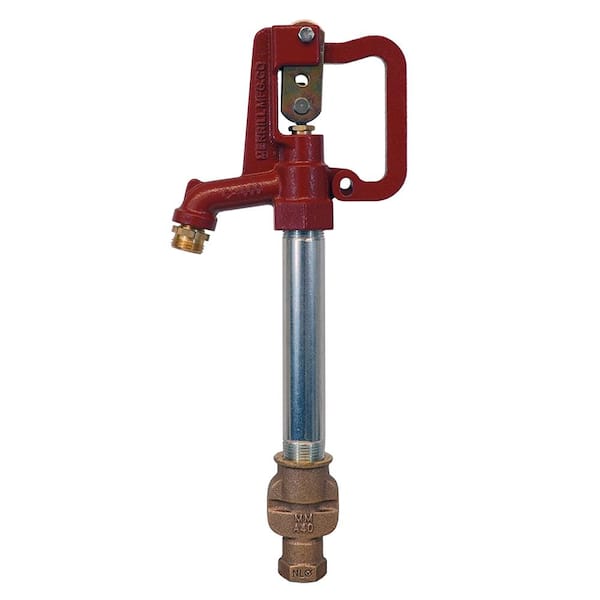

2 ft. Bury C1000 Series No Lead Yard Hydrant with Galvanized Steel Standpipe and No Lead Brass Valve Body

Frequently Bought Together

+
+
Price:

Product Overview

Get year-round water service with the Merrill CNL7502. This yard hydrant features high quality moving parts designed for years of trouble-free use. The lockable head, high flow rate and self-lubricating plunger have made this hydrant the most popular model in Merrill's extensive hydrant line.
  • Locking eye on head and lever designed for padlock when not in use, eliminates water waste
  • Variable water flow is controlled at the lever
  • No need to dig up the hydrant for repair, all moving parts are accessible by unscrewing the head from the standpipe
  • Dual bypass valve body provides high water flow with economical design
  • 3/4 in. female threads for water connection threads onto 3/4 in. male hydrant elbow or tee
  • Max water system pressure is 100 psi

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Yard Hydrants

current product
2 ft. Bury C1000 Series No Lead Yard Hydrant with Galvanized Steel Standpipe and No Lead Brass Valve Body
1 in. x 3/4 in. NPT x MPT 1 in. Galvanized Steel Pipe x 1 ft. Bury IOWA Freezeless Yard Hydrant1 in. x 3/4 in. NPT x MPT 1 in. gal.vanized Steel Pipe x 2 ft. Bury IOWA Freezeless Yard Hydrant1 in. x 3/4 in. NPT x MPT 1 in. gal.vanized Steel Pipe x 3 ft. Bury IOWA Freezeless Yard Hydrant
BrandMerrillWoodfordWoodfordWoodford
Name2 ft. Bury C1000 Series No Lead Yard Hydrant with Galvanized Steel Standpipe and No Lead Brass Valve Body1 in. x 3/4 in. NPT x MPT 1 in. Galvanized Steel Pipe x 1 ft. Bury IOWA Freezeless Yard Hydrant1 in. x 3/4 in. NPT x MPT 1 in. gal.vanized Steel Pipe x 2 ft. Bury IOWA Freezeless Yard Hydrant1 in. x 3/4 in. NPT x MPT 1 in. gal.vanized Steel Pipe x 3 ft. Bury IOWA Freezeless Yard Hydrant
Price
Ratings
(3)
(4)
(40)
(29)
ConnectionFIPFemale Pipe ThreadFemale Pipe ThreadFemale Pipe Thread
ApplicationPotable WaterNon-Potable WaterNon-Potable WaterNon-Potable Water
FeaturesLead FreeNo Additional Special FeaturesNo Additional Special FeaturesNo Additional Special Features
Maximum Pressure (psi)100125125125
Compatible Pipe MaterialPolyethyleneBrassBrassBrass
MaterialGalvanized SteelGalvanized SteelGalvanized SteelGalvanized Steel
Indoor/OutdoorOutdoorOutdoorOutdoorOutdoor
Maximum Working Temperature (F)180120120120
Product Height (ft.)4123
Valve TypeYard HydrantYard HydrantYard HydrantYard Hydrant
View ProductView ProductView ProductView Product

Specifications

Dimensions

Inlet Diameter (In.)
3/4
Outlet Diameter (In.)
3/4
Product Height (ft.)
4
Product Height (in.)
7 in
Product Length (in.)
10 in
Product Width (in.)
3 in

Details

Application
Potable Water
Compatible Pipe Material
Polyethylene
Connection
FIP
Features
Lead Free
Indoor/Outdoor
Outdoor
Material
Galvanized Steel
Maximum Pressure (psi)
100
Maximum Working Temperature (F)
180
Pack Size
1
Product Weight (lb.)
13 lb
Returnable
90-Day
Valve Type
Yard Hydrant

Warranty / Certifications

Manufacturer Warranty
1 year warranty from date of shipment by Merrill to original purchaser.
