Internet #202562777

Model #MSA2020SPDP

Store SKU #688076

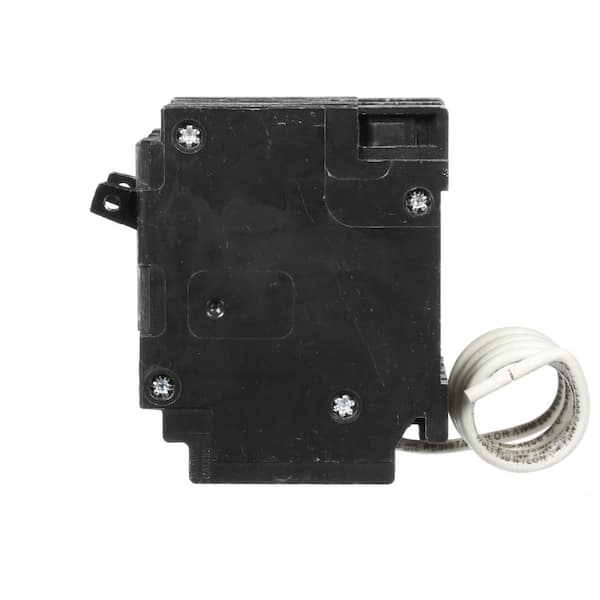

20 Amp 6.5 in. Whole House Surge Protected Circuit Breaker

  • Murray brand is being phased out, replaced by equal Siemens parts
  • Murray MSA2020SPDP is equivalent to Siemens QSA2020SPD
  • 10 kA Interrupting Rating
  • See More Details

Frequently Bought Together

+
+
Price:
$11663

Product Overview

The Murray 20 Amp Surge Protected Circuit Breaker provides a secondary surge arrestor incorporated with 2 single-pole circuit breakers. By installing a Siemens Circuit Breaker and Surge Protection Device in the load center of the residence, surge protection is provided for all branch circuits. This device is UL and CSA listed for safety.
  • Comprised of a highly effective TVSS integrated with 2 single-pole 20 Amp circuit breakers
  • 2 green LED indicator lights show when surge protection is provided
  • Utilizes 150 VAC, 40 mm metal oxide varistors
  • 40kA maximum impulse rating
  • Maximum impulse rating for the SPD module is 40kA, the standard interrupting rating for circuit breakers is 10K AIC
  • Provides surge protection for all branch circuits
  • Contains two 1 Pole 120-Volt Circuit Breakers
  • Click here for more information on Electronic Recycling Programs

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Whole-House Surge Protectors

Whole House Surge Protector
current product
20 Amp 6.5 in. Whole House Surge Protected Circuit Breaker
20 Amp 6.5 in. Whole House Surge Protected-Circuit BreakerFirstSurge Plus 100kA Whole House Surge Protection Device
BrandEatonMurraySiemensSiemens
NameWhole House Surge Protector20 Amp 6.5 in. Whole House Surge Protected Circuit Breaker20 Amp 6.5 in. Whole House Surge Protected-Circuit BreakerFirstSurge Plus 100kA Whole House Surge Protection Device
Price
$11154
$11663
$11900
$16726
$185.84
Save $18.58 (10%)
Ratings
(170)
(14)
(43)
(25)
View ProductView ProductView ProductView Product

Specifications

Dimensions

Product Depth (in.)
4
Product Height (in.)
7.5
Product Width (in.)
6.5

Details

Connection type
Breaker
Electrical Product Type
Whole House Surge Protectors
Joules
720
Maximum Amperage (amps)
20
Product Weight (lb.)
.55
Returnable
180-Day

Warranty / Certifications

Certifications and Listings
CSA Listed,UL Listed
Manufacturer Warranty
1 year

Questions & Answers

17Questions16Answers

Can I use this to replace 20 amp breakers that are connected to a transfer switch for a (inverter...

Asked by Sparky September 17, 2020
2
Answers

To respond to the Siemens answer. No, I have two single pole breakers that are both connected to a transfer switch. I want to know if I can use the whole house surge protector breaker to replace those two single-pole breakers. Or do I have to use breakers that are not connected to a transfer switch?

Can I use this product to replace a single double pole breaker and tie the two switches together ...

Asked by Vincent September 16, 2020
1
Answer

No, this cannot be done. Firstly, there is no handle tie available to make a common disconnect and, secondly, doing so would not make the poles common trip. Each pole services one leg of the load center and one 120V circuit. It is important that the poles operate independently so that if one fails there is still protection provided on the other leg.

This works in any Square-D panel?

Asked by Susan October 19, 2019
1
Answer

We cannot advise. Please check with Schneider Electric for guidance on which breaker types are UL approved for your Square-D panel.

I have an old one of these currently installed in my 200-amp service panel. While the two green l...

Asked by Monty September 26, 2019
1
Answer

If the LEDs are on at all (regardless of the intensity) then there is no reason to be believe surge protection is not being provided. However, we don't know the condition without examining the device. If you are concerned about the life expectancy our recommendation is to replace it. There is no benefit to installing both the old and new device together. Doing so will not increase the level of protection.

Will this work in a Siemens panel?

Asked by Ben March 9, 2019
2
Answers

No

What is the Nominal Discharge Current rating? 10kA?

Asked by anon March 2, 2019
1
Answer

Yes, MSA2020SPDP has a discharge current withstand rating of 10kA line-to-neutral (not to be confused with the 10kA interrupting rating).This is listed on page 3-16 of the link below. https://w3.usa.siemens.com/powerdistribution/us/en/speedfax-product-catalog/Documents/2017/SF-17-Sect-03-ALL-web.pdf

Will this fit in a GE panel?

Asked by MathiasBenji October 5, 2018
2
Answers

I think it will fit physically but it's not rated for a GE panel. GE makes whole house surge protector, however it doesn't have the built in breakers so you loose 2 full size spaces.DIYer

My electrical box says: "Circuit Breakers use class CTL Murray Style MP, I.T.E. style EQ-P, or We...

Asked by JayFootball July 12, 2018
1
Answer

Yes. MSA2020SPDP is a Type QP breaker. The designation of circuit breaker types changed in the late 1970’s when series ratings were introduced. Before that time ITE manufactured circuit breakers that were identified as EQ-P or EQ-T. In approximately 1976 these designations were changed to circuit Breaker Types QP and QT, respectively, by dropping the E. Types QP and QT can be used in equipment that have the earlier ITE Types designated on the interior label or marking of the equipment. For a formal letter stating this send a request to productselection.us@siemens.com.

My electrical panel is a Murray style MP. Will this fit?

Asked by JayFootball July 9, 2018
2
Answers

The electrical box says: "Circuit Breakers use class CTL Murray Style MP, I.T.E. style EQ-P, or Westinghouse Quicklag P" It does not say MP-T style. Will this surge protected Circuit breaker fit?

6.5 in in description appears to be an error.

Asked by RSP April 19, 2018
3
Answers

yes, 6.5 in. is wrong. This is the size of a standard 2 pole breaker.

20 Amp 6.5 in. Whole House Surge Protected Circuit Breaker - page 2

Customer Reviews

  • 4.7
    out of 14 reviews
  • 88% recommend this product
5star-icon11
4star-icon2
3star-icon0
2star-icon1
1star-icon0
Filter by:
Showing 1-10 of 14 reviews
I installed a replacement for the same model that was installed for about 20 years. Within 1 yea...
I installed a replacement for the same model that was installed for about 20 years. Within 1 year it had oxidized (still seems to be working though). I called the manufacturer and they couldn't tell me what was causing it or if it was dangerous.
by mfs1855
Response from SIEMENS Product ExpertFeb 12, 2018
Hello,
I am sorry to hear that. One factor could be the age and/or location of the equipment this was being used with. If it was exposed to the outdoors and not in the properly rated enclosure that could also be a potential factor. Our aftermarket tech support line is 800-333-7421 and we would be happy to research further into this SIEMENS
Best Circuit Breaker Style Whole House Surge Suppressor on the market
This is the best circuit breaker style plug in whole house surge suppressor on the market. The clamping voltage is 500V which is 100V lower than most other whole house surge suppressors. Most manufacturers try to explain that it is important to keep the leads, if any, as short as possible between the connection point on the electrical panel and the surge suppressor, but most manufacturers also fail to explain what will happen if you do not. There are no leads on circuit breaker style surge suppressors. Circuit breaker style surge suppressors are also called integral surge suppressors. See the picture below from a document called TVSS_wp1.pdf that I found on the internet. Compare the Green verticle bar for Probe #2 (surge voltage at the wall outlet) for an integral surge suppressor to the Yellow (3 feet of 6AWG connecting leads) and Blue (3 feet of 10AWG connecting leads). 3 feet of 6AWG connecting wire will double the surge voltage that gets past the surge suppressor and 3 feet of 10AWG connecting wire will let 2.5x more surge voltage get through to your appliance.
by theBestStuff
9 people found this helpful
Not in the local box store or electrical supply. I...
Not in the local box store or electrical supply. I was able to get it more quickly through Home Depot online. Worked for this job perfectly.
by CHRISTINE
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by HomeDepotCustomer
It work out great ...
It work out great
by HomeDepotCustomer
Easy install
Easy install
by HomeDepotCustomer
Great that it fits into Murray panels especially if you...
Great that it fits into Murray panels especially if you have no room around the panel.
by JP
5 Star Review
Rating provided by a verified purchaser
by Martin
Installed easily and lit up as required. The proof will...
Installed easily and lit up as required. The proof will be when it protects me from a surge. Recommend.
by Dollar
Fit exactly as written. Looks clean. Install simple
Fit exactly as written. Looks clean. Install simple
by winslow
