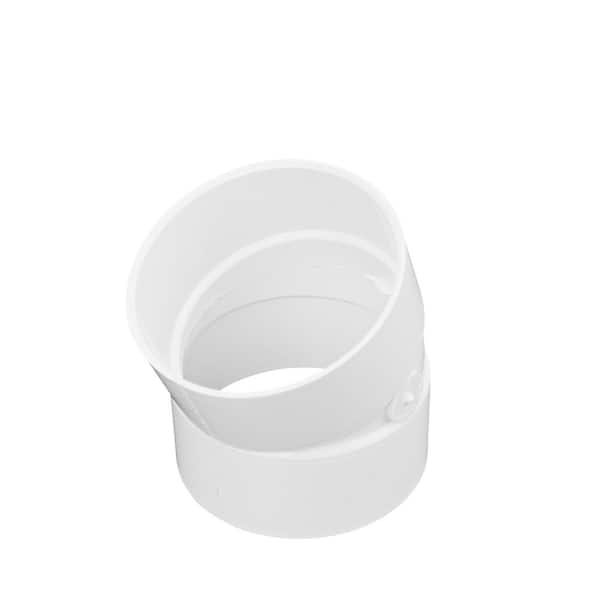

PVC S&D 22.5° Elbow, 4 in. Hub X Hub

$325
  • Makes a 22.5° turn in 4 in. S&D pipeline
  • Connects 4in. S&D pipe to select drainage parts to convey water
  • Made of PVC for Hub X Hub solvent-weld connections
  • See More Details
Store
0 in stock
Text to Me

Frequently Bought Together

+
+
Price:
$325

Product Overview

The 4 in. PVC Elbow makes a 22.5° turn in 4 in. sewer and drain (S&D) pipe runs. The 22.5° Ell also connects to select drainage products compatible with 4 in. S&D connections such as channel drain outlets, Flo-Well® Dry Well System, drainage grates, and pop-up emitters. The drain fitting is made of polyvinyl chloride (PVC) for Hub X Hub solvent-weld connections. Meets applicable ASTM standards. For use in non-pressurized underground sewer and drainage applications; maximum working pressure of 5 psi. This elbow is used to make a change in direction in the pipeline and connects two pipes of the same type and diameter size. Hassle-free limited lifetime warranty guarantees the NDS product is free from defects—or we’ll replace it. NDS offers free tools such as the Home Drainage Center, Calculators, and NDS Stormwater Drainage mobile app to help make your project a success. Founded in 1972, NDS is the preferred choice of professionals and the leader in stormwater management solutions with proven products, tools, and support to help you get the job done right.
  • Adds a 22.5-degree turn from 4 in. Sewer & Drain (S&D) pipe to 4 in. S&D pipe in non-pressurized drainage and sewer piping systems
  • Adds a 22.5-degree turn from select drainage products such as channel drain outlets, Flo-Well® Dry Well System, drainage grates, and pop-up emitters to 4 in. S&D pipe
  • Meets applicable ASTM standards
  • Comes with one PVC Elbow
  • As part of a complete drainage system, the PVC elbow adds a 22.5-degree turn to the pipeline as it connects two pipes of the same type and diameter size together; it can also add a 22.5-degree turn from drainage product to drain pipe

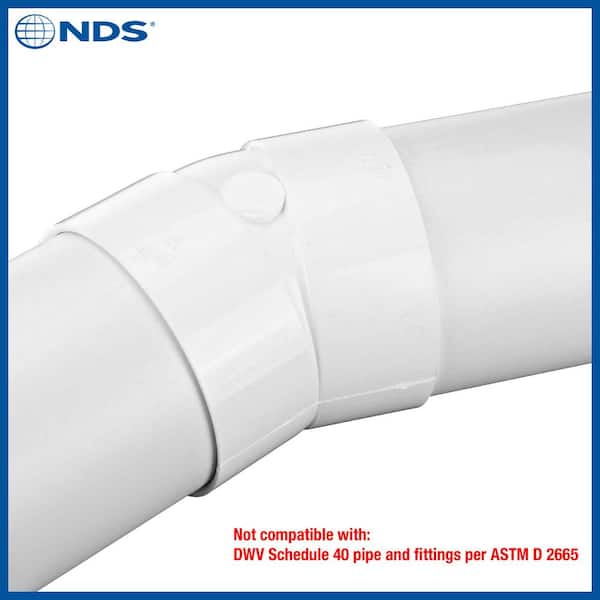

  • Attach 4 in. S&D pipe to one end of 22.5-degree elbow and another 4 in. S&D pipe to the other end; also connects 4 in. S&D pipe to select drainage products that accommodate 4 in. S&D connections; can be solvent-welded to PVC components for a watertight connection
  • Elbow made of polyvinyl chloride (PVC) using a combination of virgin and recycled content treated with UV inhibitors to prevent fading and cracking.
  • Use with the Flo-Well Dry Well System and select Channel Drain Outlets, Low-Profile Adapter Drains, Square Grates, Round Grates, and Atrium Grates to collect and convey water to drain pipe
  • Use with Pop-Up Drainage Emitters to discharge water at a point of release
  • Use sewer and drain fittings when you need to transition between different pipe types and sizes, or to change direction and make connections in the pipeline
  • Onsite stormwater management protects the watershed downstream, and limits excess runoff which can lead to negative impacts such as erosion, pollution, and flooding
  • Founded in 1972, NDS is the preferred brand trusted by professionals with proven products, tools, and support for any size project.
  • NDS offers free tools such as the Home Drainage Center, Calculators, and NDS Stormwater Drainage mobile app to help make your project a success
