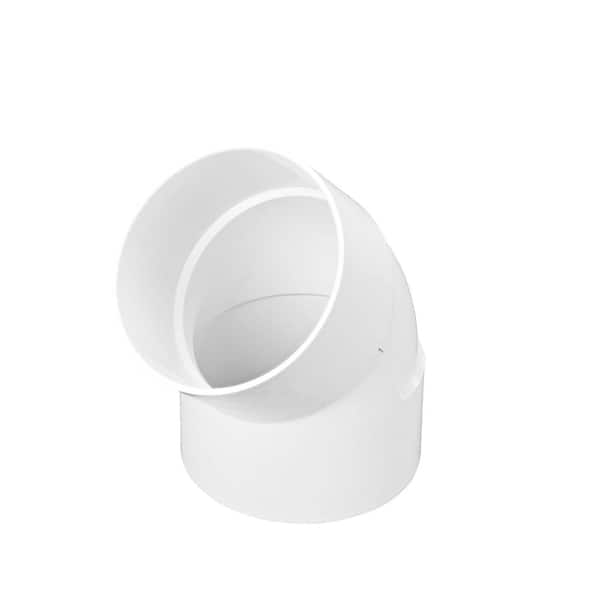

PVC S&D 45° Elbow, 6 in. Hub X Hub

$783
  • Makes a 45° turn in 6 in. S&D pipeline
  • Connects 6 in. S&D pipe to select drain products to convey water
  • Made of PVC for Hub X Hub solvent-weld connections
  • View More Details
Store
0 in stock
Text to Me

Frequently Bought Together

+
+
Price:
$783

Product Overview

The 6 in. PVC Elbow makes a 45° turn in 6 in. sewer and drain (S&D) pipe runs. The 45° Ell also connects to select drainage products compatible with 6 in. S&D connections such as drainage grates and pop-up emitters. The drain fitting is made of polyvinyl chloride (PVC) for Hub X Hub solvent-weld connections. Meets applicable ASTM standards. For use in non-pressurized underground sewer and drainage applications; maximum working pressure of 5 psi. This elbow is used to make a change in direction in the pipeline and connects two pipes of the same type and diameter size. Hassle-free limited lifetime warranty guarantees the NDS product is free from defects—or we’ll replace it. NDS offers free tools such as the Home Drainage Center, Calculators, and NDS Stormwater Drainage mobile app to help make your project a success. Founded in 1972, NDS is the preferred choice of professionals and the leader in stormwater management solutions with proven products, tools, and support to help you get the job done right.
  • Adds a 45-degree turn from 6 in. Sewer & Drain (S&D) pipe to 6 in. S&D pipe in non-pressurized drainage and sewer piping systems
  • Adds a 45-degree turn from select drainage products such as drainage grates and pop-up emitters to 6 in. S&D pipe
  • Meets applicable ASTM standards
  • Comes with one PVC Elbow
  • As part of a complete drainage system, the PVC elbow adds a 45-degree turn to the pipeline as it connects two pipes of the same type and diameter size together; it can also add a 45-degree turn from drainage product to drain pipe

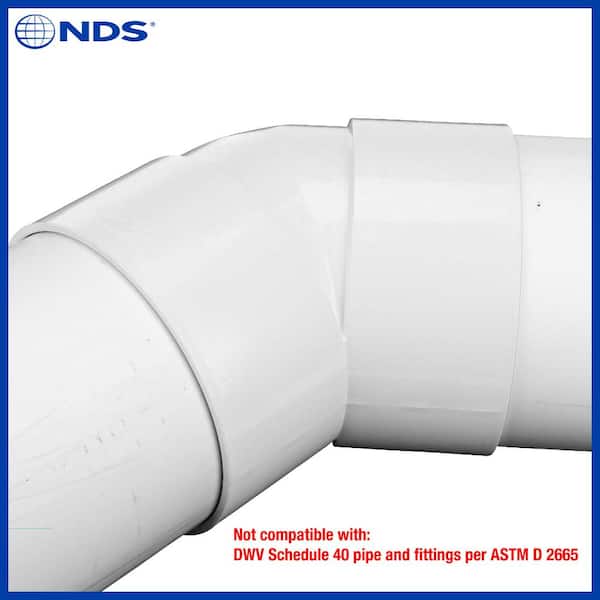

  • Attach 6 in. S&D pipe to each end of 45-degree elbow; also connects 6 in. S&D pipe to select drainage products that accommodate 6 in. S&D connections; can be solvent-welded to PVC components for a watertight connection
  • Elbow made of polyvinyl chloride (PVC) using a combination of virgin and recycled content treated with UV inhibitors to prevent fading and cracking.
  • Use with select Low-Profile Adapter Drains, Square Grates, Round Grates, and Atrium Grates to collect and convey water to drain pipe
  • Use with Pop-Up Drainage Emitters to discharge water at a point of release
  • Use sewer and drain fittings when you need to transition between different pipe types and sizes, or to change direction and make connections in the pipeline
  • Onsite stormwater management protects the watershed downstream, and limits excess runoff which can lead to negative impacts such as erosion, pollution, and flooding
  • Founded in 1972, NDS is the preferred brand trusted by professionals with proven products, tools, and support for any size project.
  • NDS offers free tools such as the Home Drainage Center, Calculators, and NDS Stormwater Drainage mobile app to help make your project a success

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar PVC Fittings

current product
PVC S&D 45° Elbow, 6 in. Hub X Hub
PVC S&D Tee, 6 in. Hub X Hub X Hub6 in. PVC Schedule 40 45-Degree S x S Elbow Fitting6 in. PVC DWV 45-Degree Hub x Hub Elbow
BrandNDSNDSCharlotte PipeCharlotte Pipe
NamePVC S&D 45° Elbow, 6 in. Hub X HubPVC S&D Tee, 6 in. Hub X Hub X Hub6 in. PVC Schedule 40 45-Degree S x S Elbow Fitting6 in. PVC DWV 45-Degree Hub x Hub Elbow
Price
$783
$1828
$2587
$2794
Ratings
(12)
(7)
(136)
(0)
Fitting 1 size6"6"6"6"
Fitting or Connector TypeElbowTeeElbowElbow
Schedule TypeSchedule SDR35Schedule SDR35Schedule 40Schedule 40
Pack Size1111
ConnectivityHubHubSolvent CementedSolvent Cemented
ApplicationNon-Potable WaterNon-Potable WaterNon-Potable WaterNon-Potable Water
DWVDWVOtherPressureDWV
FeaturesCorrosion ResistantCorrosion ResistantUnderground UseUnderground Use
Fitting/ Connector CollectionSewer & DrainSewer & DrainPVCPVC
View ProductView ProductView ProductView Product

Specifications

Dimensions

Double Fitting Size
6" x 6"
Fitting 1 size
6"
Fitting 2 size
6"
Product Depth (in.)
10.5
Product Height (in.)
10.5
Product Width (in.)
6.63

Details

Application
Non-Potable Water
Bend Degree
45 Degree
Color Family
White
Color/Finish
White/Matte
Compatible Pipe Material
PVC
Connection 1
Hub
Connection 2
Hub
Connectivity
Hub
DWV
DWV
Features
Corrosion Resistant
Fitting or Connector Type
Elbow
Fitting/ Connector Collection
Sewer & Drain
Material
PVC
Maximum working pressure (psi)
5
Maximum Working Temperature (F)
140
Pack Size
1
Pipe or Fitting Product Type
Fittings & Connectors
Product Weight (lb.)
2.12
Reducing Fitting
No
Returnable
90-Day
Schedule Type
Schedule SDR35

Warranty / Certifications

Manufacturer Warranty
Limited Lifetime
