1-1/2 in. Copper Cup x FIP Female Adapter Fitting

$30.39
Apply Now
Pay $5.39 after $25 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
  • Copper fitting compatible with copper pipe material
  • Easy to install, ensuring a clean, watertight seal
  • Naturally lead-free and dezincification resistant
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy

Product Details

About This Product

This lead-free wrot copper solder pressure 45 degree elbow is used in residential and commercial systems such as potable water, air conditioning and refrigeration. Options include cleaned and bagged for oxygen service (medical gas). The 45 degree elbow features solder cups. The fitting provides a means of changing the pipe line direction by 45 degree .

Highlights

  • 11/2 in. Inside Diameter and 1.625 in. Outside Diameter
  • ASTM B75 alloy C12200
  • Third-party certified to NSF/ANSI 61 and 372
  • Adapts to standard male pipe threads
  • Material and workmanship per ASME B16.22
  • Material, workmanship and dimensions per MSS SP-104
  • Dezincification resistant
  • "11/2 I.D. and 1.625 O.D."
  • Note: product may vary by store
  • Return Policy

Product Information

Internet # 100347623

Model # C603HD112

Store SKU # 929381

Store SO SKU #1001054513

Specifications

Dimensions

Double Fitting Size

1-1/2" x 1-1/2"

Fitting 1 size

1-1/2"

Fitting 2 size

1-1/2"

Fitting Size Dimensions

1-1/2" x 1-1/2"

Product Length (in.)

2.3 in

Single Fitting Size

1-1/2"

Details

Application

Air Conditioning, Potable Water, Refrigeration

Color Family

Copper

Color/Finish

Copper

Compatible Pipe Material

Copper

Connection 1

Copper Sweat

Connection 2

FIP

Connectivity

Solder

Copper Fitting Manufacturing Process

Wrought

Features

Corrosion Resistant, Lead Free

Fitting or Connector Type

Adapter

Fitting/ Connector Collection

Copper

Material

Copper

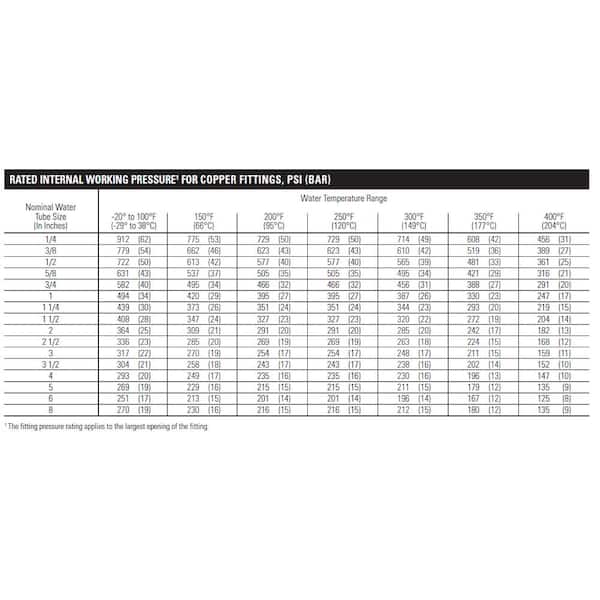

Maximum working pressure (psi)

408

Maximum Working Temperature (F)

400

Pack Size

1

Pipe or Fitting Product Type

Fittings & Connectors

Product Weight (lb.)

0.444 lb

Reducing Fitting

No

Returnable

90-Day

Warranty / Certifications

Manufacturer Warranty

The Manufacturer warrants to the Owner, for a period of 50 years from the date the warranty begins, that its properly installed Product will be free of failure as a result of defects in material or workmanship in manufacturing the Product.

Questions & Answers

2Questions
caret
Q:does this fit into a tee to be soldered or do you need a connector and a piece of pipe?
by|Apr 11, 2021
1 Answer
Answer This Question

A:  Thank you for your inquiry on the NIBCO 1-1/2 in. Copper Cup x FIP Female Adapter Fitting. The fitting will accept copper tubing for jointing together as it is female solder cup. It will not fit into another fitting for soldering. For that you would need a 603-2 1-1/2 in. series fittings. If you have additional questions, you can reach a NIBCO Technical Services Advisor, M-F 8am - 5pm EST, by phone at (888) 446-4226.

by|Nov 7, 2022
    1 found this answer helpful
    caret
    Q:is this Fitting WROT and approved for burial into earth
    by|Dec 5, 2020
    1 Answer
    Answer This Question

    A:  Thank you for your inquiry on the NIBCO 1-1/2 in. Copper Sweat x FIP Female Adapter Fitting. Burial or installation practices is something that would be up to the local code so we recommend checking with your authority having jurisdiction or local code inspector. If you have additional questions, you can reach a NIBCO Technical Services Advisor, M-F 8am - 5pm EST, by phone at (888) 446-4226.

    by|Dec 7, 2020
      Showing 1-2 of 2
