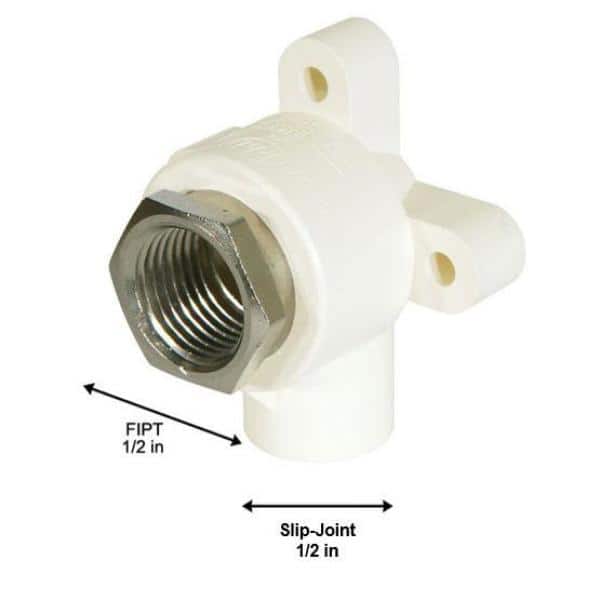

1/2 in. CPVC-CTS and 90-Degree S x FIPT Drop Elbow Fitting

$6.58
  • Ideal for changing directions of pipes and forms 90 degree layout
  • Installation requires basic cutting tools and solvent cement
  • Withstands work pressure up to 400 PSI
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy

Product Details

About This Product

The NIBCO CPVC-CTS 90 degree drop ear elbow with washer is made of FlowGuard Gold CPVC and is ideally suited for hot and cold water pressure distribution systems in residential and commercial applications. The CPVC-CTS 90 degree drop ear elbow with washer features a female socket x female NPT threaded connection and is used to change the direction of flow. Please refer to NIBCO technical data sheets and catalogs for engineering and installation information. Chlorinated Polyvinyl Chloride (CPVC) has proven to be an excellent material for hot corrosive liquids, hot and cold water distribution, and similar applications above the temperature range of PVC. CPVC will not rust, pit, scale or corrode. CPVC fittings are easy to install and are joined by solvent cementing or threading. NIBCO plastic fittings are backed by a 5-year limited warranty. Because of its longstanding reputation for innovation and precision in design and manufacturing, NIBCO is the preferred brand in the industry. FlowGuard Gold is a registered trademark of The Lubrizol Corporation.

Highlights

  • 1/2 in. Inside Diameter and 0.625 in. Outside Diameter
  • Chlorinated polyvinyl chloride (CPVC) has proven to be an excellent material for hot corrosive liquids, hot and cold water distribution, and similar applications above the temperature range of PVC; CPVC will not rust, pit, scale or corrode
  • Changes direction in pipe
  • Compatible with CPVC pipe
  • Solvent weld slip x bronze female iron pipe thread (FIPT) connection
  • Maximum working pressure of 400 psi
  • Provides lugs for fastening
  • Do not use with compressed air or other gases
  • Return Policy

Product Information

Internet # 206337951

Model # C470735SIHD12

Store SKU # 353426

Specifications

Dimensions: H 1.480 in, W 2.550 in, D 2.840 in

Dimensions

Double Fitting Size

1/2" x 1/2"

Fitting 1 size

1/2"

Fitting 2 size

1/2"

Fitting Size Dimensions

1/2" x 1/2"

Product Depth (in.)

2.840 in

Product Height (in.)

1.480 in

Product Width (in.)

2.550 in

Single Fitting Size

1/2"

Details

Application

Non-Potable Water, Potable Water

Bend Degree

90 Degree

Color Family

Cream

Color/Finish

CPVC

Compatible Pipe Material

CPVC

Connection 1

Slip-Joint

Connection 2

FIPT

Connectivity

Solvent Cemented

Features

Corrosion Resistant, Lead Free

Fitting or Connector Type

Elbow

Fitting/ Connector Collection

CPVC

Material

Chlorinated Poly Vinyl Chloride (CPVC)

Maximum working pressure (psi)

400

Maximum Working Temperature (F)

180

Pack Size

1

Pipe or Fitting Product Type

Fittings & Connectors

Product Weight (lb.)

0.149 lb

Reducing Fitting

No

Returnable

90-Day

Warranty / Certifications

Manufacturer Warranty

NIBCO plastic fittings are backed by a 5-year limited warranty

Questions & Answers

8Questions
caret
Q:I see many incorrect responses here by people that are not Nibco tech support. What pipe metallurgies are compatible with the stainless steel insert? From what I have read, galvanized metals are not compatible but brass/copper is compatible, correct?
by|Mar 20, 2023
1 Answer
Answer This Question

A:  Thank you for your inquiry on the NIBCO 1/2 in. CPVC-CTS and 90-Degree S x FIPT Drop Elbow Fitting. For domestic water systems specifically, the best practice would be to use the same material if possible. In this case, the stainless steel Copper and Bronze/Brass are fairly close together on the Active (Anodic) list so they should be ok/acceptable. If dissimilar metals must be used within a plumbing system, connect the two pipes with dielectric connections, which will prevent electrical contact between the two dissimilar metals. The use of dielectric unions/connections may also be required by local codes and may different between different Authority having Jurisdictions. Galvanized steel being coated with Zinc would not be recommended for a direct connection to these materials and a dielectric union of some kind should be used if the materials must be mixed in a system. If you have additional questions, you can reach a NIBCO Technical Services Advisor, M-F 8am - 5pm EST, by phone at (888) 446-4226.

by|Mar 30, 2023
    1 found this answer helpful
    caret
    Q:What metals are used for the female fitting ?
    by|Sep 7, 2022
    2 Answers
    Answer This Question

    A:  1/2" female pipe thread. You can use galvanized pipe. This is a drop ear for a shower arm. The shower arm usually comes with a shower head kit. The shower arm can be about 8" and comes in chrome, nickel, brass and other colors. If you were using this for a tub spout then you could run a copper male 1/2" thread to sweat.

    by|Mar 21, 2023

      A:  Thank you for your inquiry on the NIBCO 1/2 in. CPVC-CTS and 90-Degree S x FIPT Drop Elbow Fitting. The threaded end is a Stainless Steel FIPT insert. If you have additional questions, you can reach a NIBCO Technical Services Advisor, M-F 8am - 5pm EST, by phone at (888) 446-4226.

      by|Sep 7, 2022
        caret
        Q:If this is to be used as a drop ear for a sink, what supply line valve would you recommend? Since this is SS, there are few/no options available for SS shut off valves and mixing brass with SS is not recommended (unlike metals dont play nice).
        by|Jan 6, 2022
        2 Answers
        Answer This Question

        A:  Sorry I would only use this for shower head connection.

        by|Jan 8, 2022

          A:  Thank you for your inquiry on the NIBCO 1/2 in. CPVC-CTS and Lead-Free Copper Silicon Alloy Pressure 90-Degree S x FIPT Drop Elbow Fitting. Generally Drop ears are used to make a 90-Degree turn from a piping into a fixture like a shower head. The compatibility between Stainless steel and copper/copper alloys like brass or bronze is fine and galvanic reaction between these materials is negligible and would not require something like an dielectric union. You should check with their local code enforcement to see what is acceptable for your area and what they recommend for their installation/system you are working with. If you have additional questions, you can reach a NIBCO Technical Services Advisor, M-F 8am - 5pm EST, by phone at (888) 446-4226.

          by|Jan 7, 2022
            caret
            Q:are the threads tapered?
            by|May 16, 2021
            3 Answers
            Answer This Question

            A:  Thank you for your inquiry on the NIBCO 1/2 in. CPVC-CTS and Lead-Free Copper Silicon Alloy Pressure 90-Degree S x FIPT Drop Elbow Fitting. Yes, the threads are NPT tapered threads. If you have additional questions, you can reach a NIBCO Technical Services Advisor, M-F 8am - 5pm EST, by phone at (888) 446-4226.

            by|May 17, 2021

              A:  Not sure what you are asking. It's like a standard galvanized fitting

              by|Nov 24, 2021
              1 found this answer helpful

              A:  Yes..its like a regular galvanized fitting

              by|Jun 1, 2021
              Showing 1-4 of 8

              Customer Reviews

              4.8 out of 5

              • 4.8 out of 124 reviews
              • 86% recommend this product
              Filter by:
              Showing 1-10 of 124 reviews
              Exactly What I Needed!
              My project involved removing my existing shower control valve connected by PEX lines, and enable me to be able to connect the hot and cold lines of a new Shower Panel with Braided Stainless Steel screw on lines...Much like a washing machine connects. This fitting was the only fitting to enable me to do that successfully, and without any difficulties whatsoever. Overall, I am extremely pleased with the quality of this fitting, and Highly Recommend it.
              by
              • DIY
              • Recommended
              1 found this review helpful
              just what I needed to fix the line
              by
              • Verified Purchase
              The product I received was threaded (pipe pointed up when tightened not downward) improperly. I’m sure I just grabbed one that was faulty.
              by
              • Verified Purchase
              by
              • Verified Purchase
              Forget sweating copper. I don't like Pex because it's never neat. CPVC is the way to go. CPVC looks neat and is fun, fast & easy.
              by
              • Verified Purchase
              by
              • Verified Purchase
              by
              • Verified Purchase
              This is a very good transition fitting. I used it for showerhead when replacing my shower valve. This 90 degree transition fitting made it east to go from cpvc pipe it nipple for showerhead. In plumbing world this transition fitting is known as a "dog ear". It's a sturdy strong fitting that can be used in a lot of different ways. Basically glue n your cpvc pipe to dog ear then screw in your nipple using Teflon tape or choice of sealer. It works everytime it's used properly. Work saver. I've used them many years and it makes work easy and saves time.
              by
              • Verified Purchase
              by
              • Verified Purchase
              by
              • Verified Purchase
