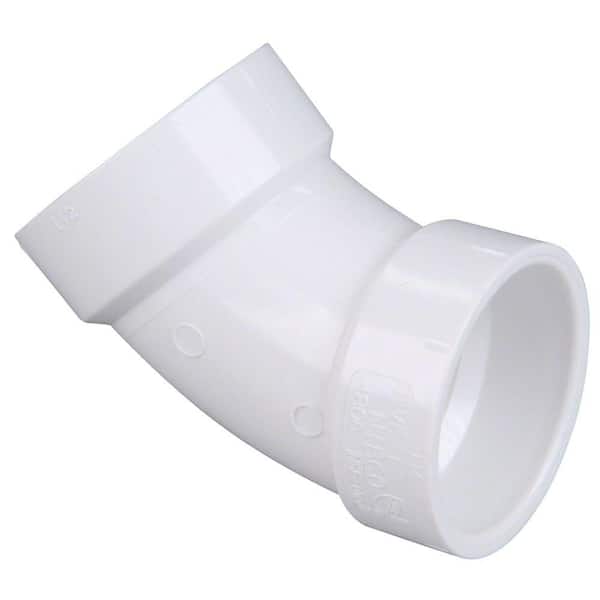

3 in. PVC DWV 45-Degree Hub x Hub Elbow

  • Reorient direction of pipeline by 45 degrees & removes wastewater
  • Solvent-welding compatible PVC construction
  • Maximum working pressure: 5 PSI
  • See More Details

Frequently Bought Together

+
+
Price:

Product Overview

With the NIBCO 3 in. PVC DWV 45° Hub x Hub Elbow, you can complete the installation of your DWV system. The fitting features a PVC construction and changes the direction of piping 45°. PVC fittings exhibit high corrosion and chemical resistance and will not rust, scale, pit or corrode.

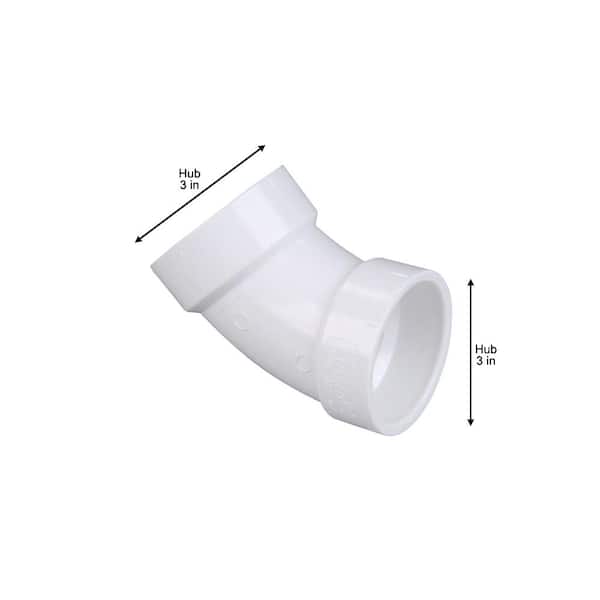

  • 3 in. I.D. and 3.125 in. O.D.
  • PVC construction
  • For use with non-pressurized DWV systems to help remove wastewater from plumbing fixtures
  • Helps air circulate in drainage piping
  • Changes the direction of PVC piping 45 degree
  • Solvent weld connections
  • Apply a primer to the PVC before cementing
  • Maximum working pressure of 5 psi
  • Note: product may vary by store
  • California residents

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar PVC Fittings

current product
3 in. PVC DWV 45-Degree Hub x Hub Elbow
3 in. PVC DWV 45-Degree Spigot x Hub Street Elbow3 in. PVC 22-1/2-Degree Hub x Hub Elbow3 in. PVC DWV 45-Degree All Hub Wye
BrandNIBCONIBCONIBCONIBCO
Name3 in. PVC DWV 45-Degree Hub x Hub Elbow3 in. PVC DWV 45-Degree Spigot x Hub Street Elbow3 in. PVC 22-1/2-Degree Hub x Hub Elbow3 in. PVC DWV 45-Degree All Hub Wye
Price
Ratings
(14)
(13)
(49)
(53)
Fitting 1 size3"3"3"3"
Fitting or Connector TypeElbowElbowElbowWye
Schedule TypeSchedule DWVSchedule DWVSchedule DWVSchedule DWV
Pack Size1111
ConnectivitySolvent CementedSolvent CementedSolvent CementedSolvent Cemented
DWVDWVDWVDWVDWV
FeaturesLead FreeCorrosion Resistant,Lead FreeCorrosion Resistant,Lead FreeLead Free
ApplicationSewageSewageSewageSewage
MaterialPVCPVCPVCPVC
View ProductView ProductView ProductView Product

Specifications

Dimensions

Double Fitting Size
3" x 3"
Fitting 1 size
3"
Fitting 2 size
3"
Product Depth (in.)
6.94
Product Height (in.)
5.62
Product Width (in.)
3.97

Details

Application
Sewage
Bend Degree
45 Degree
Color Family
White
Color/Finish
White
Compatible Pipe Material
PVC
Connection 1
Hub
Connection 2
Hub
Connectivity
Solvent Cemented
DWV
DWV
Features
Lead Free
Fitting or Connector Type
Elbow
Fitting/ Connector Collection
PVC
Material
PVC
Maximum working pressure (psi)
5
Maximum Working Temperature (F)
140
Pack Size
1
Pipe or Fitting Product Type
Fittings & Connectors
Product Weight (lb.)
0.844
Reducing Fitting
No
Returnable
90-Day
Schedule Type
Schedule DWV

Warranty / Certifications

Manufacturer Warranty
NIBCO INC. warrants each NIBCO plumbing plastic fitting (including plumbing valves) to be free from defects in materials and workmanship under normal use and service for a period of five (5) years from date of purchase.

Questions & Answers

1Questions1Answers

What are the dimensions?

Asked by John February 7, 2021
1
Answer

Thank you for your inquiry on the NIBCO 3 in. PVC DWV 45 Degree Hub x Hub Elbow. The dimensions are 5.67 in. tall by 6.95 in. long. The hubs are 3 in. x 3 in. nominal and the hub face to center point is 3.25 in. from either cup. If you have additional questions, you can reach a NIBCO Technical Services Advisor, M-F 8am - 5pm EST, by phone at (888) 446-4226.
