Internet #205799553

Model #C4807VHD3

Store SKU #847703

Store SO SKU #1001226626

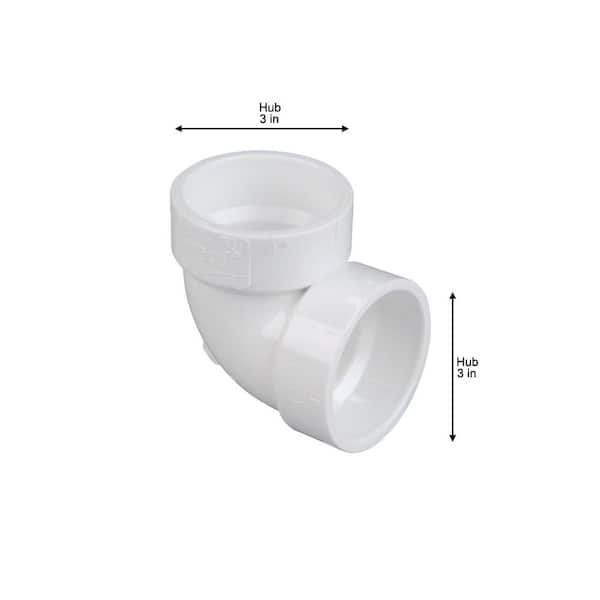

3 in. PVC DWV 90-Degree Hub x Hub Vent Elbow

  • Use in residential and commercial drain, waste, and vent systems
  • Easy install, joined by solvent comenting or threading
  • PVC fitting not for use with compressed or other gases
  • See More Details

Frequently Bought Together

+
+
Price:
$471

Product Overview

The NIBCO 3 in. PVC DWV 90 (1/4 Bend) Hub x Hub Vent Elbow. DWV is used for non pressurized sanitary system Drain, Waste, and Vent. There are 2 types of DWV plastic: ABS (black plastic) and PVC (white plastic). The sanitary drainage and vent piping are installed to remove waste water and water-borne wastes from the plumbing fixtures and appliances. DWV also provides a circulation of air within the drainage piping. ABS (black) and PVC (white) plastic pipe and fittings have identical uses.
  • Changes direction in vent piping 90-degree
  • Solvent welded connections
  • PVC requires a primer before cementing
  • ASTM D2665 and D3311
  • NSF/ANSI Standard 14
  • UL Listed 94V-0
  • NSF U.P. Certified

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar PVC Fittings

current product
3 in. PVC DWV 90-Degree Hub x Hub Vent Elbow
3 in. PVC DWV 90-Degree Hub x Hub Long-Turn Elbow Fitting3 in. PVC DWV All Hub Wye3 in. PVC DWV 90-Degree Street Elbow Fitting
BrandNIBCONIBCONIBCOCharlotte Pipe
Name3 in. PVC DWV 90-Degree Hub x Hub Vent Elbow3 in. PVC DWV 90-Degree Hub x Hub Long-Turn Elbow Fitting3 in. PVC DWV All Hub Wye3 in. PVC DWV 90-Degree Street Elbow Fitting
Price
$471
$637
$651
$702
Ratings
(13)
(104)
(52)
(5)
Fitting 1 size3'3"3"3'
Fitting or Connector TypeElbowElbowWyeElbow
Schedule TypeSchedule DWVSchedule DWVSchedule DWVSchedule 40
ApplicationSewageSewageSewageNon-Potable Water
ConnectivitySolvent CementedSolvent CementedSolvent CementedSolvent Cemented
Pack Size1111
FeaturesLead FreeLead FreeLead FreeUnderground Rated
Bend Degree90 Degree90 Degree 90 Degree
DWV DWVDWV
View ProductView ProductView ProductView Product

Specifications

Dimensions

Double Fitting Size
3' x 3"
Fitting 1 size
3'
Fitting 2 size
3"
Product Depth (in.)
6.83
Product Height (in.)
6.76 in
Product Width (in.)
5.02

Details

Application
Sewage
Bend Degree
90 Degree
Color Family
White
Color/Finish
Plastic
Compatible Pipe Material
PVC
Connection 1
Hub
Connection 2
Hub
Connectivity
Solvent Cemented
Features
Lead Free
Fitting or Connector Type
Elbow
Fitting/ Connector Collection
PVC
Material
PVC
Maximum working pressure (psi)
5
Maximum Working Temperature (F)
140
Pack Size
1
Pipe or Fitting Product Type
Fittings & Connectors
Product Weight (lb.)
0.839
Reducing Fitting
No
Returnable
180-Day
Schedule Type
Schedule DWV

Warranty / Certifications

Manufacturer Warranty
NIBCO INC. warrants each NIBCO plumbing plastic fitting (including plumbing valves) to be free from defects in materials and workmanship under normal use and service for a period of five (5) years from date of purchase.

Questions & Answers

4Questions5Answers

What is the inside diameter of this piece?

Asked by Ky May 9, 2018
2
Answers

1.5 inch. That's is the common size. Its white

Can this be used for a toilet drain?

Asked by mjb428 September 18, 2015
1
Answer

Thank you for your inquiry on the 3 in. PVC DWV 90-Degree H x H Vent Elbow. You would need to check with your local municipality to see if this application is to code. If you need further assistance, you can reach a NIBCO Technical Services Advisor, M-F 8am - 6pm EST, by phone at (888) 446-4226. Thank you!

1)what are the dimensions? 2)Can you please put the right pictures in your product listings?!!!!!!!!!!!!!!!!!!!!!!!!!!!?

Asked by Strayvin October 24, 2018
1
Answer

This elbow measures: 6.76"H x 5.02"W x 6.83"D.

are vent elbows schedule 40

Asked by chad March 13, 2018
1
Answer

Thank you for your inquiry on the 3 in. PVC DWV 90-Degree H x H Vent Elbow. Vent elbows are not Schedule 40 and PVC DWV is not Schedule 40. PVC DWV follows the ASTM D2665 dimensional standard. If you need further assistance, you can reach a NIBCO Technical Services Advisor, M-F 8am - 6pm EST, by phone at (888) 446-4226. Thank you!

Customer Reviews

  • 13 Customer Reviews
  • 4.8 out of 5 stars overall
100% of customers recommended.
Overall Ratings
5star-icon(11)
4star-icon(1)
3star-icon(1)
2star-icon(0)
1star-icon(0)
Sort By:
Was this helpful?
0
0
It did not explode, so that's good. Great fitting standing...
It did not explode, so that's good. Great fitting standing up to alot of psi
Was this helpful?
0
0
This vent elbow worked perfectly on my project....
This vent elbow worked perfectly on my project.
Was this helpful?
0
0
Was this helpful?
0
0
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
Was this helpful?
0
0
I was what I expected. It was more difficult to...
I was what I expected. It was more difficult to find in you ordering format than expected
Was this helpful?
0
0
They work great with cleaner and glue...
They work great with cleaner and glue
Was this helpful?
0
0
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
Was this helpful?
0
0
It's a piece of molded PVC. Enough said....
It's a piece of molded PVC. Enough said.
Was this helpful?
0
0
Perfect for venting .Its white
Perfect for venting .Its white
Was this helpful?
0
0
