Internet #100344767

Model #C4801RPHD3

Store SKU #472638

Store SO SKU #1000535380

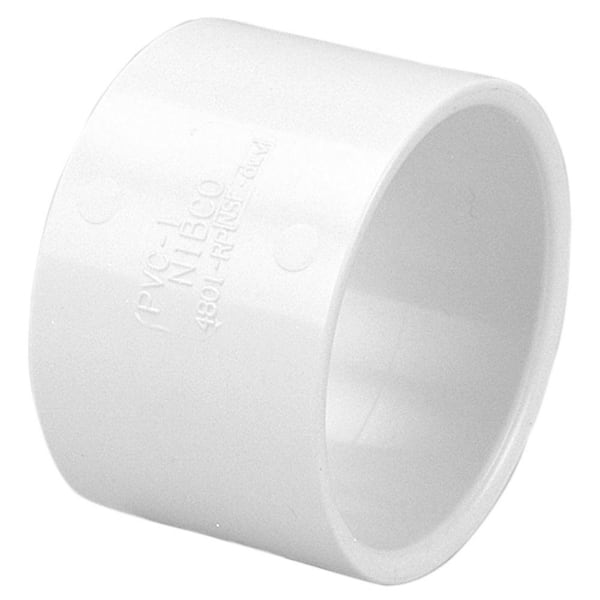

3 in. PVC DWV Hub x Hub Repair Coupling

  • Use in residential and commercial drain, waste, and vent systems
  • Easy install, joined by solvent comenting or threading
  • PVC fitting not for use with compressed or other gases
  • See More Details

Frequently Bought Together

+
+
Price:
$547

Product Overview

The NIBCO PVC DWV repair coupling is used in residential and commercial drain, waste and vent systems. The PVC DWV repair coupling features a hub x hub connection without a stop and repairs and/or connects lengths of PVC DWV piping. Polyvinyl chloride (PVC) is the most frequently specified of all thermoplastic materials because of its light weight, durability, and cost-effectiveness.
  • PVC requires the use of a primer before cementing
  • Furnished without a center stop
  • Use to splice together stationary lengths of PVC DWV piping
  • Hub x hub connections
  • Solvent-welded connections
  • NSF/ANSI Standard 14
  • Note: product may vary by store

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar PVC Fittings

current product
3 in. PVC DWV Hub x Hub Repair Coupling
3 in. x 3 in. x 2 in. PVC DWV All Hub Sanitary Tee Fitting3 in. PVC DWV All Hub Wye3 in. x 3 in. PVC DWV Mechanical Flexible Coupling
BrandNIBCONIBCONIBCOFernco
Name3 in. PVC DWV Hub x Hub Repair Coupling3 in. x 3 in. x 2 in. PVC DWV All Hub Sanitary Tee Fitting3 in. PVC DWV All Hub Wye3 in. x 3 in. PVC DWV Mechanical Flexible Coupling
Price
$547
$597
$651
$678
Ratings
(30)
(134)
(52)
(313)
Fitting 1 size3"3"3"3"
Fitting or Connector TypeCouplingTeeWyeCoupling
Schedule TypeSchedule DWVSchedule DWVSchedule DWVSchedule 40
ApplicationSewageNon-Potable Water,SewageSewage
ConnectivitySolvent CementedSolvent CementedSolvent CementedCompression
DWVDWVDWVDWV
Pack Size1111
FeaturesCorrosion Resistant,Lead FreeLead FreeLead FreeCorrosion Resistant,Flexible,Lead Free,Removable,UV Resistant,Underground Rated,Underground Use
View ProductView ProductView ProductView Product

Specifications

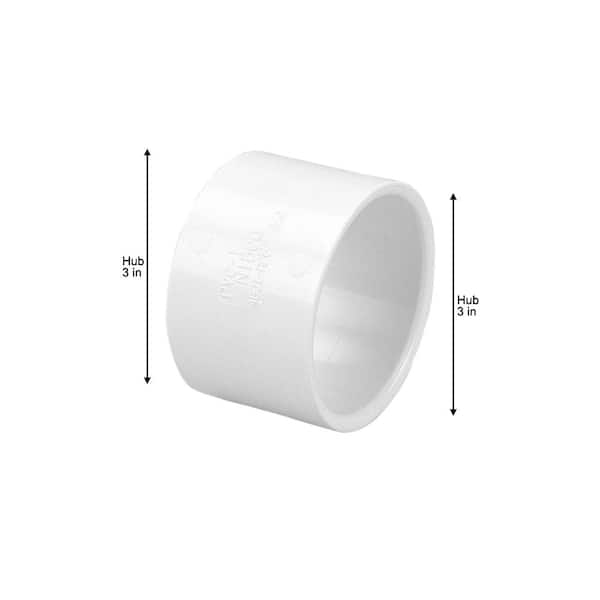

Dimensions

Double Fitting Size
3" x 3"
Fitting 1 size
3"
Fitting 2 size
3"
Product Length (in.)
3

Details

Application
Sewage
Color Family
White
Color/Finish
White
Compatible Pipe Material
PVC
Connection 1
Hub
Connection 2
Hub
Connectivity
Solvent Cemented
DWV
DWV
Features
Corrosion Resistant,Lead Free
Fitting or Connector Type
Coupling
Fitting/ Connector Collection
PVC
Material
PVC
Maximum working pressure (psi)
5.0
Maximum Working Temperature (F)
140
Pack Size
1
Pipe or Fitting Product Type
Fittings & Connectors
Product Weight (lb.)
0.417
Reducing Fitting
No
Returnable
180-Day
Schedule Type
Schedule DWV

Warranty / Certifications

Manufacturer Warranty
NIBCO INC. warrants each NIBCO plumbing plastic fitting (including plumbing valves) to be free from defects in materials and workmanship under normal use and service for a period of five (5) years from date of purchase.

Questions & Answers

7Questions9Answers

can i cut 2 of these in half and use them to go over a 6" pipe

Asked by Dana March 8, 2020
2
Answers

Thank you for your inquiry on the NIBCO 3 in. PVC DWV Hub x Hub Repair Coupling. We would not advise this and if you have 6 in. PVC Sch 40 or DWV piping you should use a 4801 6 in., not a 4801 3 in. If you have additional questions, you can reach a NIBCO Technical Services Advisor, M-F 8am - 6pm EST, by phone at (888) 446-4226.

how do you use the coupling

Asked by RJ July 10, 2018
2
Answers

This coupling splices together 2 lengths of PVC pipe for repairs.

Does this glue over a 3" pvc coupling?

Asked by Jason May 3, 2017
1
Answer

Thank you for your inquiry on the 3 in. PVC DWV Hub x Hub Repair Coupling. The repair coupling can be glued. The connecting pipe will be inserted from both sides. The coupling will connect the open area together. If you need further assistance, you can reach a NIBCO Technical Services Advisor, M-F 8am - 6pm EST, by phone at (888) 446-4226. Thank you!

Does it fit schedule 30 pipe, which has OD of 3.25 in.?

Asked by Kem June 23, 2019
1
Answer

Thank you for your inquiry on the 3 in. PVC DWV Hub x Hub Repair Coupling. No this application will not fit. NIBCO 4800 series fittings for DWV PVC fittings are designed to conform with the dimensional standard ASTM D2665 DWV PVC pipe. 3 in. pipe made to this standard would have a 3.5 in. OD. If you have additional questions, you can reach a NIBCO Technical Services Advisor, M-F 8am - 6pm EST, by phone at (888) 446-4226.

Can I use this with abs pipe underground?

Asked by Happy September 5, 2019
1
Answer

yes

What sizes are these? Do they go as large as 4 inch?

Asked by Al September 15, 2017
1
Answer

The dimensions and accommodations are: Fitting 1 size 2" Fitting 2 size 2" Product Depth (in.) 1.75 Product Height (in.) 2.73 Product Length (in.) 1.75 Product Width (in.) 2.73

What is the inside measurement

Asked by richard October 20, 2020
1
Answer

Thank you for your inquiry on the NIBCO 2 in. PVC DWV Hub x Hub Repair Coupling. This fitting will have a tapered cup, so at the entrance the ID measures 2.385 in. and at the bottom of the cup the ID measures 2.370 in. This fitting is made to solvent weld to Sch 40 2 in. nominal piping that measures 2.375 in. on the OD. If you have additional questions, you can reach a NIBCO Technical Services Advisor, M-F 8am - 5pm EST, by phone at (888) 446-4226.

Customer Reviews

  • 30 Customer Reviews
  • 4.8 out of 5 stars overall
89% of customers recommended.
Overall Ratings
5star-icon(25)
4star-icon(4)
3star-icon(0)
2star-icon(0)
1star-icon(1)
Sort By:
Repair couplings do not have a divider in the inner center of the coupling. Image that I ordered ...
Repair couplings do not have a divider in the inner center of the coupling. Image that I ordered the part from did not Those that I received did. Useless,
Was this helpful?
0
0
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
Was this helpful?
0
0
Expensive fitting only because of it's special application
This coupling is expensive compared to a standard coupling because of production/sales volume. Ordinary couplings, sold in mass quantities, have a stop inside to assure that the pipe is inserted to the perfect depth. That works fine if the ends of the pipe can be separated at least 3" and can be inserted into the fitting. This REPAIR fitting has no stop, and is used ONLY when the pipes being connected are fixed in place and have little linear movement. As long as one pipe can be shifted enough to get the fitting over it, the fitting is dry installed over one pipe and slid out of the way of the splice point. Mark each pipe to assure you can judge when the coupling is centered, apply glue to both pipe ends and then slide the coupling over the splice, taking care to center the coupling across the splice.
Was this helpful?
5
0
Good quality and great price!...
Good quality and great price!
Was this helpful?
0
0
A wonderfully engineered piece of polyvinylchloride. 10/10, would reccomend....
A wonderfully engineered piece of polyvinylchloride. 10/10, would reccomend.
Was this helpful?
0
0
Using the 10 ft section for a birdhouse pole...It works!
Using the 10 ft section for a birdhouse pole...It works!
Was this helpful?
0
0
The best...
The best
Was this helpful?
0
0
It worked like I thought it would....
It worked like I thought it would.
Was this helpful?
0
0
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
Was this helpful?
0
0
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
Was this helpful?
0
0
