#1 Home Improvement Retailer

Internet # 100344086

Model # C48062HD4

Store SKU # 189448

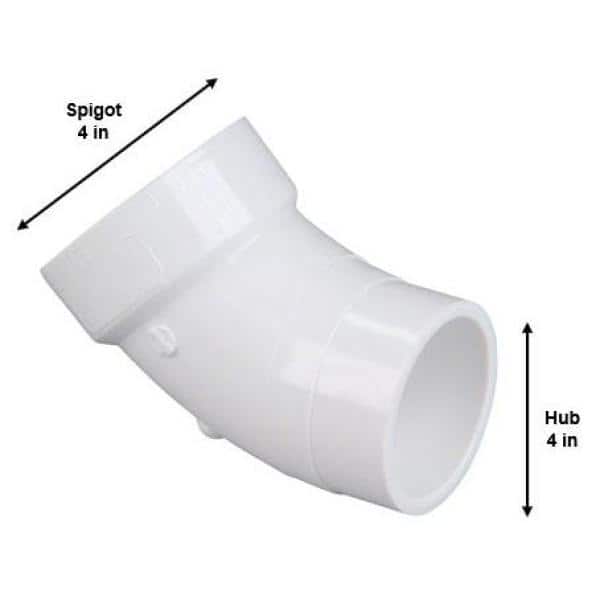

4 in. PVC DWV 45-Degree Spigot x Hub Street Elbow Fitting

$12.91
  • Ideal for changing directions of pipes and forms 45 degree layout
  • PVC construction offers watertight joints and reliable use
  • Installation requires basic cutting tools and solvent cement
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy

Product Details

About This Product

Use the NIBCO 4 in. PVC DWV 45 degree Spigot x Hub Street Elbow to help complete the installation of your DWV system. The fitting features a PVC construction that requires a primer before solvent cementing. PVC DWV is easy to install and is joined by solvent cementing or threading.

Highlights

  • 4 in. Inside Diameter and 4.125 in. Outside Diameter
  • PVC construction
  • For use with DWV systems to help remove wastewater from plumbing fixtures
  • Helps air circulate in drainage piping
  • Changes the direction of piping 45
  • Solvent weld connections
  • Apply a primer to the PVC before cementing
  • Note: product may vary by store
  • Return Policy

Product Information

Internet # 100344086

Model # C48062HD4

Store SKU # 189448

Additional Resources

Shop All NIBCO

Specifications

Dimensions: H 6.88 in, W 5.06 in, D 8.31 in

Dimensions

Double Fitting Size

4" x 4"

Fitting 1 size

4"

Fitting 2 size

4"

Fitting Size Dimensions

4" x 4"

Product Depth (in.)

8.31 in

Product Height (in.)

6.88 in

Product Width (in.)

5.06 in

Single Fitting Size

4"

Details

Application

Sewage

Bend Degree

45 Degree

Color Family

White

Color/Finish

White

Compatible Pipe Material

PVC

Connection 1

Hub

Connection 2

Hub

Connectivity

Solvent Cemented

DWV

DWV

Features

Corrosion Resistant, Lead Free

Fitting or Connector Type

Elbow

Fitting/ Connector Collection

PVC

Material

PVC

Maximum working pressure (psi)

5

Maximum Working Temperature (F)

140

Pack Size

1

Pipe or Fitting Product Type

Fittings & Connectors

Product Weight (lb.)

1.466 lb

Reducing Fitting

No

Returnable

90-Day

Schedule Type

Schedule DWV

Warranty / Certifications

Manufacturer Warranty

NIBCO INC. warrants each NIBCO plumbing plastic fitting (including plumbing valves) to be free from defects in materials and workmanship under normal use and service for a period of five (5) years from date of purchase.

Questions & Answers

3Questions
caret
Q:What is the I.D. and O.D. of each end?
by|Apr 14, 2024
1 Answer
Answer This Question

A:  Thank you for your inquiry on the 4 in. PVC DWV 45-Degree Spigot x Hub Street Elbow Fitting. The OD of the spigot end is 4.5 in and the ID is 4.026 in. The OD of the Hub end is 5.02 in. and the ID is 4.515 in. If you have additional questions, you can reach a NIBCO Technical Services Advisor, M-F 8am - 5pm EST, by phone at (888) 446-4226.

by|Apr 15, 2024
    caret
    Q:Can I connect these or this to itself? Say connect 2 to make a 90-degree spigot?
    by|Jan 12, 2019
    5 Answers
    Answer This Question

    A:  Yes 2 of these connected would make a 90 degree turn...you might also consider a 90 degree street fitting to eliminate a connection joint.

    by|May 21, 2019

    A:  Yes you can connect the two together, the angle they will form may not exactly be a 90 degree. For more information, please contact CS-Technicalservices@nibco.com or call 888-446-4226 Monday through Friday 6:00 AM to 7:00 PM.

    by|Jan 15, 2019

      A:  Yes

      by|Oct 15, 2019

        A:  yes

        by|Jan 15, 2019

          A:  Two will equal a 90 deg bend.

          by|Jan 12, 2019
            caret
            Q:Will the four-inch Spigot elbow fit down inside of the four-inch pipe without a hub?
            by|Dec 11, 2016
            4 Answers
            Answer This Question

            A:  no it needs a sleeve or coupler

            by|Apr 9, 2021

            A:  No. The spigot end has the same OD as PVC-DWV pipe, which fits into the hub end of this fitting, To connect the spigot end to 4" PVC-DWV pipe, you need a 4" PVC-DWV coupler.

            by|May 4, 2023
              1 found this answer helpful

              A:  No

              by|Jan 12, 2019

                A:  No the "street" end is made to fit into a hub...you would need to use a 4" connection fitting on the pipe then insert the street end into the connector or you could just get a standard 45 degree fitting (hubs on both ends).

                by|May 21, 2019
                Showing 1-3 of 3

                Customer Reviews

                4.9 out of 5

                • 4.9 out of 57 reviews
                • 100% recommend this product
                Filter by:
                Showing 1-10 of 57 reviews
                Havn't used it yet, give a guy some time. Products are so expensive, I have to buy in sections till I get it all
                by
                • Verified Purchase
                by
                • Verified Purchase
                This super weird shape is super useful for retrofit repairs....
                This super weird shape is super useful for retrofit repairs. Cement pipe into pvc and flexible rubber in-between. This was useful somewhere along that chaos.
                by
                  It was excellent for what I needed it for....
                  It was excellent for what I needed it for.
                  by
                  • Verified Purchase
                  Bought several pieces. To make a turn. This one I...
                  Bought several pieces. To make a turn. This one I didn’t need and returned. But, a great product. That I would have used. If I needed that angle.
                  by
                  • Verified Purchase
                  by
                  • Verified Purchase
                  Rating provided by a verified purchaser...
                  Rating provided by a verified purchaser
                  by
                  • Verified Purchase
                  by
                  • Verified Purchase
                  Rating provided by a verified purchaser...
                  Rating provided by a verified purchaser
                  by
                  • Verified Purchase
                  Nice heavy product, often pieces in bins have been returned...
                  Nice heavy product, often pieces in bins have been returned by contractors, you imagine the pieces bring ran over with a tractor in the mud, than retuned without much inspection or thought to clean up a bit, the inventory and various types of connectors are limited in the 4inch diameter.
                  by
                  • Verified Purchase
