#1 Home Improvement Retailer

Internet #203266655

Model #37778

Store SKU #858788

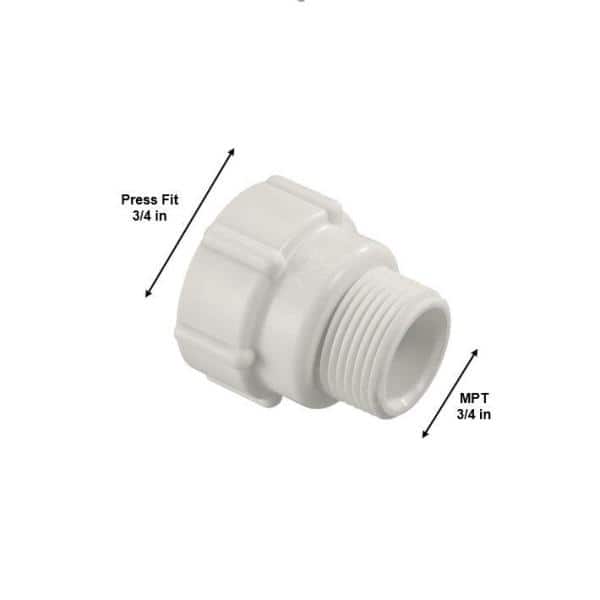

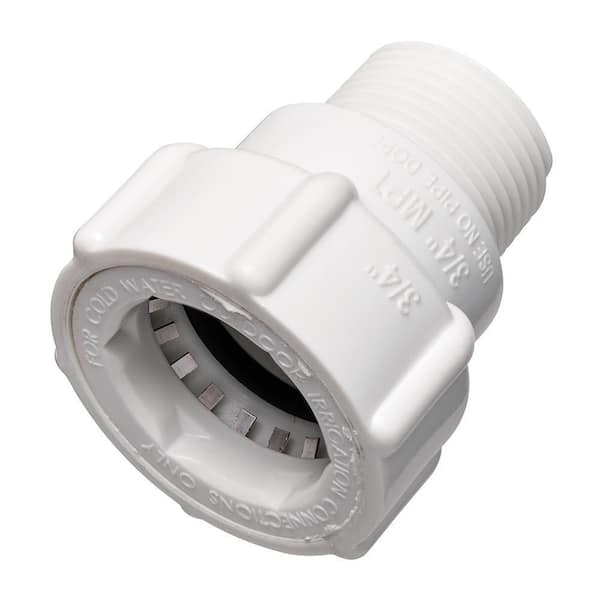

3/4 in. x 3/4 in. PVC-Lock MPT Adapter

  • PVC-Lock fitting easily pushes on standard PVC sprinkler pipe
  • Easy to install, push-on fitting for PVC sprinkler systems
  • Saves time, no glue, primer, clamps or drying time required
  • See More Details

Frequently Bought Together

+
+
Price:

Product Overview

PVC-Lock is an easy-to-use fitting. It will save you time and eliminates messy (and toxic) primer and glue. The PVC-Lock fitting easily pushes onto PVC pipe and locks into place.
  • Used to install PVC sprinkler systems
  • Easy-to-Install push-on-fitting
  • Saves time during installation
  • No, glue, primer, clamps, or drying time required
  • For outdoor use and cold water only
  • For irrigation applications only

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar PVC Fittings

current product
3/4 in. x 3/4 in. PVC-Lock MPT Adapter
1 in. PVC-Lock x 1 in. MPT Adapter3/4 in. x 3/4 in. x 1/2 in. FPT PVC-Lock Tee3/4 in. PVC-Lock Tee
BrandOrbitOrbitOrbitOrbit
Name3/4 in. x 3/4 in. PVC-Lock MPT Adapter1 in. PVC-Lock x 1 in. MPT Adapter3/4 in. x 3/4 in. x 1/2 in. FPT PVC-Lock Tee3/4 in. PVC-Lock Tee
Price
Ratings
(7)
(7)
(4)
(6)
Fitting 1 size3/4"1"3/4"3/4"
Fitting or Connector TypeAdapterAdapterTeeTee
Schedule TypeSchedule 40Schedule 40Schedule 40Schedule 40
Pack Size1111
ConnectivityPush FitPush FitPush FitPush Fit
DWVOtherOtherPressurePressure
FeaturesRemovable,Underground UseRemovable,Underground UseRemovable,Underground Rated,Underground UseRemovable,Underground Rated,Underground Use
ApplicationWater SupplyWater SupplyWater SupplyWater Supply
MaterialPVCPVCPVCPVC
View ProductView ProductView ProductView Product

Specifications

Dimensions

Double Fitting Size
3/4" x 3/4"
Fitting 1 size
3/4"
Fitting 2 size
3/4"
Product Length (in.)
2.125

Details

Application
Water Supply
Color Family
White
Color/Finish
White
Compatible Pipe Material
PVC
Connection 1
Press Fit
Connection 2
MHT
Connectivity
Push Fit
DWV
Other
Features
Removable,Underground Use
Fitting or Connector Type
Adapter
Fitting/ Connector Collection
PVC
Material
PVC
Maximum working pressure (psi)
150
Maximum Working Temperature (F)
105
Pack Size
1
Pipe or Fitting Product Type
Fittings & Connectors
Product Weight (lb.)
.0584
Reducing Fitting
No
Returnable
90-Day
Schedule Type
Schedule 40

Warranty / Certifications

Manufacturer Warranty
1

Questions & Answers

3Questions4Answers

Will this product work with saltwater applications?

Asked by DT September 13, 2020
0
Answers

Description says removable. How do you remove it?

Asked by Gene February 25, 2020
2
Answers

there is a tool you can buy, generally located in close proximity to the pvc-lock display. they are pipe-size specific, so get one that matches the locks you are buying. the tool/key is a thin pliable but hard metal band that you shove into the lock....between the teeth of the lock and the pipe. I find it works best if you hold the key tightly around the pipe while advancing it down into the lock. Rotating the key while inserting also helps.

Can this PVC-Lock adapter be used to screw into a new sprinkler valve and then push it onto the vertical 3/4" PVC pipe inlet and outlet to install?

Asked by DonB August 19, 2016
2
Answers

yes, that is how I use them. Works great, just make sure the pipes are even, if not, one the joining union will be slightly off...and it will leak (at least if it is the hi pressure side). Fortunately, if this happens, you can remove the adapter and trim the offending pipe. Sweet!

Customer Reviews

  • 4.8
    out of 7 reviews
  • 100% recommend this product
Filter by:
Showing 1-7 of 7 reviews
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by HomeDepotCustomer
Slid right onto PVC and locked in place, as advertised!
Slid right onto PVC and locked in place, as advertised!
by EasyIsBetter
Because the photos don't show both ends, it was impossible...
Because the photos don't show both ends, it was impossible to know that this was not at all what I needed.
by Kgee
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by HomeDepotCustomer
Worked good...
Worked good
by ARTHUR
easy to use, doesn't leak. works as advertised. can remove and re-install. removal tool a bit ...
easy to use, doesn't leak. works as advertised. can remove and re-install. removal tool a bit tricky to use, but it works if you keep it tight and flush around the pipe.
by NavyERdoc
It works great! It is very sturdy....
It works great! It is very sturdy.
by HomeDepotCustomer
Showing 1-7 of 7 reviews
