4 in. Hard Top Professional Pressure Regulted Spray Head Sprinkler with 15 ft. Adjustable Nozzle

$7.67
  • Spray head with 10 ft to 15 ft spray radius for large-sized lawns
  • Pre-installed pressure regulator ensures optimal performance
  • Durable metal cap is ideal for frequent contact areas
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy

Product Details

About This Product

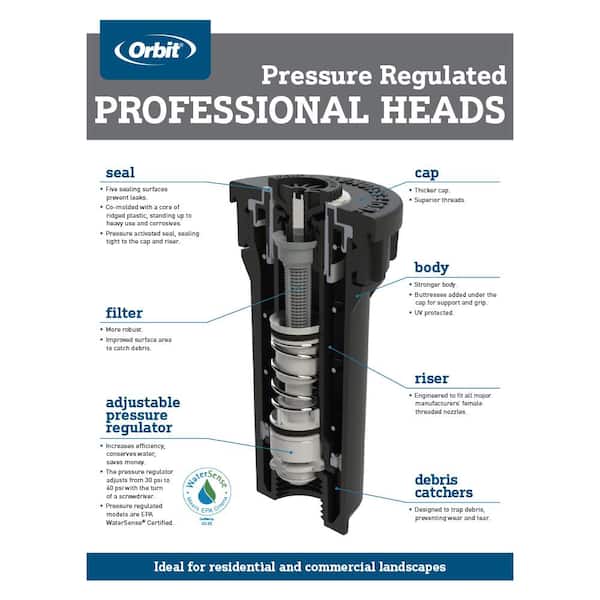

The new Orbit Professional Series 4 in. Spray Head brings rugged elegance to the irrigation market. It is ideal for use in residential and commercial landscapes and handles the most intricately designed, high maintenance areas with ease. Professional Series 15 ft. Adjustable Pattern Nozzle provides uniform coverage and long lasting performance. There are two seals on the cap, a radial seal and a face seal. There are two more seals on the riser making leaks a thing of the past. Durable Metal Cap is ideal for yards bordering sidewalks and driveways where frequent contact with tires or lawn equipment are common. A pre-installed pressure regulator delivers a constant 30 psi the precise pressure at which spray nozzles operate best. Delivers even and consistent water coverage over a nozzle's radius. No over spray or misting due to an over pressurized system.

Highlights

  • 10 ft. to 15 ft. spray radius for large-sized lawns
  • 4 in. pop-up height
  • Pre-installed pressure regulator in each head ensures optimal nozzle performance
  • Prevents misting due to high pressures
  • Pressure regulated to 30 psi
  • Nozzle easily adjusts spray from part to full circle
  • Pressure activated seal, seals tight to the cap and stem
  • Strong, fortified cap with superior threads
  • Surface area of the filter has been improved and strengthened
  • Body has added buttresses under the cap for better grip
  • Return Policy

Product Information

Internet # 314166142

Model # 80308

Store SKU # 1005619591

Additional Resources

Shop All Orbit

Specifications

Dimensions: H 6.0 in, W 2.25 in, D 2.25 in

Dimensions

Inlet Size (in.)

0.5

Product Depth (in.)

2.25 in

Product Height (in.)

6.0 in

Product Width (in.)

2.25 in

Details

Color Family

Blacks

Features

Adjustable, Pressure Regulating

Head Material

Plastic

Inlet Type

Female

Irrigation System Component

Sprinkler

Material

Plastic

Maximum Coverage Area (sq ft.)

30

Maximum Gallons Per Minute

2.4

Maximum Rotation (Degrees)

360

Maximum Spray Distance (ft.)

15

Minimum Spray Distance (ft.)

10

Mounting

Portable

Nozzle Material

Plastic

Pack Size

1

Package Quantity

1

Pressure Rating

80

Returnable

90-Day

Riser

Riser Required

Sprinkler Angle Maximum (Degrees)

25

Sprinkler Angle Minimum (Degrees)

10

Sprinkler Head Material

Plastic

Sprinkler Head Spray Pattern

Adjustable

Sprinkler Head Type

Shrub

Sprinkler Location

Above ground

Sprinkler Type

Fixed

Thread Type

female

Warranty / Certifications

Manufacturer Warranty

5

Questions & Answers

7Questions
caret
Q:Is there an indicator for the starting direction and the ending direction? If I want a quarter circle, what directions is it spraying? Say I want it spraying from North clockwise around to East. What on the head should point North and what East?
by|Nov 9, 2023
0 Answer
Answer This Question
caret
Q:Nowhere in the product description does it say that this is an adjustable spray arc (i.e. 0 to 360 degrees. Also, the product description does not say if the pressure can be adjusted from 30 to 40 psi like model 80361. Is it a "professional" spray head?
by|Jul 18, 2023
1 Answer
Answer This Question

A:  The pressure regulator can be adjusted from 30 to 40 psi by inserting a screwdriver at the bottom of the head and turning counter-clockwise until you hear it click into place. The nozzle spray can also easily be adjusted from partial to full circle.

by|Jul 18, 2023
    caret
    Q:could I hang this upside down from the frame of a greenhouse? Thanks.
    by|Jun 13, 2023
    1 Answer
    Answer This Question

    A:  Yes, you can hang it upside down but depending on your water pressure, it may have some trouble closing.

    by|Jun 15, 2023
      caret
      Q:How do you adjust the pattern down to smaller arc?
      by|Apr 30, 2022
      2 Answers
      Answer This Question

      A:  You can adjust the pattern by rotating the top of the sprinkler head clockwise and counterclockwise.

      by|Jul 2, 2023
        1 found this answer helpful

        A:  I believe you just turn the screw in the middle of the riser.

        by|Jul 2, 2023
        1 found this answer helpful
