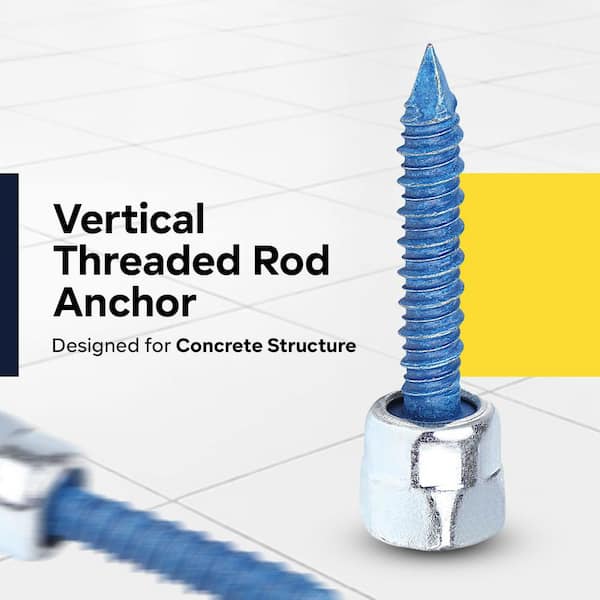

5/16 in. x 1-3/4 in. Vertical Rod Anchor Super Screw with 1/4 in. Threaded Rod Fitting for Concrete (25-Pack)
- Coarse threads ensure solid grip into concrete
- Ultra-sturdy construction offers reliable use
- 1/4 in. female fitting provides secure anchoring
- View More Details
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Ask about this product
Get an answer now with AI
AI-generated from the text of manufacturer documentation. To verify or get additional information, please contact The Home Depot customer service.
Product Details
About This Product

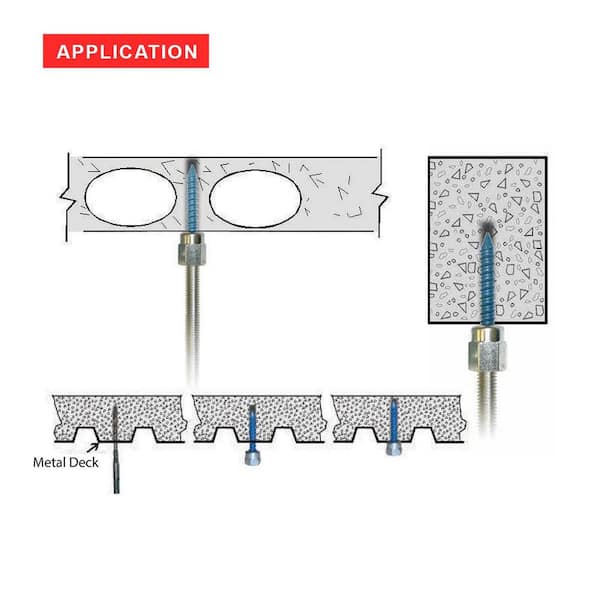

This Sammys 8058957 Rod Hanger provides a secure anchor for threaded rods with its 1/4 in. female fitting on the screw head. The coarse threads of this fastener grip solidly into the concrete and secure a tight connection between the rod and the concrete base. It is a godsend for all your overhead or on the ground concrete construction needs. Ultra-sturdy, highly durable and easy to use, it is the ideal choice for hanging sprinklers, pipes, electrical fixtures and HVAC equipment to cast in place concrete, precast concrete and open web joist.
Highlights
- Vertical application: for all your vertical mount concrete structures
- Better choice: more economical and time efficient than traditional methods
- Specification: screw length 1-3/4 in./screw diameter 5/16 in./rod fitting diameter 1/4 in.
- Durable: case-hardened, heat-treated steel structure with zinc coating, for ultimate quality and corrosion resistance, excellent for use in high stress environment
- Easy 2 step process: pre-drill 1/4 in. pilot hole and drive Sammys anchor
- Reduce over torque and screw failure: use compatible Sammys #14 black nut driver #8113910
- Compliance: complies to NFPA 13 and NEC requirements
- Return Policy
- California residentssee Prop 65 WARNINGS
Product Information
Specifications
Dimensions
Anchor Diameter (in.) | 5/16" |
|---|---|
Anchor Length (in.) | 1.75 |
Details
Drive Style | Nail |
|---|---|
Fastener Material | Carbon Steel |
Fastener Plating | Uncoated |
Fastener Type | Threaded Rod Hangers |
Fastening Base Material | Brick, Cinder Block, Concrete |
Features | No Additional Features |
Interior/Exterior | Exterior, Interior |
Maximum Weight Capacity (lb.) | 2400 |
Measurement System | Inches |
Package Quantity | 25 |
Returnable | 90-Day |
Warranty / Certifications
Manufacturer Warranty | 1 Year |
|---|
