Model # FV-11VQC5

Internet #203762026

Panasonic WhisperSense 110 CFM Ceiling Humidity and Motion Sensing Exhaust Bath Fan with Timer, ENERGY STAR*
0885170048072

Panasonic

WhisperSense 110 CFM Ceiling Humidity and Motion Sensing Exhaust Bath Fan with Timer, ENERGY STAR*

  • Dual adapter fits 4 in. and 6 in. ducts
  • Easy to install
  • UL listed for tub and shower enclosures
Was  $162.17
$14595 /each

Save $16.22 (10%)

Save up to 10% Off Select Panasonic Bath Fans!
Promotion Details
Price Valid : 04/03/2018 - 07/02/2018
Save up to 10% Off Select Panasonic Bath Fans!
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Installation Options

Product Overview

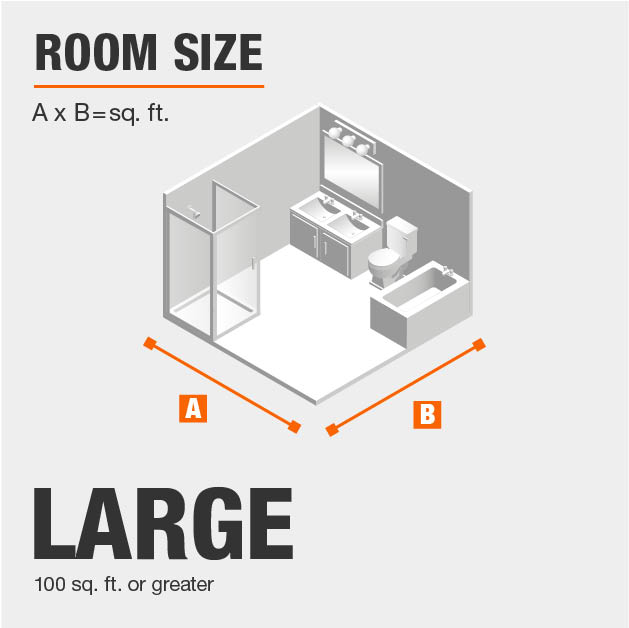

Room Size
Sones Level
CFM
duct size
energy star
housing width
Housing length
  • Dual adapter fits 4 in. and 6 in. ducts
  • Easy to install
  • UL listed for tub and shower enclosures
The Panasonic WhisperSense Motion Sensing Bath Fan is ultra quiet, energy efficient and easy to install. This single speed ventilation fan is enabled by motion or humidity with variable sensitivity. It will run from 30 seconds to 1 hour after motion ceases, and the unit is coated in rust-proof paint to maintain a clean, new look.
  • New dual adaptor for 4 in. or 6 in. ducts
  • Superior performance and quiet operation at 1/4 in. of water gauge
  • Totally enclosed condenser motor for long life—rated for 30,000 hours continuous run
  • Easy installation (double hanger bar system)
  • UL listed for tub/shower enclosure when used with a GFCI branch circuit wire
  • Thermal fuse protection
  • ASHRAE 62.2, LEED for homes, ENERGY STAR IAP, CA Title24, EarthCraft and WA ventilation code compliant
  • Rustproof paint treatment on galvanized housing
  • Built-in damper to prevent backdraft

Product Overview

  • Dual adapter fits 4 in. and 6 in. ducts
  • Easy to install
  • UL listed for tub and shower enclosures
Model #: FV-11VQC5
Internet #: 203762026

The Panasonic WhisperSense Motion Sensing Bath Fan is ultra quiet, energy efficient and easy to install. This single speed ventilation fan is enabled by motion or humidity with variable sensitivity. It will run from 30 seconds to 1 hour after motion ceases, and the unit is coated in rust-proof paint to maintain a clean, new look.

  • New dual adaptor for 4 in. or 6 in. ducts
  • Superior performance and quiet operation at 1/4 in. of water gauge
  • Totally enclosed condenser motor for long life—rated for 30,000 hours continuous run
  • Easy installation (double hanger bar system)
  • UL listed for tub/shower enclosure when used with a GFCI branch circuit wire
  • Thermal fuse protection
  • ASHRAE 62.2, LEED for homes, ENERGY STAR IAP, CA Title24, EarthCraft and WA ventilation code compliant
  • Rustproof paint treatment on galvanized housing
  • Built-in damper to prevent backdraft

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Customers Also Compared These

Price
Was $134.80
$121.32 /each
Save $13.48 (10%)
Was $162.17
$145.95 /each
Save $16.22 (10%)
$190.85 /each
Was $237.24
$213.52 /each
Save $23.72 (10%)
Name WhisperCeiling 110 CFM Ceiling Exhaust Bath Fan, ENERGY STAR* WhisperSense 110 CFM Ceiling Humidity and Motion Sensing Exhaust Bath Fan with Timer, ENERGY STAR* Whisper Green Select 50/80/110 CFM Ceiling Exhaust Bath Fan with LED Light, ENERGY STAR Deluxe 80 CFM Humidity and Motion Sensor Ceiling Bathroom Exhaust Fan, Energy Star with Light
Brand Panasonic Panasonic Panasonic Panasonic
Ratings (338) (27) (55) (3)
Housing Length (in.) 10.25 10.25 10.25 10.25
Maximum Room Size (sq. ft.) 110 110 110 80
Housing Width (in.) 10.25 10.25 10.25 10.25
Features No Additional Features Humidity Sensing,Motion Sensing,Timer Adjustable Fan Speed,Light,Light Humidity Sensing,Light,Motion Sensing,Nightlight,Timer
View Product View Product View Product View Product

Specifications

Dimensions

Housing Length (in.)
10.25
Housing Width (in.)
10.25
Maximum Room Size (sq. ft.)
110
Product Height (in.)
8.37
Product Length (in.)
13
Product Width (in.)
13

Details

Air Volume (CFM)
110
Amperage (amps)
0.22
Color/Finish
White
Duct Compatible Sizes
4 or 6 in
Fan Sound Level (Sones)
0.3
Features
Humidity Sensing,Motion Sensing,Timer
Grill Shape
Square
Housing Material
Galvanized Steel
Included
No Additional Items Included
Installation Type
Ceiling
Mount Type
Surface Mount
Product Weight (lb.)
10.60 lb
Returnable
90-Day
Room Size
Large Room Fan
Voltage (volts)
120/60

Warranty / Certifications

Certifications and Listings
1-UL Listed,CSA Certified,HVI Certified
Manufacturer Warranty
3 year warranty

Specifications

Dimensions

Housing Length (in.)
10.25
Housing Width (in.)
10.25
Maximum Room Size (sq. ft.)
110
Product Height (in.)
8.37
Product Length (in.)
13
Product Width (in.)
13

Details

Air Volume (CFM)
110
Amperage (amps)
0.22
Color/Finish
White
Duct Compatible Sizes
4 or 6 in
Fan Sound Level (Sones)
0.3
Features
Humidity Sensing,Motion Sensing,Timer
Grill Shape
Square
Housing Material
Galvanized Steel
Included
No Additional Items Included
Installation Type
Ceiling
Mount Type
Surface Mount
Product Weight (lb.)
10.60 lb
Returnable
90-Day
Room Size
Large Room Fan
Voltage (volts)
120/60

Warranty / Certifications

Certifications and Listings
1-UL Listed,CSA Certified,HVI Certified
Manufacturer Warranty
3 year warranty

Questions & Answers

Can this be installed with no access from above?

Can this be installed with no access from above?
Asked by: Confused
No. You need the wiring from “above” and will also need to run the exhaust line to an acceptable gable vent or eave vent.
Answered by: Fancy2018
Date published: 2018-05-10

How do I turn off the motion sensor? I only want the humidity sensor to turn on the fan.

How do I turn off the motion sensor? I only want the humidity sensor to turn on the fan.
Asked by: nathan2c
I do not believe you cannot turn off the motion sensor. Even though the emotion sensor has a "zero" time setting, the fan will still go on when motion is detected but, that zero time setting will only enable the fan to go on for less than one minute. I did not connect mine to a wall switch, so I set the motion to a very short cycle. I have read of some individuals indicating that you could tape over the sensor or leave in its shipping packing in place and just leave tucked up. I did not try that so i can't say, plus you should check for any safety/electrical issues if you follow that route. If you hook to a wall switch, problem solved. Also, if you have someone install and you wish to vent to the eve, make sure the installer points the exhaust to the eve. motion in the hall and air circulation will set off the sensor.
Answered by: Sarslim
Date published: 2018-01-28

Switch or no switch?

Can this unit be installed also with a wall switch or is it only designed to be operated via the motion sensor?
Asked by: Mark
It can be installed either way. I used a switch because the circuit the old fan was on had a switch. I can see that it can easily be installed without a switch as well. Its a matter of trust on whether you trust the motion sensor and humidity sensor to work properly all the time.
Answered by: Brian
Date published: 2018-04-30

How the sensor activate if the switch is off, or need a second switch

Asked by: Gus
For the model that has the humidity and motion sensor (no heater), there is only one set of power lines to hook up to this fan, so a second switch would do nothing. You can have one switch to turn on the fan OR you can just leave it on all the time and have the motion sensing and humidity sensing automatically turn itself on.
Answered by: Brian
Date published: 2018-04-30
  • y_2018, m_5, d_20, h_4CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.8
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_10
  • loc_, sid_203762026, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 121ms
  • QUESTIONS, PRODUCT

Customer Reviews

WhisperSense 110 CFM Ceiling Humidity and Motion Sensing Exhaust Bath Fan with Timer, ENERGY STAR* is rated 4.0 out of 5 by 27.
Rated 3 out of 5 by from Made for new construction installation ONLY. This fan has a lip all the way around it and that l... Made for new construction installation ONLY. This fan has a lip all the way around it and that lip is meant to go between the joist and the sheet rock. It was nice that they give you a template to cut a hole in the sheet rock, but you can't insert the fan into that hole from below because the exhaust port goes a couple of inches wider than the lip. I used a hammer to pound the lip between the sheet rock and joist after installing from above, but it wouldn't go that far in. My old fan and sheet rock hole was right against the joist, so I couldn't just put the hole 3/4" to the size of the joist because it was already against the joist. Once I installed it, it runs quietly and is seems to do an adequate job. It is quiet. The sensor does NOT seem to emit any light that I could see when the lights were off.
Date published: 2018-04-30
Rated 3 out of 5 by from not bad... Better off with the FV-05-11VKS1 same features but with a night light and variable speed for $50 less. Not as quiet as advertised, more like 3 sones than 0.3 sones. Going to return it.
Date published: 2018-03-13
Rated 5 out of 5 by from Quiet, easy to install and looks sleek! ... Quiet, easy to install and looks sleek!
Date published: 2018-01-30
Rated 5 out of 5 by from 5 Star Review Rating provided by a verified purchaser
Date published: 2018-02-07
Rated 1 out of 5 by from Bought two fans for 2 bathrooms. Both were installed by a professional contractor. One fan never ... Bought two fans for 2 bathrooms. Both were installed by a professional contractor. One fan never turned off. It suppose to turn off after 10 min ( programmed) after vacating bathroom or end of the shower and humidity getting less than 50%. Another fan was turning off for a week and now also not turning off. I called Panasonic. It goes on and on with recordings and there is no option for Fans to choose. I gave up and went on website to chat. No support, but gave me this number for ventilation product repair 866-292-7992. It is always busy. I am still thinking what options do I have beside returning them to Home Depot. I already threw the packaging.
Date published: 2017-02-03
Rated 4 out of 5 by from Quiet and efficient This is the second unit we... Quiet and efficient This is the second unit we have installed in recent renovations.
Date published: 2017-08-01
Rated 5 out of 5 by from Very quiet, you will love this. I use this in the kitchen away from the stove to cut down on household odors and cigarette smoke. The sensor works flawlessly, and the timer is a nice touch also. How loud is this fan? These fans use modern technology to make a fan just about as quiet as I think it can be. When I was in the attic and connected the power to it I had to double check the electric as I could not hear it running from above. In the kitchen it is quieter by far than my range hood, and leaving it on for extended periods of time does not annoy anyone. Buy one and you will not regret it. Running the ductwork is 75% of the job, the fan was easy to install.
Date published: 2016-04-19
Rated 5 out of 5 by from Perfect for those who don't touch switches Quiet, well made, easy to install. The motion sensor is a plus and can calibrated for time on. Would be even better with a light
Date published: 2014-02-18
