Internet #203762030

Model #FV-11VHL2

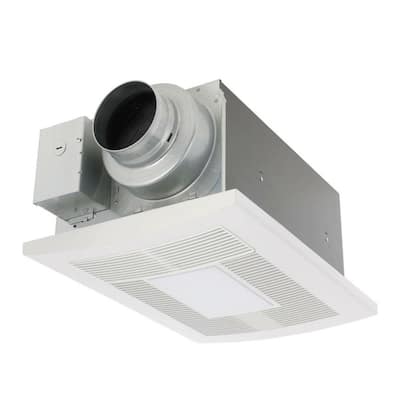

WhisperWarm Lite 110 CFM Ceiling Exhaust Fan with Light and Heater, Quiet, Energy Efficient and Easy to Install

  • Operates quietly
  • Energy efficient AC condenser motors
  • Easy to install
  • See More Details

Frequently Bought Together

Product Overview

Room Size
Sones Level
CFM
Duct Size
Heater
Housing Width
Housing Length
The WhisperWarm Lite 110 CFM Ceiling Exhaust Fan features a durable 1400-Watt stainless steel sheathed heating element offering you a fast 1-minute warm up time. A totally enclosed condenser motor is rated for 30,000 hours continuous run for a long life. The lighted model includes 2-13W Energy Star rated self-ballasted GU24 CFL lamps and a 4W night light. The lighting offers 75 Lumens per watt with a color temperature of 3500 Kelvin and the lamps are rated for 10,000 hours average life at 3 hours per start. The fan has a built-in damper to prevent back drafts. Add this fan to your room for optimal heat and ventilation.
  • Sound: very quiet at 0.7 sone at 110 CFM
  • Construction: rustproof paint treatment over galvanized housing and a 7 3/4 in. depth profile that fits in 2 in. x 8 in. construction
  • Installation: easy to install utilizing 4 in. duct; heater requires minimum 20 Amp dedicated circuit and should be installed no more than 8 ft from floor to ceiling for optimum performance; this fan is not intended for installation over a tub/shower enclosure
  • Safety: thermal fuse protection on motor and 3-level safety device for heater
  • Warranty: 3-year warranty on motor and parts
  • Click here to learn more about Eco Options and Energy Efficiency

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Bath Fans

WhisperWarm 110 CFM Ceiling Exhaust Bath Fan with Heater, Quiet, Energy Efficient and Easy to Install
current product
WhisperWarm Lite 110 CFM Ceiling Exhaust Fan with Light and Heater, Quiet, Energy Efficient and Easy to Install
QT Series Very Quiet 110 CFM Ceiling Bathroom Exhaust Fan with Heater, Light and Night Light
BrandPanasonicPanasonicBroan-NuTone
NameWhisperWarm 110 CFM Ceiling Exhaust Bath Fan with Heater, Quiet, Energy Efficient and Easy to InstallWhisperWarm Lite 110 CFM Ceiling Exhaust Fan with Light and Heater, Quiet, Energy Efficient and Easy to InstallQT Series Very Quiet 110 CFM Ceiling Bathroom Exhaust Fan with Heater, Light and Night Light
Price
Add to Cart to See Price
Add to Cart to See Price
$33699
Ratings
(281)
(449)
(47)
Air Volume (CFM)110110110
Fan Sound Level (Sones)0.60.70.9
Housing Width (in.)11.2511.2511.325
Housing Length (in.)161617.625
Maximum Room Size (sq. ft.)110110100
FeaturesHeaterHeater,Light,NightlightHeater,Light,Nightlight
Installation TypeCeilingCeilingCeiling
Grill ShapeRectangleRectangleRectangle
Mount TypeSurface MountSurface MountRecessed
View ProductView ProductView Product

Specifications

Dimensions

Housing Length (in.)
16
Housing Width (in.)
11.25
Product Height (in.)
9.87
Product Length (in.)
18.11
Product Width (in.)
14

Details

Air Volume (CFM)
110
Amperage (amps)
0.25
Area Heated (Sq. Ft.)
110
Color/Finish
White
Duct Compatible Sizes
4 in
Fan Sound Level (Sones)
0.7
Features
Heater,Light,Nightlight
Grill Shape
Rectangle
Housing Material
Galvanized Steel
Included
Light Bulb,Nightlight Bulb
Installation Type
Ceiling
Light Bulb Base Code
GU24
Light Bulb Type Allowed
CFL
Light Bulb Type Included
CFL
Maximum Light Bulb Wattage (watts)
13
Maximum Room Size (sq. ft.)
110
Mount Type
Surface Mount
Number of Bulbs Required
3
Product Weight (lb.)
17.80 lb
Returnable
180-Day
Room Size
Large Room Fan
Voltage (volts)
120/60
Wattage (watts)
30.7

Warranty / Certifications

Certifications and Listings
HVI Certified,UL Listed
Manufacturer Warranty
3 year warranty

Questions & Answers

139Questions38Answers

Can we connect only exhaust fan and light bulbs , but not connect heater as we don't need to use ...

Asked by Venkat October 9, 2020
6
Answers

Heater requires dedicated 20 amp circuit. Separate from fan and lights. No heater should be no problem as it was wired separately,

Does it come with the wall switch plate, or do I purchase that separately?

Asked by SM9815 September 22, 2020
5
Answers

No it doesn't, and there are different ways to wire it. I recommend reading the manual and discussing the options with your electrician. We have the night light on its own switch, heater on a mechanical timer and the light and fan together on a third. You could also put the fan on its own timer to keep it going after a shower.

How do you get ahold of Panasonic to Replace Faulty Heater?

Asked by Ae August 25, 2020
2
Answers

I had mine professionally installed and I have a separate switch to operate the heater.

does this meet specifications for continues exhaust fan

Asked by PanasonicFan August 8, 2020
3
Answers

I do not know. It is very quiet, and does a good job of moving the air. I think you would have to contact Panasonic to get an answer. I do not know what the specifications for continues running are. The specifications in the information from Home Depot do say the motor is rated for 30,000 hours of continues run time. I calculate that to be around 3.43 years.

I have 12/3 romex coming from a double pole 20amp service. Is this enough to run this whole unit?

Asked by Wendy July 29, 2020
3
Answers

fixitdad-I get your point but everything I've read says that 12/3 running from the panel needs a 20A two pole breaker so both hots can be on different poles so as not to overload the neutral. Your thoughts?

Are the lamp bases GU24 or GU35? The description says GU24 and the instructions say GU35.

Asked by CC June 25, 2020
1
Answer

Not sure what that is in the manual but ours is the US standard E26.

Number of Lumens the light will produce on the high side? 13 watts

Asked by Mac May 19, 2020
4
Answers

Equivalent to a traditional 40 watt bulb.

How many zones?

Asked by MSJ May 3, 2020
5
Answers

Please ask your question differently. Zones? One, the bathroom. pretty sure that's not what you mean? If you are asking how much air movement, It's awesome. It does a very large bath for me.

What is the dimension of hole needed in the ceiling? I have an existing unit that's round and 13i...

Asked by ll April 6, 2020
1
Answer

The unit requires 18” long x 11-7/8” wide x 7-3/4” high. First thing you need to do is open up old unit and see if you have the 7-3/4” height available. This unit is designed to fit into 8” floor joists see dimension 7-3/4” height your other dimensions will work. The 13” diameter hole is 1-1/8” wider than your 11-7/8” width. The grill will most likely cover this extra 5/8” each side when you center unit in 8” joists. Hope this helps but check for 7-3/4” height without this working you have the wrong exhaust fan unit.

Does this unit come with a switch?

Asked by Gerry March 24, 2020
8
Answers

This unit does not come with a switch. You will need to purchase this separate.

WhisperWarm Lite 110 CFM Ceiling Exhaust Fan with Light and Heater, Quiet, Energy Efficient and Easy to Install - page 2

Customer Reviews

  • 449 Customer Reviews
  • 4.7 out of 5 stars overall
94% of customers recommended.
Overall Ratings
5star-icon(343)
4star-icon(81)
3star-icon(9)
2star-icon(1)
1star-icon(15)
Sort By:
Very well made, quiet and nice design. Looked at several other brands and couldn't find anything ...
Very well made, quiet and nice design. Looked at several other brands and couldn't find anything close.
Was this helpful?
2
0
Awesome fan and heater. Very happy customer... only recommendation would be for bulbs to be LED.
Awesome fan and heater. Very happy customer... only recommendation would be for bulbs to be LED.
Was this helpful?
2
0
This unit does everything I wanted, everything works perfectly. I did seriously underestimate the...
This unit does everything I wanted, everything works perfectly. I did seriously underestimate the difficulty in installing and wiring it though. I had no attic access so I had to add some header pieces through the hole in the ceiling for the unit between the joists to attach it to from underneath. I also didn't realize I would need to run a separate 20 amp circuit just to power it. So if you buy this, go in with your eyes open. A new separate 20 amp circuit in your panel, 12/2 cable from the panel to the switch, which is a special switch, and two 12/3 cables from the switch to the unit. I have attached a diagram for the wiring.
Was this helpful?
7
0
Nice heater and exhaust fan works great...
Nice heater and exhaust fan works great
Was this helpful?
0
0
Excellent heat and exhaust features. Really heats my bathroom nicely and the exhaust feature work...
Excellent heat and exhaust features. Really heats my bathroom nicely and the exhaust feature works great to dispense steam. Easy replacement of a 40 year old unit. Best price from the Home Depot!
Was this helpful?
0
0
This exhaust bathroom fan, heater, and light is super quiet. I have a small bathroom and I'm gla...
This exhaust bathroom fan, heater, and light is super quiet. I have a small bathroom and I'm glad I went with a higher CFM, I think it dries quicker than a smaller CFM would have. The heater heats the entire (small) bathroom in under 10 minutes. I had it installed with timer switches for both the heater and the exhaust. I am so glad I did. Totally worth the money and I think it's adding to my home's longevity and value.
Was this helpful?
4
0
Very quiet compared to others. Sounds like a quiet wind.
Very quiet compared to others. Sounds like a quiet wind.
Was this helpful?
2
0
Great product. it arrived in one and a half days. Very quiet operation yet powerful enough to do ...
Great product. it arrived in one and a half days. Very quiet operation yet powerful enough to do the job.
Was this helpful?
1
0
Installed it to replace an old NuTone that was loud and inefficient. My customer LOVED how quiet ...
Installed it to replace an old NuTone that was loud and inefficient. My customer LOVED how quiet it is! And the heat function makes virtually no noise, unlike their old one. One issue: it comes with 2 CFL's - one blew out after just 2 days and needed to be replaced.
Was this helpful?
8
0
Outstanding Quality, the noise levels of the fans are all any one could ask for,the heater is gr...
Outstanding Quality, the noise levels of the fans are all any one could ask for,the heater is great! Only improvement needed is the wire connection compartment is undersized have had the unit about a month and love it so far
Was this helpful?
1
0
Review this Product
Share your thoughts with other customers
