1-1/4 in. Steel Ball Bearing Sliding Door Roller Assembly, Northrup
- Steel rollers for long lasting durable use
- Ball bearing roller for a smooth sliding action
- Grooved edges allow easy gliding over a raised edge
- View More Details
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Ask about this product
Get an answer now with AI
AI-generated from the text of manufacturer documentation. To verify or get additional information, please contact The Home Depot customer service.
Product Details
About This Product

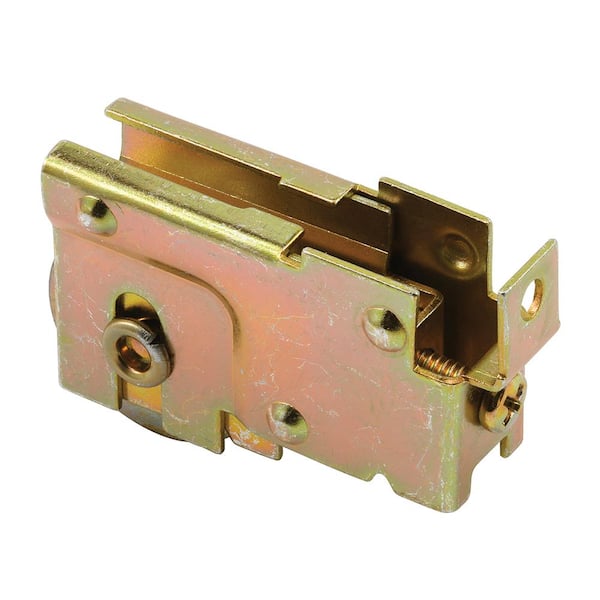

This is a F-tab patio door roller assembly with a 1-1/4 inch concave steel ball bearing roller. When the corner screw passes through the F-tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together. The housing is 11/16 inch wide and 1-3/16 inch tall with a dimple width of 7/8 inch used by Northrup and a variety of sliding patio door manufacturers.
Highlights
- Used by Northrup and a variety of sliding patio door manufacturers
- When the corner screw passes through the F-tab the assembly is captured by the side stile and bottom rail as the screw draws the two sides together
- 1-1/4 inch diameter concave ball bearing roller
- Stamped steel housing and steel rollers
- Used on metal framed sliding patio doors
- Easy to install
- A Phillips head screwdriver is required for installation

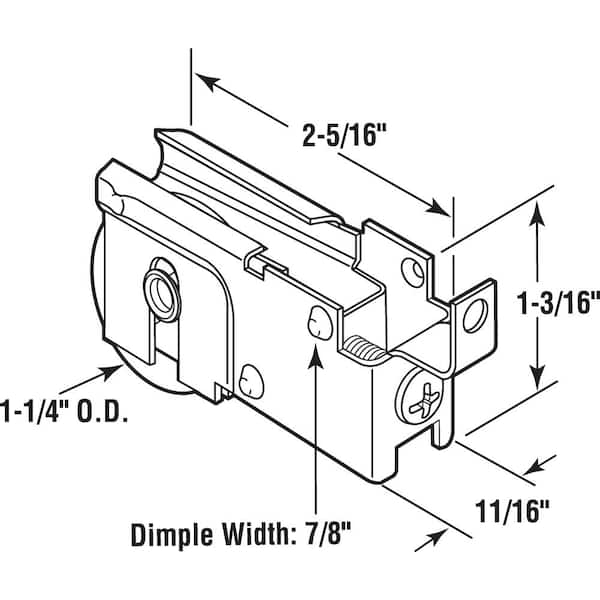

- Please refer to the line art for dimensions and compare with your needs before ordering
- Return Policy
Product Information
Specifications
Details
Builders Hardware Product Type | Door Roller |
|---|---|
Door Type | Patio Door |
Finish | Yellow Zinc |
Hardware Color Family | Metallic |
Material | Metal |
Package Quantity | 1 |
Returnable | 90-Day |
Roller Wheel Diameter' | 1-1/4 in |
Roller Wheel Features | Ball-bearing |
Wheel Material | Metal |
Warranty / Certifications
Manufacturer Warranty | Goods are warranted against manufacturing defects for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse. |
|---|
Questions & Answers
Weather seal
Thank you for your inquiry regarding this item from Prime-Line Products. I am unsure of your comment. What question do you have about weather seal concerning the roller assembly you've posted the comment? You can contact the manufacturer directly with your questions regarding this item, or any other product manufactured by Prime-Line Products by calling their toll free number at (877) 649-9740, or by contacting them by email at info@primeline.net.
primeline model # D-1733
Thank you for your recent inquiry regarding this item from Prime-Line Products. Wheel is nylon construction. For additional questions regarding this item, or any other product manufactured by Prime-Line Products, please call their toll free number at (877) 649-9740, or contact them by email at info@primeline.net
