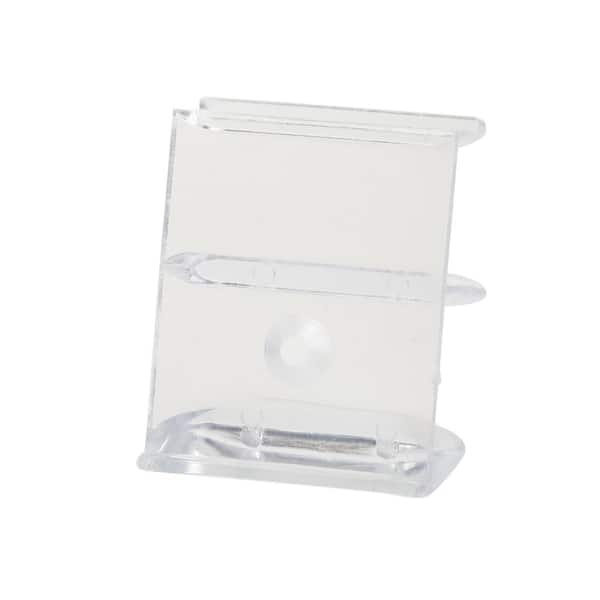

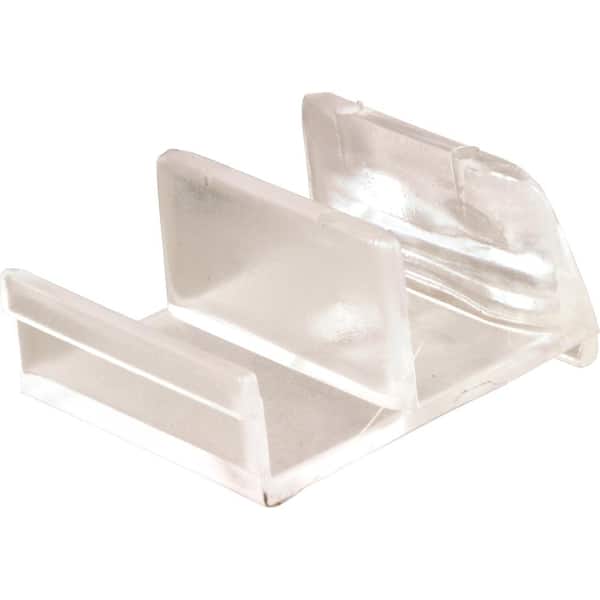

Clear Acrylic Shower Door Bottom Guide, Sterling

$3.93
  • Injected nylon body ensures a smooth, water-resistant surface
  • Ensures suitable alignment for your sliding tub doors
  • Suitable for application on sliding shower door systems
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 30 days of purchase. Read Return Policy
Product Details
Bottom glide that is suitable for use with most shower doors


Compatible with Most Shower Doors

This glide's universal design makes it compatible with most styles of shower doors.

Bottom door glide crafted of clear acrylic


Crafted of Clear Acrylic

Clear acrylic construction makes this bottom door glide unobtrusive to the eye.

Bottom door glide designed for fast and easy installation


Fast and Easy Installation

This clear acrylic glide is fast and easy to install using the included instructions.

About This Product

These shower door bottom guides are constructed of acrylic and come clear in color. The channels feature 9/16 inch wide openings that will allow for use with up to 1/2 inch thick frameless glass panels. Use of these glue-in bottom-mount guides will help keep hanging glass panels aligned in their respective tracks. They are easy to install and are used by Sterling and a variety of tub and shower door manufacturers.

Highlights

  • Used by Sterling as a bottom guide on their frameless glass panels
  • Used with 1/2 inch thick doors
  • Keeps frameless glass panels separated and aligned
  • Clear plastic construction
  • Guides measure 1-1/4 inch wide x 1-5/8 inch depth x 1/2 inch tall walls and fits glass thicknesses of up to 1/2 in
  • Requires clear silicone for installation, not included with item, to be applied as per manufacturer's instructions
  • Thoroughly clean surface area before installation
  • Please refer to the line art for dimensions and compare with your needs before ordering
  • Return Policy

Product Information

Internet # 100133927

Model # M 6111

Store SKU # 489788

Store SO SKU #489788

Specifications

Dimensions: H 5.438 in, W 3.813 in, D 0.875 in

Dimensions

Product Depth (in.)

0.875 in

Product Height (in.)

5.438 in

Product Width (in.)

3.813 in

Details

Builders Hardware Product Type

Window Rollers/Guides

Door Repair Type

Guides

Door Type

Storm

Material

Plastic

Package Quantity

1

Returnable

30-Day

Warranty / Certifications

Manufacturer Warranty

Goods are warranted against defects in manufacturing for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse.

Questions & Answers

5Questions
caret
Q:The instructions say clear silicone (caulk) is required for installation. In what areas it is required? Around the perimeter of the guide? Around the mounting hole?
by|Jul 20, 2022
1 Answer
Answer This Question

A:  Thank you for your inquiry regarding this item from Prime-Line Products. Use your own discretion. The silicone can be used around the inside perimeter to create a bond and form a seal.

by|Jul 20, 2022
    caret
    Q:Does the Independence store have this item
    by|Jul 11, 2018
    3 Answers
    Answer This Question

    A:  Thank you for your recent inquiry regarding this item from Prime-Line Products. Some stores may stock these, but not all of them. For verification, kindly look towards the upper left hand corner of the webpage and verify that you are shopping in a local store. If not, click where it reads “You’re shopping [City Name]” to the right of the Home Depot logo square, then click where it reads “Find Other Stores” in the drop-down menu. Once you’ve landed on the city’s store of choice, click on the orange-colored “Add to Cart” link below the item’s photo, or the “Change Pickup Store” link at the bottom of the gray colored area to the left of your screen. This will open a list of stores in your surrounding area that you can choose from, otherwise, please contact an Associate from your local Home Depot Center, or by contacting the HomeDepot.com Customer Service line at (800) 430-3376 regarding your question. .

    by|Dec 7, 2023
      1 found this answer helpful

      A:  Sorry, but not sure about which Independence store you refer to. Used to live not far from the HomeDepot store in Independence, MO but now am located in Fort Smith, AR. Though I do seem to recall that with some items in the online catalog you can verify whether, or no, that particular item is only available in the online catalog or is also stocked in a given store. In point of fact when I ordered this item it was indeed from the online catalog and I had it shipped to the actual, physical(brick&mortar) store here in Fort Smith since having it shipped to the local store incurred no shipping costs other than me getting into the car and tooling off about 3-4 miles to the store when I rec'd an email(and/or cell-phone text)notification that it had come into the online fulfillment desk at our local HomeDepot store. Seem to recall something like 7-10 business days from the time of order placed online and notification that it was ready for pick-up. Hope this helps some!

      by|May 5, 2023

      A:  Not sure I ordered on Home Depots site.

      by|Dec 29, 2023
      1 found this answer helpful
      caret
      Q:Does this guide come with the screw to attach it to the rail?
      by|Sep 18, 2017
      4 Answers
      Answer This Question

      A:  Yes

      by|May 5, 2023

        A:  Yes, a pointed sheet metal style screw was included.

        by|Dec 7, 2023
          1 found this answer helpful

          A:  Thank you for your inquiry regarding this item from Prime-Line Products. This item comes with 1 SMS #6x3/8" PHIL FLAT ZINC screw. For faster service, be sure to take advantage of the CHAT option located in the lower right-hand corner of your screen, where you can quickly connect to a representative for assistance. Otherwise, you can contact the manufacturer directly with your questions regarding this item, or any other product manufactured by Prime-Line Products by calling their toll free number at (877) 649-9740, or by contacting them by email at info@primeline.net

          by|Oct 27, 2023

            A:  Don't recall whether or not mine did. Though I elected to attach mine with double-sided foam tape(exterior grade). Presumably the exterior grade double-sided foam tape(Scotch brand)has sufficient adhesion to hold something like this item to the bottom rail of a shower stall even given extremes of moisture and temperature encountered in one's shower stall. The main caveats there would be to insure the surface of the aluminum rail is spotlessly clean, and dry, before applying the foam tape. My application is going on at least a good long year and shows no signs of loosening.

            by|Jan 6, 2024
            1 found this answer helpful
            caret
            Q:how does the guide stay in place and not move around. I don't see that it is self-adhesive?
            by|Dec 30, 2015
            6 Answers
            Answer This Question

            A:  Thank you for your inquiry regarding this item from Prime-Line Products. This item includes double-backed adhesive tape and a fastener for a secure, non-moveable installation. For additional questions regarding this item, or any other product manufactured by Prime-Line Products, please call their toll free number at (877) 649-9740, or contact them by email at info@primeline.net

            by|Jul 9, 2022
              4 found this answer helpful

              A:  My unit had a fastening screw provided in the packaging. And there is a predrilled hole in the bottom surface of the door guide--presumably for inserting the included mounting screw so as to fasten it to your existing shower stall's frame. Please note that if your present stall's frame doesn't have a hole for such mounting already present(which mine didn't) then you'll need to do as I did--place door guide in its desired position (with the stall's doors either swung out or removed)--mark the position for drilling the pilot hole for the fastening screw on the bottom rail of the stall enclosure. Then, using a drill bit approximately 1/3-1/2 diameter of the fastening screw, drill your pilot hole in the appropriate part of the stall's frame. You don't want to use a drill bit as wide as the screw since the screw (typical sheet metal fastener type) will sooner or later become too loose. Alternatively you could use double sided mounting tape--provided such is rated fairly well in terms of holding strength, and is rated for wet applications. Or you could use the second sort of mounting option I almost went with--Gorilla brand glue. The main reason I didn't consider double-sided tape is that there was barely sufficient clearance between the bottom of the present doors and the guide's door channels. Adding even a smallish fraction of an inch to this guide's height would've made for doors in my shower enclosure having very restricted freedom of movement. But no matter what sort of adhesive you might use, if such is your mounting choice, take great care to thoroughly clean the appropriate surface of the frame--have that aluminum frame sparkling clean. And absolutely dry as the proverbial sack of sand. Fact is for a similar type of mounting for a bathroom wall fixture(using double-sided tape) I used Comet type cleanser to remove all foreign matter--grime or whatever. Then flushed same surface with water; then wiped it with isopropyl (a.k.a.: rubbing) alcohol using paper towels. Then let surface sit for another 1-2 hours, so as to insure all traces of alcohol evaporated, before finally applying tape or glue. One other caution--let tape, or glue, sit for a good long 24 hours before item is used (or you get any water on it). Such is always the best approach so as to allow whatever type of adhesive to fully "cure". Better yet if you can apply some sort of pressure(clamp or whatever) to the item, whilst the adhesive is "curing", your mounting will likely have a much greater durability. Sorry if I got a bit "long-winded" regarding recommendations but have had a few-too-many instructions for whatever product that were so minimal as to be next to worthless for the average d-i-y type of consumer. Hope this helps!

              by|May 16, 2024
              9 found this answer helpful

              A:  There is a stainless-steel, flat-head Phillips, sheet metal screw included. A hole must be accurately drilled in the lower rail of the correct size so the screw cuts its own thread and fastens the guide. Be wary, the drill could pierce the plastic tub. Alternatively, the guide can be "glued" with a clear waterproof, silicone bath adhesive.

              by|Feb 8, 2019
                1 found this answer helpful

                A:  A screw is included.

                by|May 5, 2023

                  A:  The one bought 7/8/22 had screw but no double sided tape or pad.

                  by|Jul 9, 2022

                    A:  Last ones I bought had self-adhesive on them.

                    by|Oct 23, 2018
                    Showing 1-4 of 5

                    Customer Reviews

                    4.2 out of 5

                    • 4.2 out of 51 reviews
                    • 64% recommend this product
                    Filter by:
                    Showing 1-10 of 51 reviews
                    Weak plastic
                    It's break right after you slide the glass door after installation!!
                    by
                    • Verified Purchase
                    broke almost immediately
                    I bought this item to replace a guide that had broken after several years of use. I installed it, rehung the doors, and went about my business. About two weeks later, while I was taking a shower, the guide spontaneously fractured. Worthless item!
                    by
                      by
                      • Verified Purchase
                      by
                      • Verified Purchase
                      by
                      • Verified Purchase
                      by
                      • Verified Purchase
                      by
                      • Verified Purchase
                      by
                      • Verified Purchase
                      by
                      • Verified Purchase
                      This is exactly as described. It holds my shower doors well and looks nice.
                      by
                      • Verified Purchase
                      Showing 1-10 of 51 reviews
