PR106AAPC 105,000 BTU Heater Electronic Ignition - LP

Product Overview

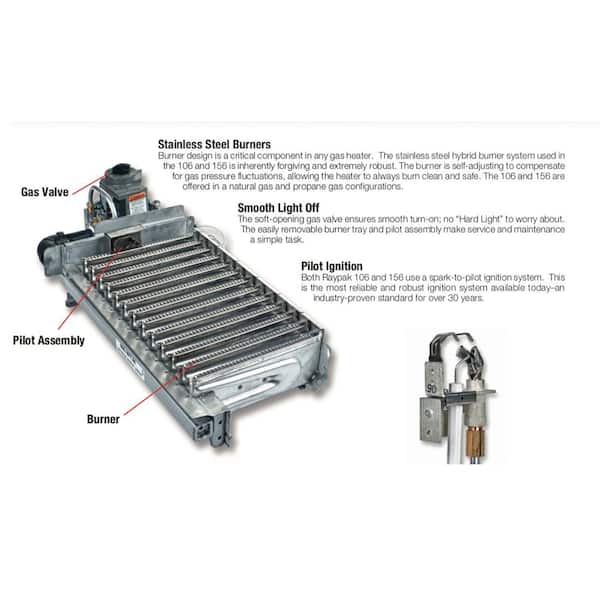

Raypak's Analog Heater is the perfect choice to help get more enjoyment out of your pool. It is a quality heater that features temperature and flow control of the exchanger to minimize condensation. This heater offers Stainless steel burners, and textured powder coat finish. Cabinet and the internals are corrosion and rust resistant; it offers powder coating, polymer headers, and an all copper-fin-tube heat exchanger. Control is an easy to use analog dial and it comes with a 3 ft., 3 prong power cord.
  • Model 14781
  • All-copper-fin-tube heat exchanger
  • Automatic bypass
  • CPVC 2 in. water connections
  • Polymer headers
  • Professional Installer Recommended
  • Features ProTek Shield to protect the heater exchanger
  • Analog Dial Control
  • 1 Year Manufactures Warranty
  • Elevation: 0 - 1999 (feet)
  • California Customers Please Note: South Coast Air Quality Management District ( SCAQMD) Area of Jurisdiction REQUIRES a Low Nox Heater be installed. The following 6 California Counties are affected: Los Angeles, San Bernardino, Ventura, Orange, Riverside, & Kern. Installing a non-compliant heater in these counties will void the manufacturer's warranty and could result in a fine from your local code enforcement.
  • Item cannot be refunded/returned without approval and authorization from Home Depot
  • For Indoor Installation a vent top must be purchased separately
  • Shop our wide selection of Raypak Pool Heaters
  • California residents

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Pool Heaters

current product
PR106AAPC 105,000 BTU Heater Electronic Ignition - LP
PR156AEPC 150,000 BTU Heater Electronic Ignition - LPPR206AENC50 199,500 BTU Natural Gas Electronic Ignition Heater (2000 ft. to 6000 ft. Elevation)PR206AENX51 180,000 BTU Natural Gas Electronic Ignition Heater - Cupro Nickel Exchanger
BrandRaypakRaypakRaypakRaypak
NamePR106AAPC 105,000 BTU Heater Electronic Ignition - LPPR156AEPC 150,000 BTU Heater Electronic Ignition - LPPR206AENC50 199,500 BTU Natural Gas Electronic Ignition Heater (2000 ft. to 6000 ft. Elevation)PR206AENX51 180,000 BTU Natural Gas Electronic Ignition Heater - Cupro Nickel Exchanger
Price
Ratings
(2)
(6)
(1)
(1)
Pool Gallons (approx)10000150002000020000
BTU Rating106000156000206000206000
Fuel TypeLiquid PropaneLiquid PropaneNatural GasNatural Gas
Pool TypeAbove Ground,In GroundIn GroundAbove Ground,In GroundIn Ground
FeaturesNo Additional FeaturesNo Additional FeaturesNo Additional FeaturesNo Additional Features
Ignition TypeContinuous SparkContinuous SparkElectricalContinuous Spark
View ProductView ProductView ProductView Product

Specifications

Dimensions

Product Depth (in.)
24
Product Height (in.)
27.5
Product Width (in.)
12

Details

BTU Rating
106000
Controls
Mechanical
Features
No Additional Features
Fuel Type
Liquid Propane
Heat Exchanger
Copper
Ignition Type
Continuous Spark
Outdoor Living Product Type
Pool Heaters
Pool Gallons (approx)
10000
Pool Type
Above Ground,In Ground
Product Weight (lb.)
85
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
1 year warranty

Questions & Answers

9Questions9Answers

NOT a Question; BUT a Suggestion for Raypak; in the future it would be great if you made one of t...

Asked by RooofTopPigeon October 4, 2020
1
Answer

We will pass this on to Raypak.

Can it be converted to natural gas ?

Asked by Tony August 24, 2020
1
Answer

no, you want to order it that way order 014779

Will this work for a 21’ diameter round pool and how long will it take to heat? Say what temp change per hour?

Asked by Nick August 9, 2020
1
Answer

Proper heater size is based on the time required to heat the pool. So here is the formula Desired water temperature minus average air temperature equals total heat rise. Total heat/rise hours required to heat equals required heater for your pool.

Can this Raypak 105,000 BTU Heater on LP be used in altitudes above 4000 feet?

Asked by Rob June 27, 2020
1
Answer

Part number 014873 is designed for use at 4000-7000 feet

Have a 4400 gallon pool. How long would a regular LP tank last (those used on a BBQ) heating my 1...

Asked by Gardening101 March 3, 2020
1
Answer

please check with your local Propane dealer this tank may not provide the gas pressure required to run this heater See installation guide requirements

Is there an extended warranty available on this heater similar to home appliances?

Asked by Fitz February 22, 2020
1
Answer

The standard warranty is 90 days, but if the unit is registered at www.raypak.com along with proof that it was installed by a properly licensed contractor- the warranty is extended to 2 years from the install date.

How long & how much propane will it take to heat a 10000 gal pool 5 degrees(76to81F), the avg am...

Asked by Vinny December 10, 2019
1
Answer

1 gallon of LP produces 100,000 btu of energy. The Raypack chart shows a 105 model heater on a 700 square ft. pool gains .4 degrees per hour. So to get to an increase of 5 degrees 5 degrees /.4= 12.5 hours. If we round it all up it takes about 13 gallons of gas and 13 hours to get to that temp rise. Keep in mind these are just approximates because of all the things that can extend or shorten the time to heat. Sun/ no sun, wind no wind, rain, water refill

how long will a 10 gal. propane tank last heating a 10,000 gal. pool at 50 to 60 degrees outside.

Asked by tomohawk70 November 13, 2019
1
Answer

that's too small look at using 120 gallon tank

How long will a propane bottol last or will heat the pool befor it rubs out

Asked by Bubbaisbell1 April 14, 2019
1
Answer

not enough information to give you the right answer How many gallons are you heating? What is the outside temperature? What is the pool temp?

Customer Reviews

  • 3.5
    out of 2 reviews
  • 0% recommend this product
Filter by:
Showing 1-2 of 2 reviews
Heats the pool, but is slow to do it, does...
Heats the pool, but is slow to do it, does a better job at maintaining the temp
by Tim
Easy to set up however it ran for one day....
Easy to set up however it ran for one day. Had to get a service tech to come remove debris from the internal thermostat.
by Mark
