Internet #312082230

Model #SFDP1-030-055-42

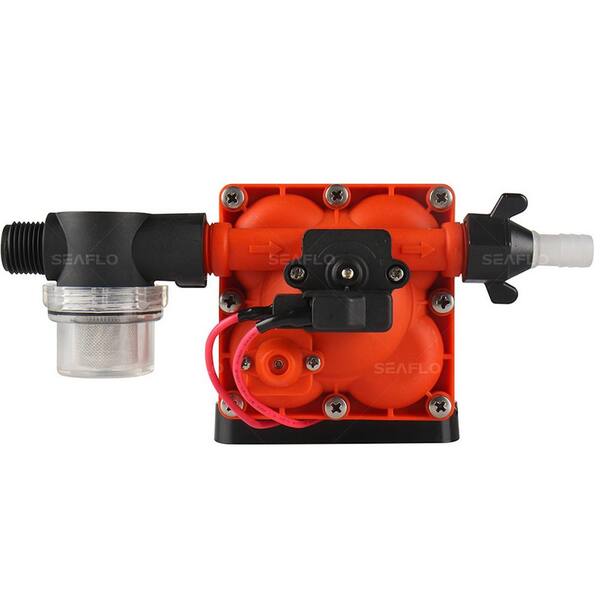

12-Volt 3.0 GPM 0.064 HP Variable Flow Water Pressure Diaphragm Pump

  • Designed for freshwater and saltwater applications
  • Pressure switch enables automatic pump operation
  • Thermally protected 0.064 HP motor ensures safe operation
  • See More Details

Frequently Bought Together

+
+
Price:
$5999

Product Overview

SEAFLO 12-Volt General Purpose 3.0 GPM Automatic-Demand Utility Pump. This general purpose pump can be used for a wide variety of applications. It is designed for Agricultural Spraying, Transferring Liquid Fertilizers, Herbicides, or Pesticides, Fluid Transfer, RV Water Supply, Boat Water Supply, Salt Water Washdown, Remote Cabin Water Supply, Industrial Applications, Draining Water Heaters, Draining Aquariums, Pumping Out Basements, Suctioning Water From Rivers or Streams, Transferring Water to an RV, Pumping Out Stock Tanks or other Liquid Transfer Applications. The built-in pressure switch turns the pump on-and-off automatically. If you install a valve, or hose on the outlet side, when you open the valve the pump automatically turns on. When you close the valve the pump will automatically turn off. This pump features a Variable Flow Technology which is an internal bypass feature which allows the pump to provide the amount of water you demand without cycling. No accumulator tank necessary. This is a diaphragm pump, which makes it superior to an impeller pump because there is no impeller to wear out or fail. Also this greatly improves the pumps ability to reach higher pressure levels. The inlet and outlet ports are 1/2 in. threaded male fittings. This pump is Self-Priming, run-dry safe, and has very quiet operation and low power draw. The pump also comes with an intake strainer, and two 1/2 in. barbed fittings.
  • California residents
  • Ignition protected

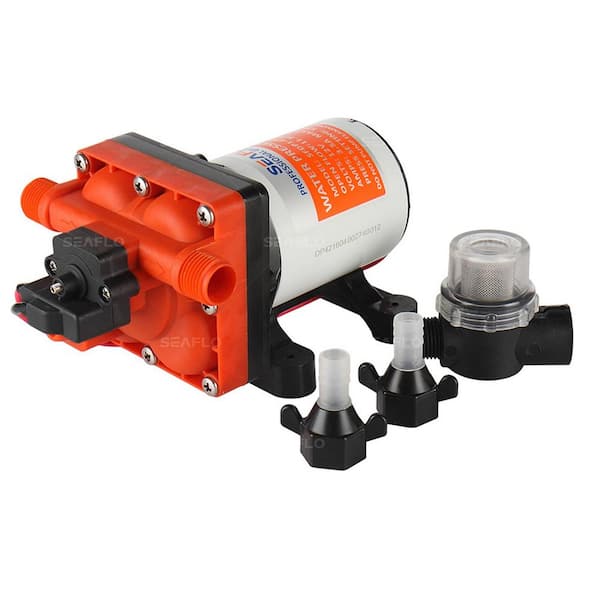

  • 2 barbed fittings and 1 strainer included
  • Valve: EPDM
  • Diaphragm: Santoprene
  • Can be used for salt and fresh water
  • For use with non-flammable liquids
  • 16 AWG
  • Control type: adjustable pressure switch factory set at 45 psi
  • 4 chamber positive displacement diaphragm pump
  • Pump has a built-in check valve which prevents backflow and allows for city water connection if being used in an RV water supply application
  • Housing material: nylon/polypropylene
  • Capable of supplying multiple fixtures
  • Rubber mounting base dampens vibration, no rust and industry standard mounting pattern
  • 9 vertical feet suction lift
  • Features an internal bypass system that lessens the need for an accumulator tank and prevents low-flow cycling
  • Pump is not submersible
  • Intermittent duty
  • Comes with a 4-year warranty and is CSA Listed
  • Click here for more information on Electronic Recycling Programs

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Transfer Pumps

1.2 GPM 0.4 HP Water Pressure Diaphragm Pump
current product
12-Volt 3.0 GPM 0.064 HP Variable Flow Water Pressure Diaphragm Pump
12-Volt 3.0 GPM 0.064 HP Water Pressure Pump12-Volt 0.12 HP 5.5 GPM Water Pressure Diaphragm Pump
BrandSEAFLOSEAFLOSEAFLOSEAFLO
Name1.2 GPM 0.4 HP Water Pressure Diaphragm Pump12-Volt 3.0 GPM 0.064 HP Variable Flow Water Pressure Diaphragm Pump12-Volt 3.0 GPM 0.064 HP Water Pressure Pump12-Volt 0.12 HP 5.5 GPM Water Pressure Diaphragm Pump
Price
$2999
/box
$5999
/box
$5999
/box
$10999
/box
Ratings
(6)
(14)
(4)
(6)
Power TypeElectricElectricElectricElectric
Voltage12v12v12v12v
Discharge Flow @ 0 ft. (gallons/hour)180180180330
Power Type RequiredDCDCDCDC
View ProductView ProductView ProductView Product

Specifications

Dimensions

Product Depth (in.)
7.97 in
Product Height (in.)
4.37 in
Product Width (in.)
5.63 in

Details

Amperage (amps)
4
Cord Length (ft.)
1
Discharge Flow @ 0 ft. (gallons/hour)
180
Discharge Flow @ 0 ft. (gallons/min)
3
Discharge Flow @ 10 ft. (gallons/hour)
180
Discharge Flow @ 10 ft. (gallons/min)
3
Features
Run-Dry Capable,Self-Priming,Thermal Overload Protection
Head Pressure (ft.)
120
Housing Material
Metal
Included
Mounting Bracket,Pump Hookup
Inlet Connection
Threaded male
Maximum Discharge Flow (gallons/hour)
180
Maximum Horsepower (hp)
0.064
Maximum Pressure (psi)
55
Maximum Working Temperature (F)
140
Minimum working temperature (F)
33
Outlet Connection
Threaded male
Pack Size
1
Power Type
Electric
Power Type Required
DC
Product Weight (lb.)
5.05 lb
Pump Switch Type
Diaphragm,Pressure
Returnable
180-Day
Vertical Lift (ft.)
120
Voltage
12v

Warranty / Certifications

Certifications and Listings
CSA Certified,CSA Listed,CSA-US Certified,ISO Certified,USCG Certified
Manufacturer Warranty
4 Year Warranty

Questions & Answers

9Questions8Answers

Will pump stop when nozzle is shut off?

Asked by Urmot November 14, 2020
1
Answer

Good morning. That is correct. The pump is a demand pressure pump. So a couple things happen. The water flow will start/stop with the opening/closing of a spigot, faucet, nozzle, etc. The pump has a pressure range. once it reaches the set pressure the pump will automatically shut down. The pump will continue to run after the water demand is shut off only to build to the set pressure then it will turn off.

What is the head pressure and gpms on the thing is there a Diagram? Has anyone used this pump to ...

Asked by Randall July 6, 2020
1
Answer

This pump can push vertically over 100 feet. It is self priming up to 6 feet. This is a 4 chamber diaphragm pump. Yes this can be used to increase head pressure on your outside faucet.

What is the lifting capacity of this pump

Asked by KLUGMO July 1, 2020
1
Answer

6 foot head is what the pump is capable of.

Can thispump be used for a fine mist?

Asked by handyman101 June 28, 2020
1
Answer

Yes it can, it depends on the sprayer head you use. We also advise activating the bypass on the pump for misting applications.

Can this pump be mounted and used on a mobile sprayer

Asked by Dozerdon June 13, 2020
1
Answer

Absolutely. You just want to make sure that your demand (total) isnt below 1 gpm. You do have the capability of bypass but not to an extreme. You will obviously also need a 12 volt power source.

How is it powered?

Asked by RR May 19, 2020
2
Answers

12v ...works well in a 12-volt RV application.

Just like the unanswered first question: what size of garden hose connection is on both sides? ...

Asked by larry May 5, 2020
1
Answer

I believe it's a 1/2" standard fitting, but it comes with adapters for different sizes.

Is there a manual on/off switch? Where is the battery connection?

Asked by Me April 21, 2020
0
Answers

What is the size of the white male plastic part where the hose connects to??

Asked by fluffy April 21, 2020
0
Answers

Customer Reviews

  • 14 Customer Reviews
  • 4.3 out of 5 stars overall
100% of customers recommended.
Overall Ratings
5star-icon(10)
4star-icon(1)
3star-icon(0)
2star-icon(2)
1star-icon(1)
Sort By:
Worked as stated. No problems. Wonderful water pump!
Worked as stated. No problems. Wonderful water pump!
Was this helpful?
0
0
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
Was this helpful?
0
0
Was this helpful?
0
0
It worked real well. The only thing I didn’t like I wished it had regular hose connections on it ...
It worked real well. The only thing I didn’t like I wished it had regular hose connections on it I had to purchase fittings separate to make it work with a regular hose.
Was this helpful?
0
0
It was advertised as a continuous use pump. It is...
It was advertised as a continuous use pump. It is not. Short time only or it overheats and shuts down.
Was this helpful?
0
0
Good water flow and quite. Using it to water plants...
Good water flow and quite. Using it to water plants with rain water and spray bug killers. Filter becomes plugged often due to dirty rain water, filter could be bigger for my purpose. Other than that it is a good small pump.
Was this helpful?
0
0
Excellent smaller pump...
Excellent smaller pump
Was this helpful?
0
0
Whisper quiet, works exactly as advertised...
Whisper quiet, works exactly as advertised
Was this helpful?
0
0
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
Was this helpful?
0
0
Not enough information about how it is used, the specifications...
Not enough information about how it is used, the specifications for its applications, or how to set it up. You basically have to have pretty advanced knowledge about water transfer systems in order to know what this pump is for. I bought it because the way it's advertised, it seemed like the product I needed, but when I got it, there was no way I could use this product for my project. So, I would just really read into this thing or call the company before you buy it (because the Home Depot employees don't know anything, so don't ask them)
